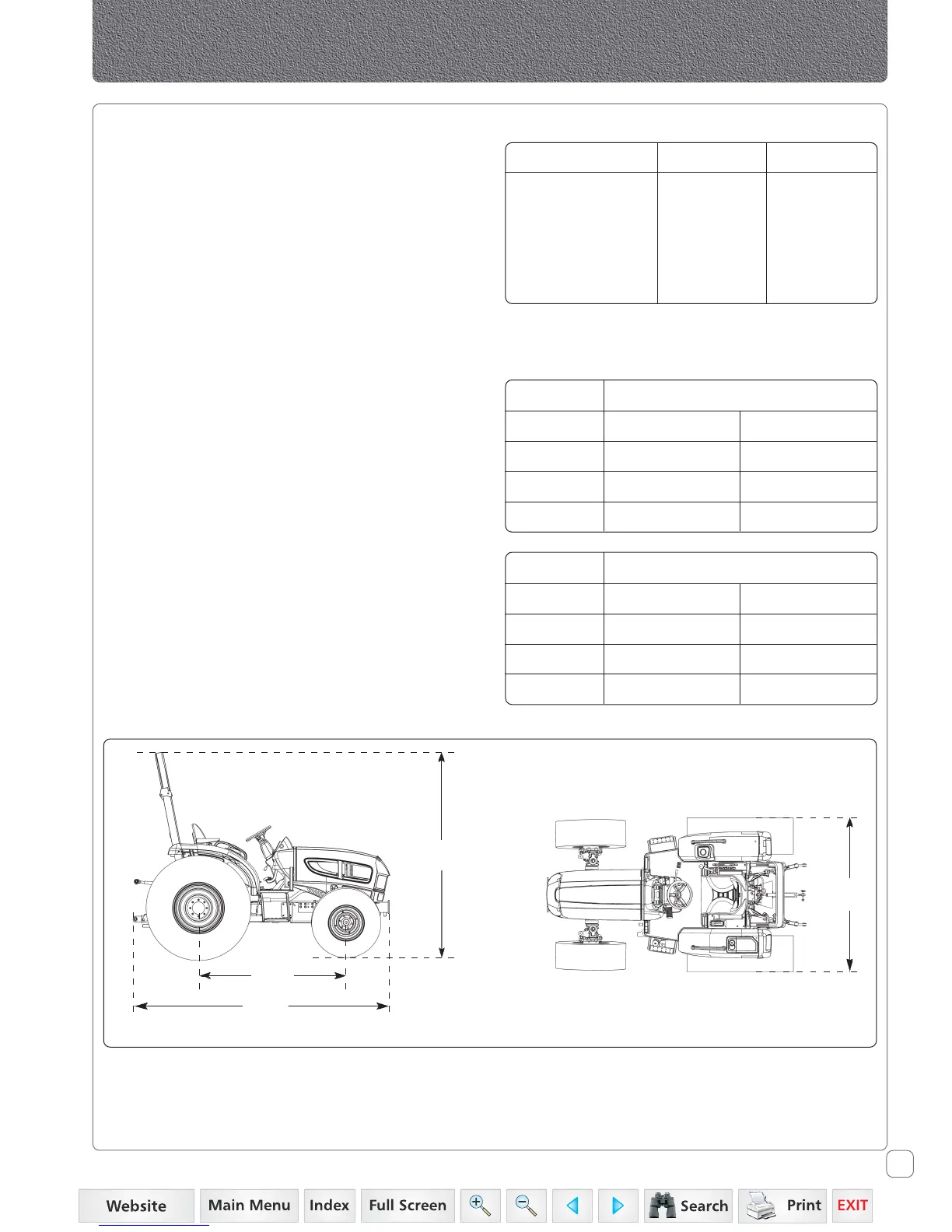

35 Series-HST, Model - 3535, 4035, 4535 & 5035
Specifications
MAHINDRA – 5035 HST
DIMENSIONS
Length overall : 128.9 in.
Width overall : 75.4 in.
Height overall upto ROPS : 99.2 in.
Wheel base : 75 in.
TREAD ADJUSTMENT
Front ( Industrial ) : 51.6 in. to 57 in.
Rear ( Industrial ) : 56.3 in. to 59.8 in.
Front ( Ag ) : 53 in. to 55.4 in.
Rear ( Ag ) : 56.3 in. to 59.8 in.
OPERATING WEIGHT (APPROX.)
Basic tractor including fuel, oil coolant, hydraulic system,
3 point linkage, transmission, P.T.O., lighting and
standard wheel sizes.
WEIGHT DISTRIBUTION *
(when measured without optional weights fitted)
Front weight : 1837 lbs.
Rear weight : 2783 lbs.
Total weight : 4620 lbs.
TIRES
Front ( Industrial ) : 14 x 17.5, 6 Ply
Rear ( Industrial ) : 19.5L x 24, 8 Ply
Front ( Ag ) : 9.5 x 20, 6 Ply
Rear ( Ag ) : 16.9 x 24, 6 Ply
TURNING RADIUS (MINIMUM)
With brakes : 124 in.
Without brakes : 144 in.
Note : Roll over protection structure is standard fitment on all tractors.
Note : Specifications and design subject to change without notice.
Dimensions are in inch and based on Industrial 14 x 17.5 front tires and 19.5L x 24 rear tires.
* Manufacturer's estimate under standard condition and subject to change without prior notice.
75.4
Note :- One US gallon = 4 quarts.
75
128.9
99.2
TIRE 19.5L x 24 Industrial
Gear Forward Reverse
Low 3.3 3.3
Medium 8.2 8.2
High 15.9 15.9
CAPACITIES US Gallons Quarts
Fuel Tank 11.36 45.44
Cooling System 1.85 7.4
Engine Oil 2 8.03
Transmission 10.03 40.12
Front Axle 2.24 8.96
SPEEDS :
Speed chart in mph.
TIRE 16.9 x 24 Ag
Gear Forward Reverse
Low 3.69 3.69
Medium 8.12 8.12
High 17.65 17.65
