35 Series-HST, Model - 3535, 4035, 4535 & 5035
40
Controls

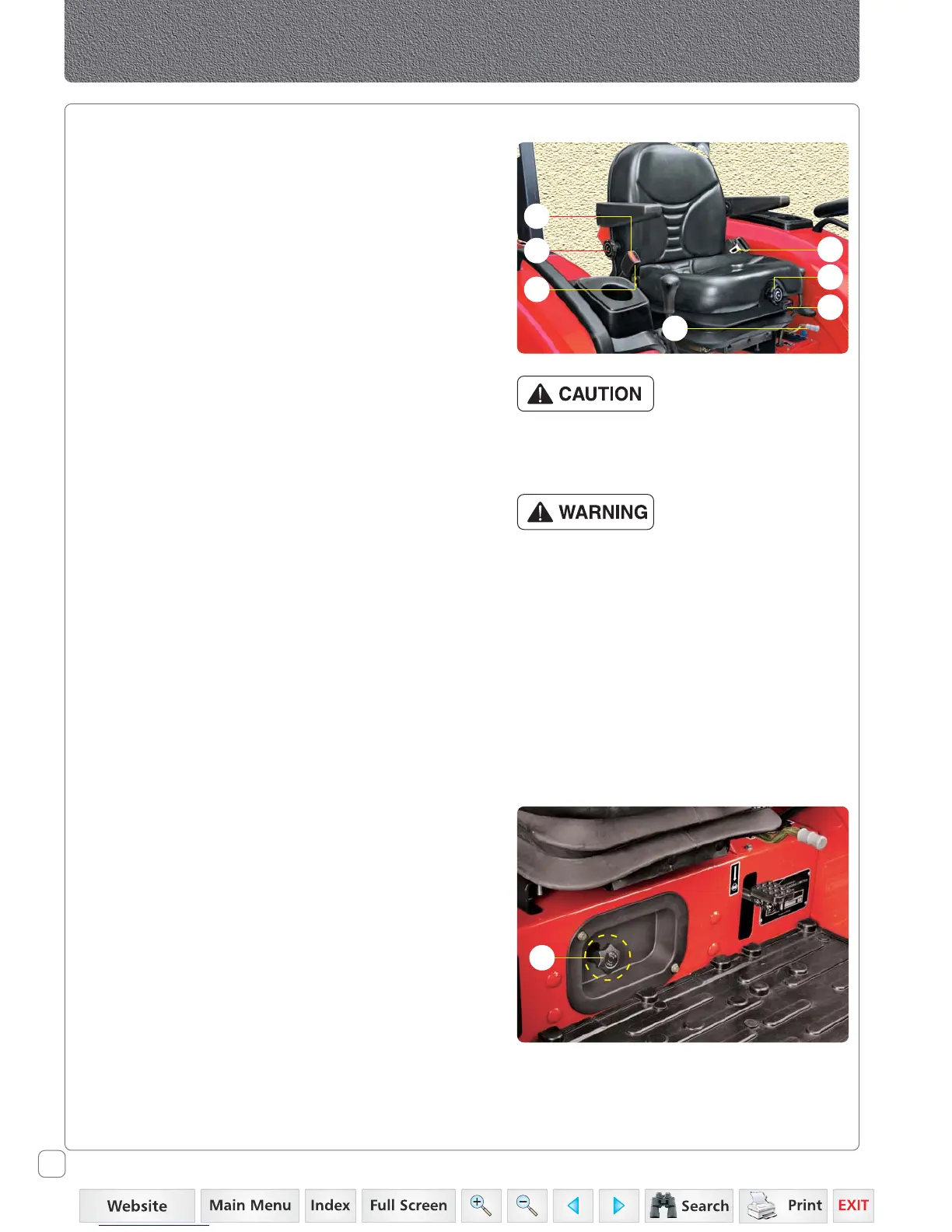

Operator Seat
The operator seat can be adjusted for position, tilt and
weight of operator. These adjustments are to be done prior
to starting the engine.
Adjusting Seat Position
1. Sit on the operator seat.
2. Push the lever (D) upwards and slide seat forward or
rearward to desired position.
3. Release Lever to lock seat in position. Ensure that all
controls can be accessed easily.
Weight Adjustment
To achieve optimum seat suspension, turn the knob (B) till
the weight indicator indicates your approximate weight on
indicator (C).
Tilt Adjustment
To achieve optimum seat tilt, turn the knob (F) till the
desired angle of tilt is achieved.
Using Seat belt
Use a seat belt when you operate with Roll over protective
structure (ROPS) to minimise chance of injury from an
accident such as an overturn.
Fasten Seat belt
1. Pull belt end (A) across operator lap.
2. Install tab into buckle (E). A click will be heard when the
tab locks into the buckle.
Release Seat belt
Press red button (G). The seat belt will automatically retract.
Slow Fast Valve Control Knob
3 Point Linkages drops faster when a heavy implement is
attached. Adjust Slow / Fast Valve Knob (H) so that it is slow
enough to be safe and prevent damage.
Turn the Slow / Fast Valve Knob, located on rear platform
besides differential lock pedal, clockwise to slow
rockshaft drop.
This knob is also called implement lock. When the knob is
fully tightened in, implement will not lower down even if
position control lever is fully down. Use implement lock
while transporting implement.
Attempting to adjust the seat while driving the
tractor may cause the operator to lose control
of the tractor
Do not use seat belt if operating without
a ROPS or ROPS in the folded position.
A
B
C
D
F
E
G
H
