C-89
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
A. AIR CLEANER
All air entering the engine must pass through the
aircleaner before entering the inlet manifold and
cylinders. To provide an engine with clean and adequate
volume of air, is of most Importance. The entire system
is so designed that even in extreme dusty conditions
and low Engine R.P.M. the engine is not starved of dust
free air. In Engine Dry Type Air Cleaner is placed
horizontal just infront of radiator.
The curved blades on the periphery of precleaner shield
direct the entering air to take a spiral path on entering
the body tube due to this motion of air, bigger impurity
particles are thrown away rapidly from the body tube
and after passing from hopper slot, they fall in the dust
collector the precleaned air then passes through paper
filter element before entering the engine.
A safety cartridge provided within the boundaries of
paper element. This can filter particles upto 120µ and
is of use only in case of any leakage or rupture of paper
element and also paper element is removed for cleaning
an Air cleaner indicator is provided on dash board it
will glow in case the filter element gets jammed.
NOTE: Never remove cartridge when paper
element is removed for cleaning.

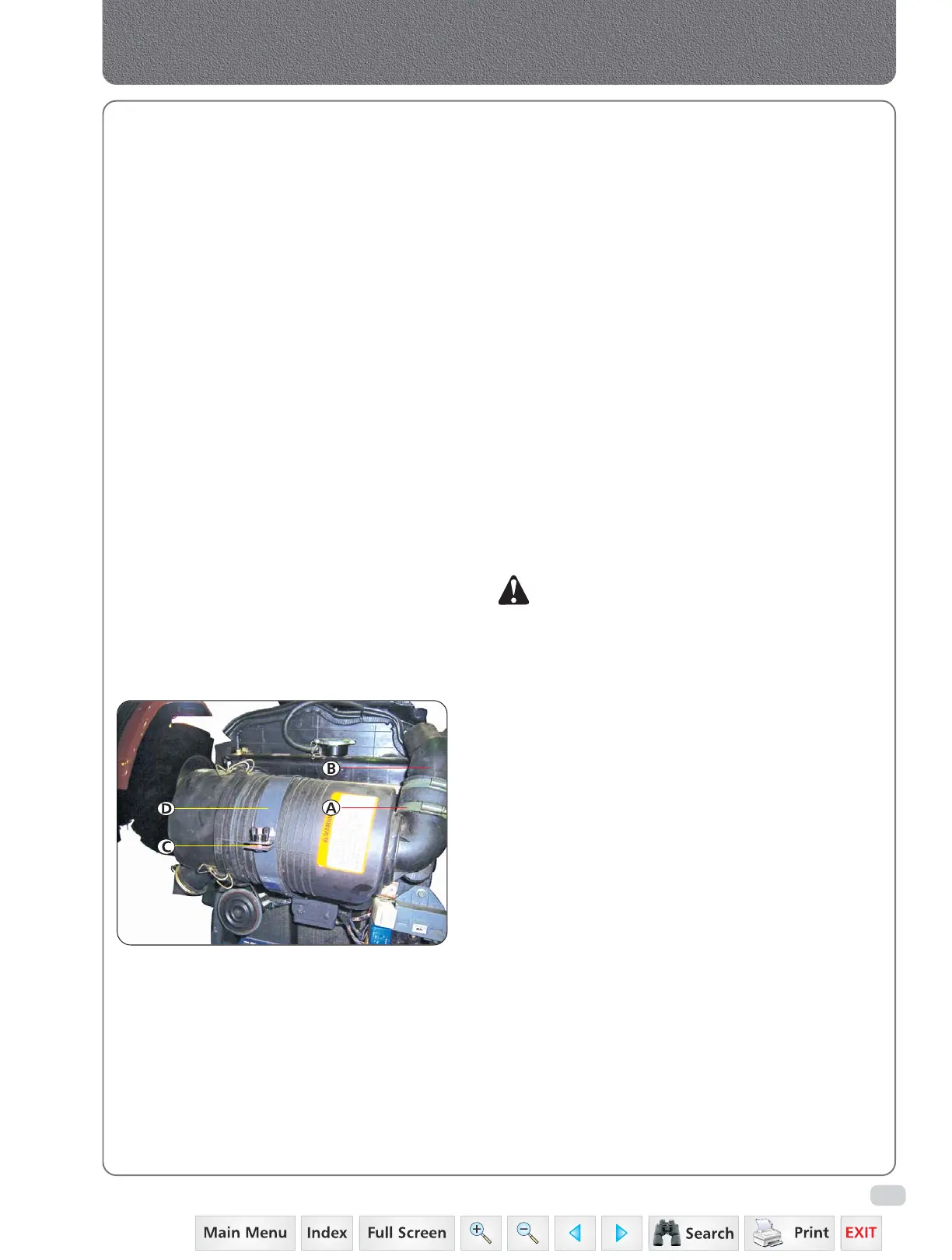

B. REMOVAL & INSTALLATION INSTRUCTIONS
For Air cleaner Replacement Proceed as follows:
1. Open the hood.
2. Loosen the hose clips (A) of hose (B).
3. Loosen the wing nut (C) & turn the clamp (D).
4. Disconnect the Air Cleaner Clog Indicator Sensor
wiring connections.
5. Take out air cleaner.
Air Cleaner
To Next Page
