D-4
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Clutch

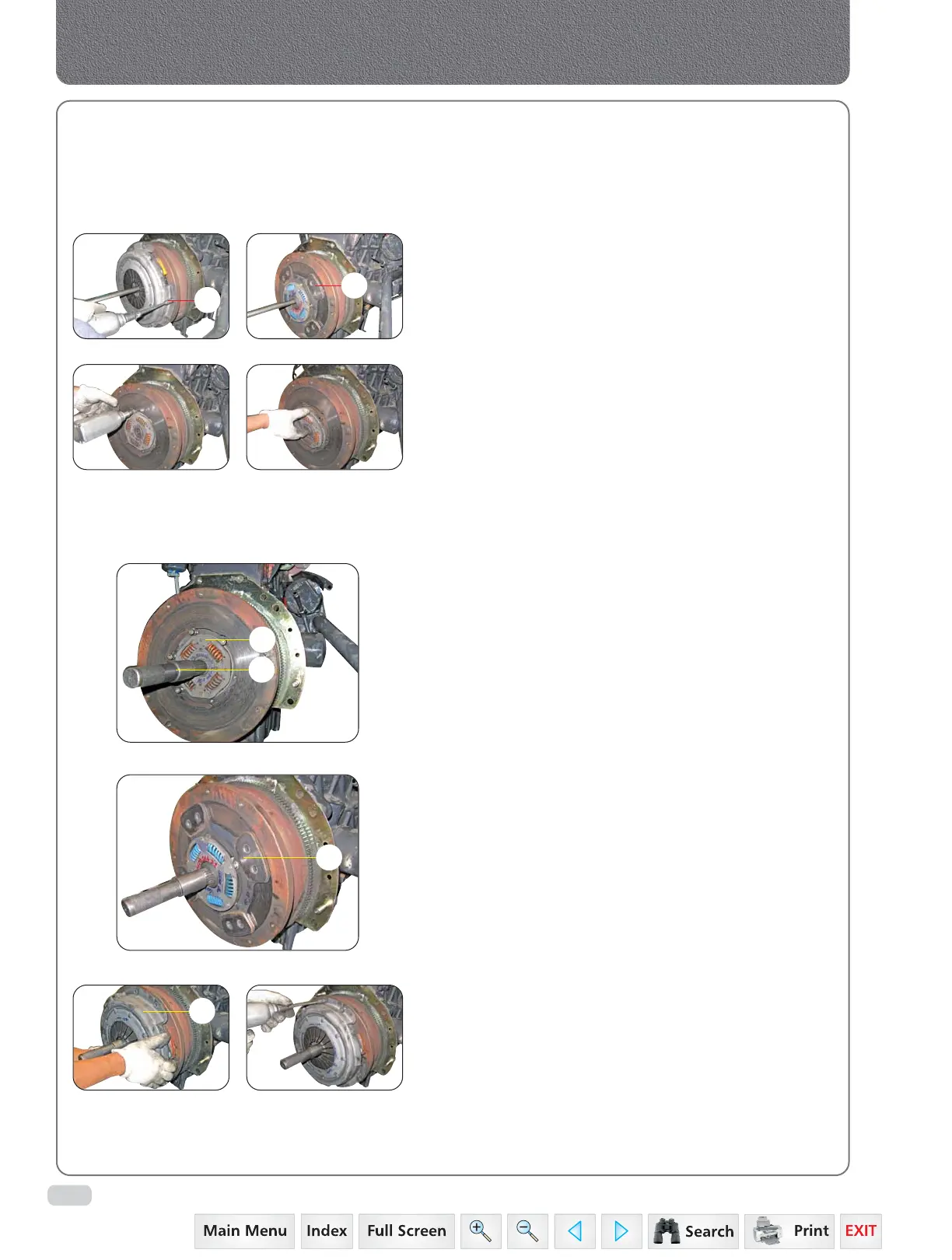

3. Slide the clutch plate (E).
A
B
C
D
E
F
REFITMENT
1. Place a guide shaft tool (C) during assembly of
PTO damper.
2. Fit PTO damper (D).
4. Remove PTO clutch damper.
2. REMOVAL & REFITMENT OF CLUTCH FROM
TRACTOR
REMOVAL
1. Separate front axle with engine from clutch
housing.
2. Remove clutch assembly by loosening bolts (A)
and separate clutch assembly.
3. Remove main clutch plate (B).
4. Fit the clutch assembly (F) and tighten mounting
bolts and remove guide shaft tool (C).
