E-9
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission
FORWARD / REVERSE

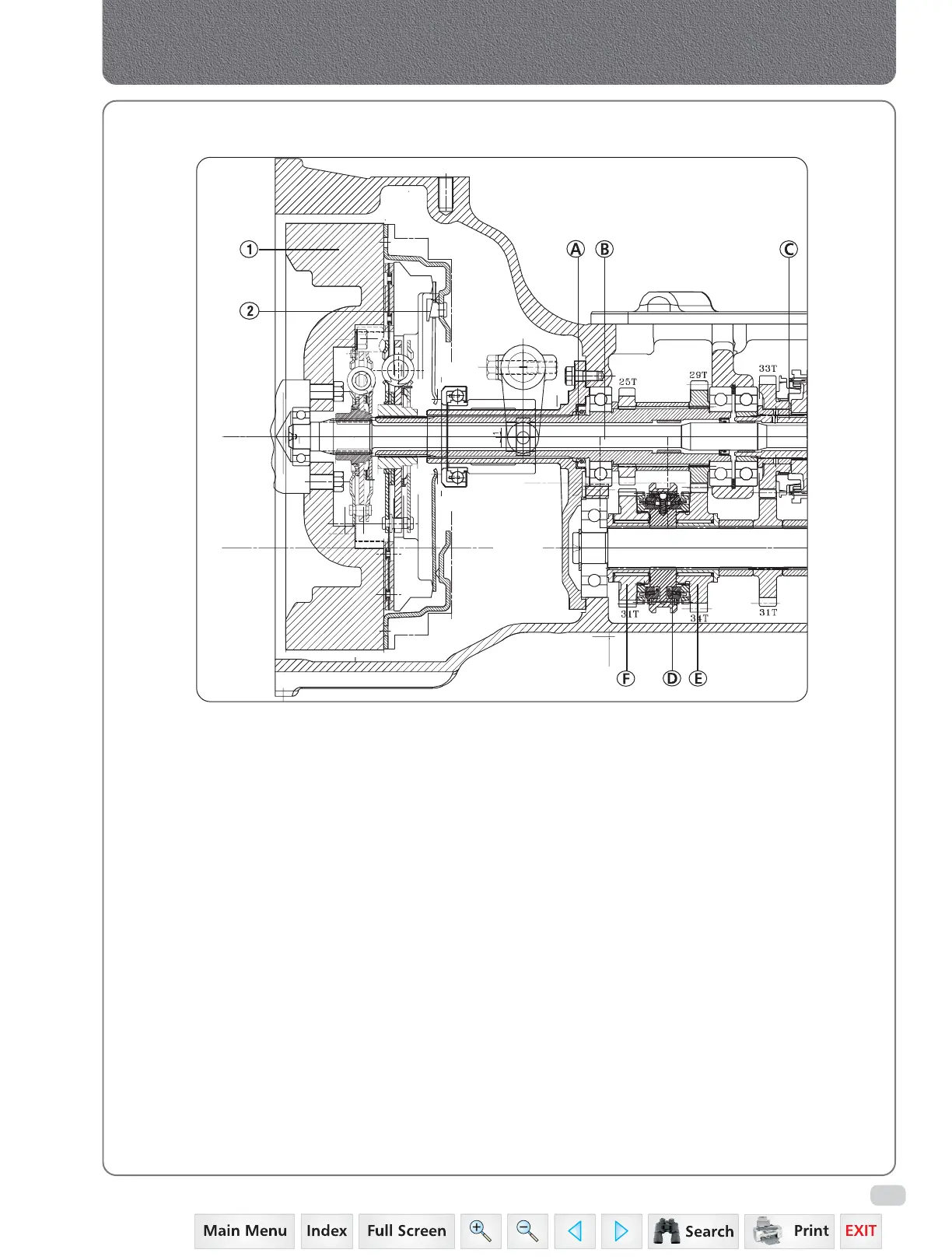

Major Components
1. Engine Flywheel
2. Clutch Assembly
A. Transmission Drive Shaft
B. P.T.O. Drive Shaft
C. Speed Driving Shaft
D. Forward - Reverse Synchronizer
E. Forward Gear - Driven
F. Reverse Gear - Driven
