Mahindra 5035 Service Manual

A-17
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
General
A
C
B

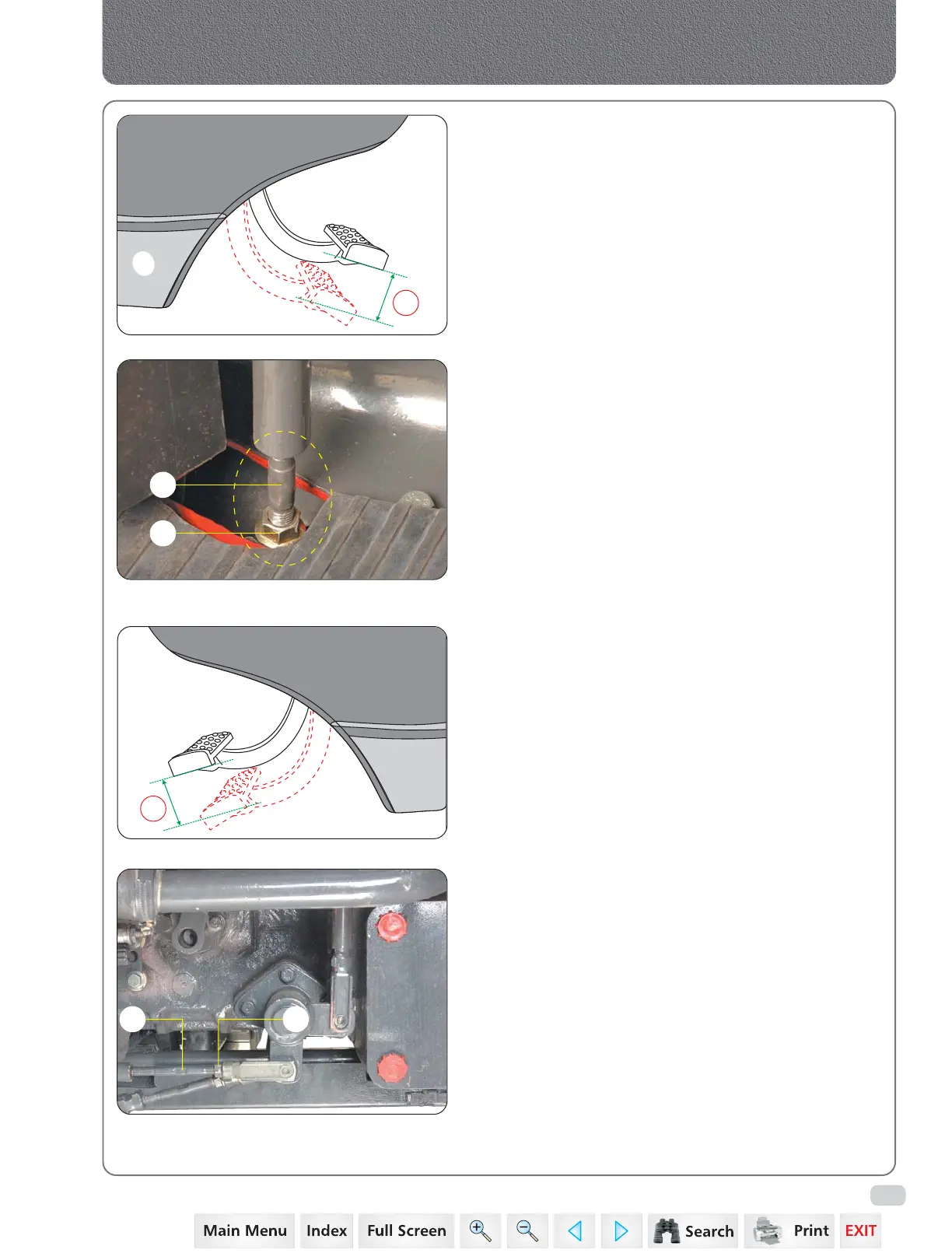

SOP for adjusting Clutch Pedal Free Play
Measure free play of pedal stroke (A). Ensure free play
is within specified limits. If free play is not within
specified limits, adjust clutch linkage as shown below.
Free Play - Distance 0.78 to 0.98 inch (20 to 25 mm)
1. Loosen jam nut (B).
2. Turn the turn buckle (C) anticlockwise
(from eyesight view) to decrease play and
clockwise to increase play.
A
SOP for adjusting Brake Pedal Free Play
Measure free play of pedal stroke (A). Ensure free play
is within specified limits. If free play is not within
specified limits, adjust brake linkage as shown below.
Free Play - Distance 1.57 to 1.77 inch (40 to 45 mm)
1. Loosen jam nut (B).
2. Turn the Turn Buckle (C) anticlockwise to increase
play and clockwise to decrease play.
C
B

Mahindra 5035 Specifications

General

Transmission	8 Forward + 2 Reverse
No. of Cylinders	3
Steering Type	Power Steering
PTO RPM	540
Engine Type	Diesel
Brakes	Oil Immersed Brakes
Clutch Type	Single
