E-58
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

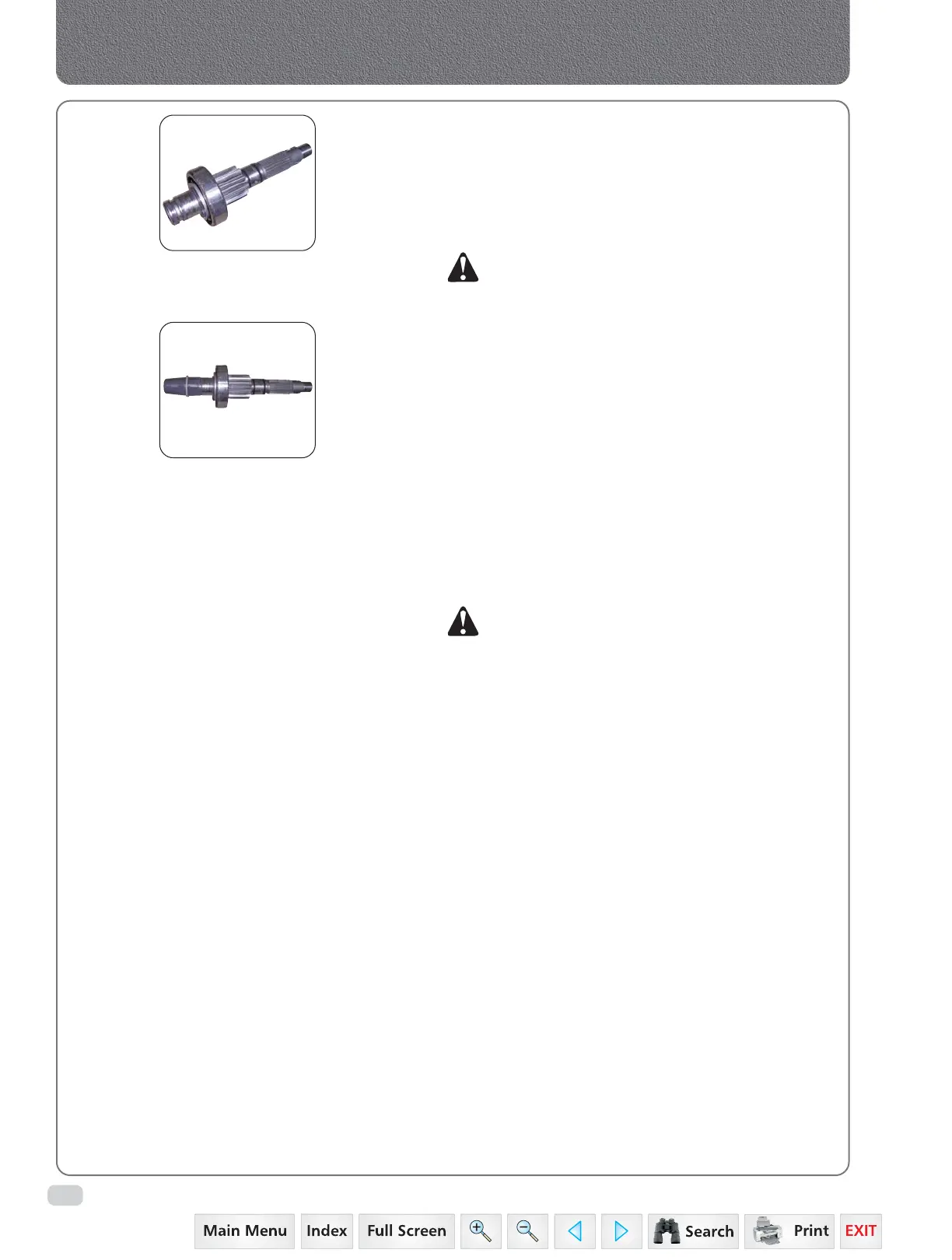

Input Shaft
Fitment of Oil Seal
Wet Clutch PTO
4. ASSEMBLY - WET CLUTCH PTO – INPUT SHAFT
a. Press input shaft ball bearings, put washer and
circlip.
b. Assemble wet clutch assembly and retain with
external circlip.
NOTE: Align lubrication hole of wet clutch body and
input shaft hole.
c. Assemble the seal ring carefully by using special
tool i.e. Sleeve.
d. Assemble the above sub assembly in PTO cover
and retain with the bearing retainer.
e. Assemble the complete rear cover assembly along
with clutch and gear into transmission case with
the help of longer stud.
NOTE: Ensure that the brake lug of wet clutch is
properly seated into the stopper provided on
transmission case.
