IMPORTANT

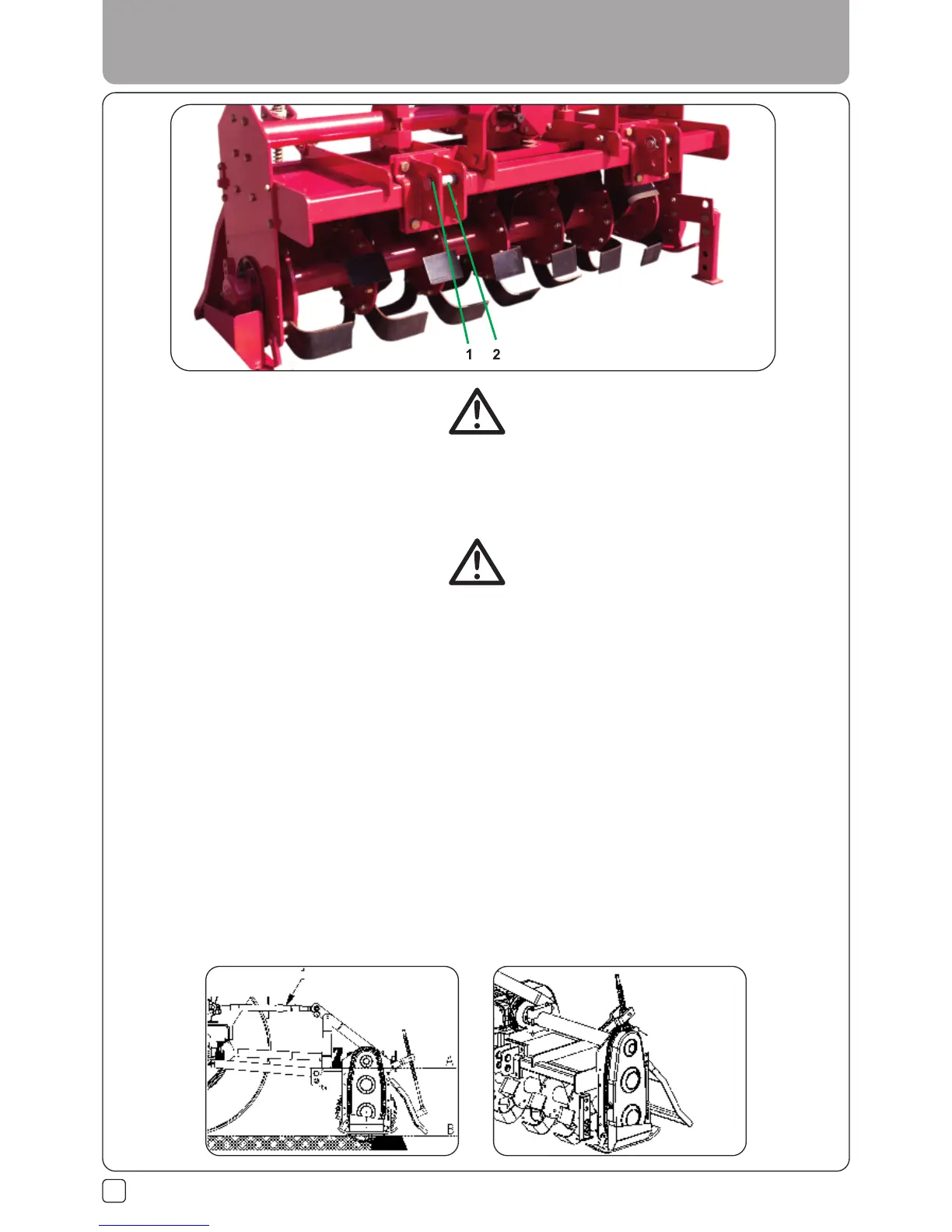

The plates (1 Fig. 7) must always and only be mounted as shown in Fig. 7 with the holes towards the front of
the square tubular.
The Manufacturer declines any liability for damage to the machine or the tractor if this essential installation
requirement is not observed.
DANGER
Application of any implement to a tractor is a very dangerous operation and must only be carried out with
the utmost care in compliance with the instructions.
The correct tractor/machine position is established by setting the implement at such a distance from the tractor that
the universal coupling remains 5-10 cm from its maximum closing position. Now proceed in the following way:
1) Near the lift bars, setting them in the most suitable plates (2 Fig. 7). Insert the pin (1 Fig. 7) into the relative hole
and lock in place with the snap-in split pins.
2) Lock the lift links using the relative chains and couplings parallel to the tractor.
This operation must be carried out to prevent the machine from moving in a horizontal direction.
3) Engage and check that it is perfectly locked on the pto. Check that the guard is free to turn and tight the guard
with suitable chain.
4) Connect the upper third-point and correctly regulate by means of the adjuster (1 Fig. 8), checking that the upper
surface of the machine (A Fig. 8) is parallel to the ground (B Fig. 8).
This is very important since it achieves parallelism between the axis of the machine and that of the tractor pto.
When the implement operates in these conditions, there will be less stress on the pto itself while the propeller
shaft and implement will be much less subject to wear.
5) Position the support foot as shown in the figure 9.
