Mahindra Gyrovator SLX Series - 4.7 LUBRICATION

32
4.0 MAINTENANCE
4.7 LUBRICATION

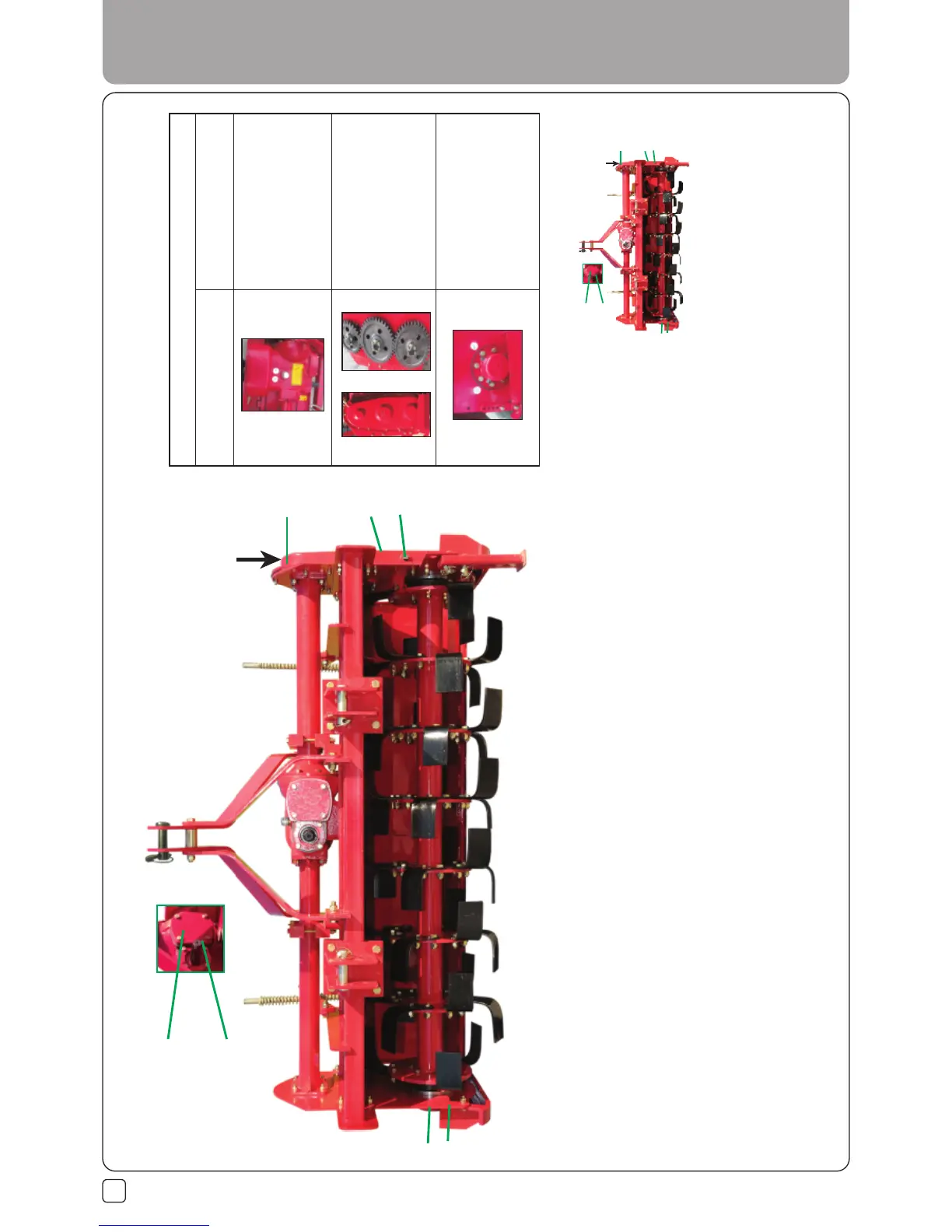

1) Rotor bearing oil fill plug. 2) Rotor bearing oil drain plug. 3) Gearbox oil fill & check plug. 4) Gearbox oil fill & drain plug. 5) Side Transmission oil fill plug.
6) Side Transmission oil drain plug.
7) Side Transmission oil level check plug.
LUBRICANTS - It is advisable to use EP 140 GL4 OIL or equivalent for the reduction unit (or gear box) and
side transmission. Consult the last cover page for the relative specifications. - It is advisable to use AGIP GR MU EP 2 GREASE or equivalent for all greasing points.
Consult the last cover page for the relative specifications.
Note: do not exceed the prescribed quantity of oil.
OIL QUANTITY
OIL
Qty. (Lt.)
4 2.5
MAHINDRA GYROVATOR SLX
Fig. 28
0.3
3
4
TRANSMISSION GEARS
6
7
2
1
5
3
4
TRANSMISSION GEARS
6
7
2
1
5
