23
3.7 WORK DEPTH
Machine work depth is regulated on the basis of the different possible configurations by the position of the following
devices:
- Side Adjuster Skids.
- Draft and Position Lever on Tractor.
DANGER
Turn the adjustment handle only when the tractor is at a standstill and with the power take-off
disconnected.
Do not carry out this adjustment by operating from the tractor.
Machine with skids

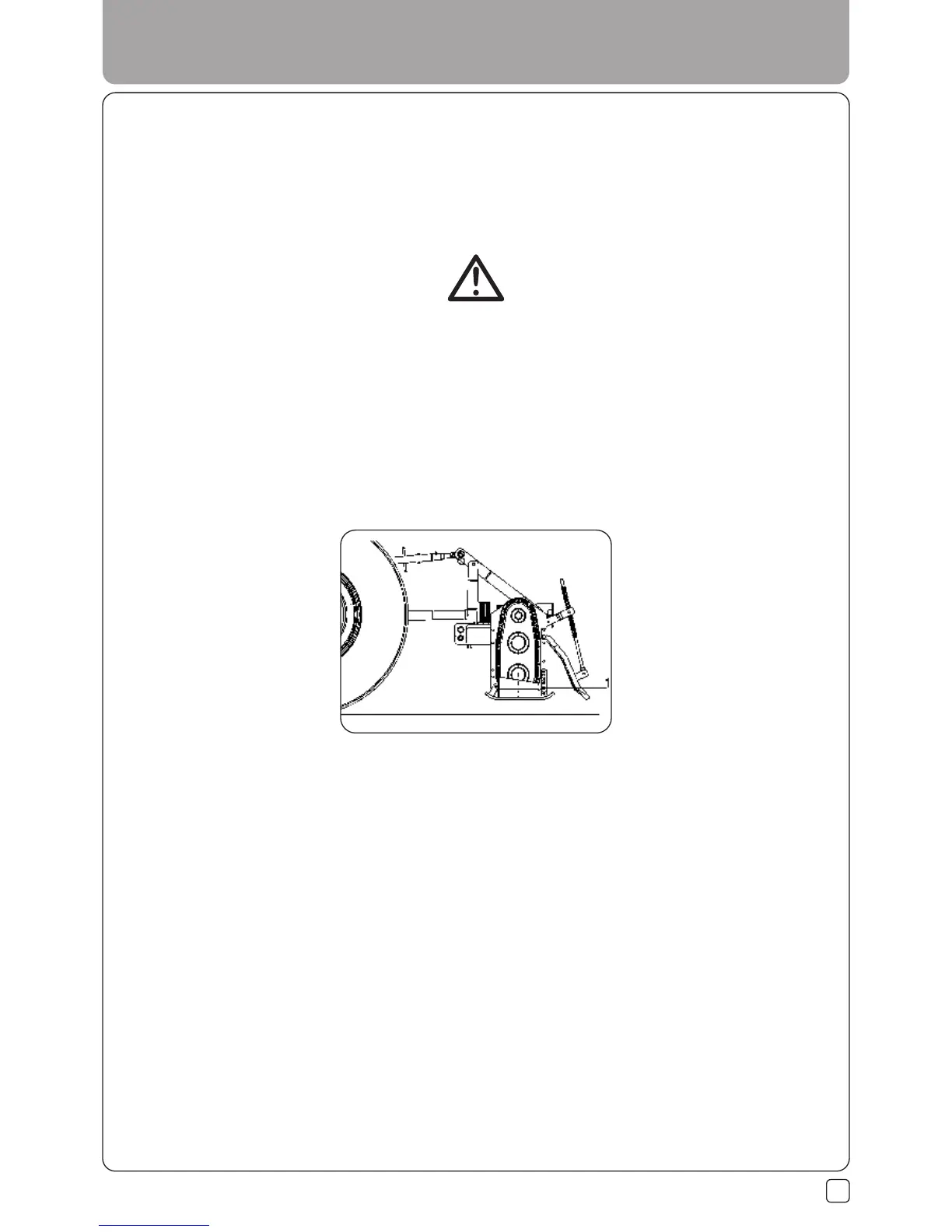

To adjust working depth on this type of machine you must loosen the adjustment screw (1 Fig. 19) and raise or lower
the skid the desired amount. Then retighten the srew.
Both skids should be subjected to this operation which will vary according to the type of soil.
3.8 SIDE TRANSMISSION
Side gears drive
The rotor can be operated by a set of side gears (5 Fig. 3) housed in a special casing with thick walls able to give the
transmission considerable sturdiness.
3.9 HOE BLADES
The hoe blades with which the machine is equipped can work soils of normal conformation.
Check the degree of wear and condition of the hoe blades each day.
If the blades should accidentally bend (or break) during work, they must be immediately replaced.
3.0 USE INSTRUCTIONS
Fig. 19
