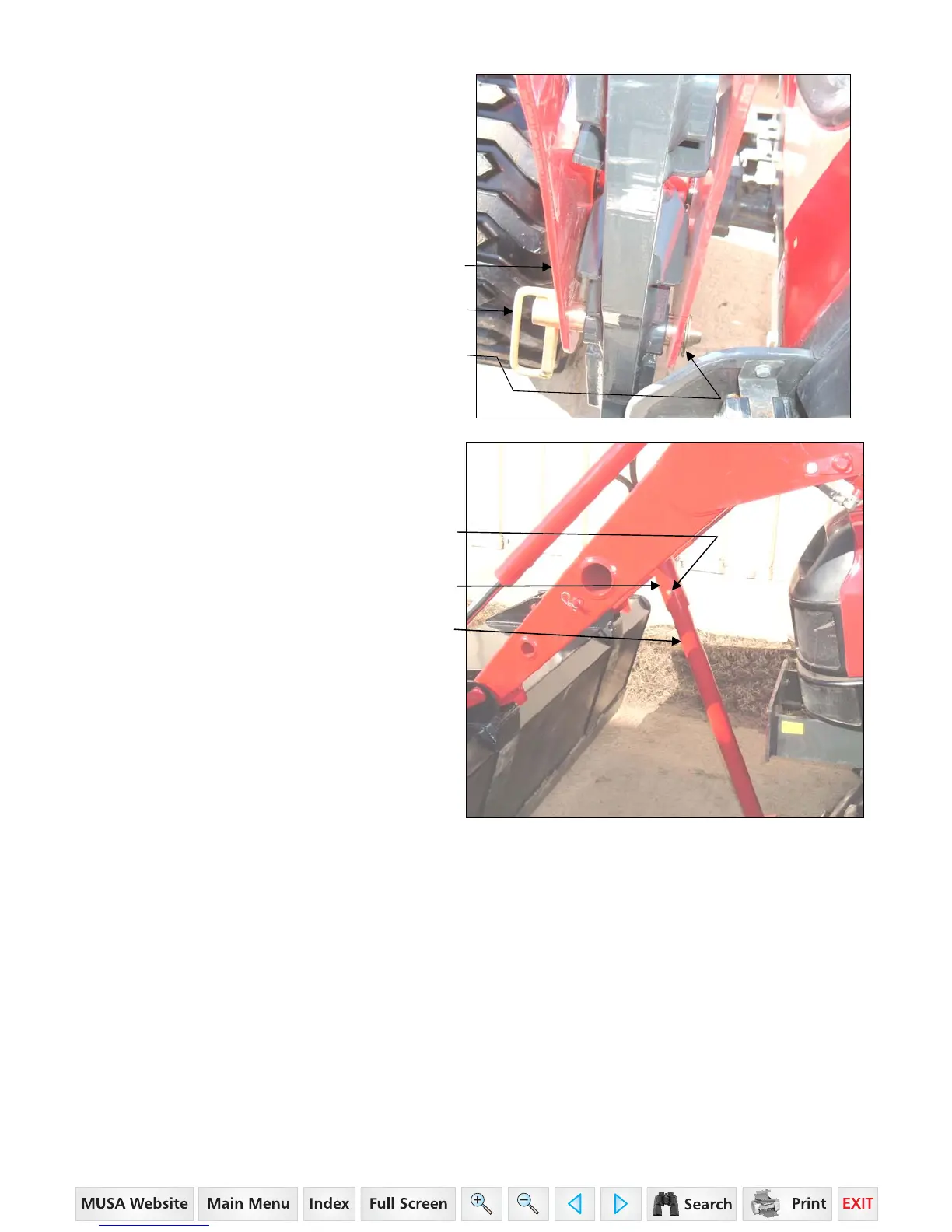

8.1.9. Secure loader to center brackets by reinstalling
handle pins to bearing boxes and secure handle pins
using snap pins.
Bearing box
Handle pin
Snap pin
8.1.9. Remove parking stand from parked position.
Return clevis pin and hairpin cotter to attaching
bracket for storage.
Clevis pin and hairpin cotter
in park position
Attaching bracket
Parking stand
in park position
35 Series 4WD, Model - 3535 & 4035 Loader June’08
