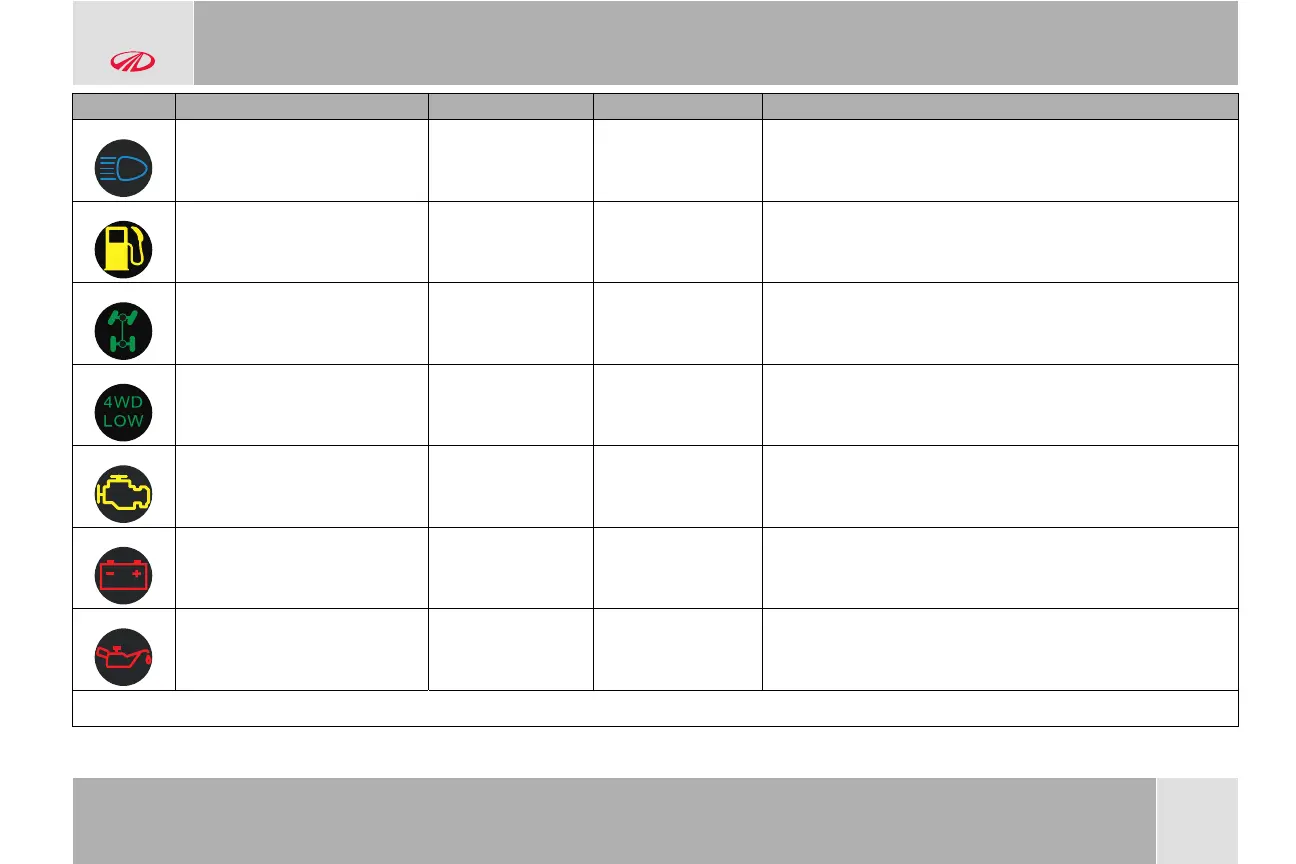

Symbol Warning Lamp/Tell Tale Lamp Pre-check Lamp Status Action/Remarks
Head Lamp High Beam Indicator
No
Continuously ON
Indicates head lamp high beam is ON
Low Fuel Warning Lamp
Yes
Continuously ON The fuel level in the fuel tank is low. Re-fuel immediately to a avoid empty tank
All Wheel Drive 4X4 No
Continuously ON
Refer Note below *
4WD Low No
Continuously ON
Refer Note below *
Malfunction Lamp (OBD)
Yes
Continuously ON
There is a potential malfunction related to emission control system, contact an
Authorized Mahindra Dealer immediately
Battery Charging Warning Lamp
No Pre-check
Continuously ON
Indicates malfunction in the charging system. Contact an Authorized Mahindra
Dealer for assistance
Low Engine Oil Pressure Warning Lamp
No Pre-check
Continuously ON
Indicates engine oil pressure is low. Check oil level and top-up or contact an
Authorized Mahindra Dealer for assistance
* When 4WD LOW input is active low and it is ON, then All Wheel Drive 4X4 is also ON
When All Wheel Drive 4X4 input is active low, only All Wheel Drive 4X4 tell tale is ON
INSTRUMENT CLUSTER AND WARNING LAMPS OVERVIEW
