2.5.1 Jacking

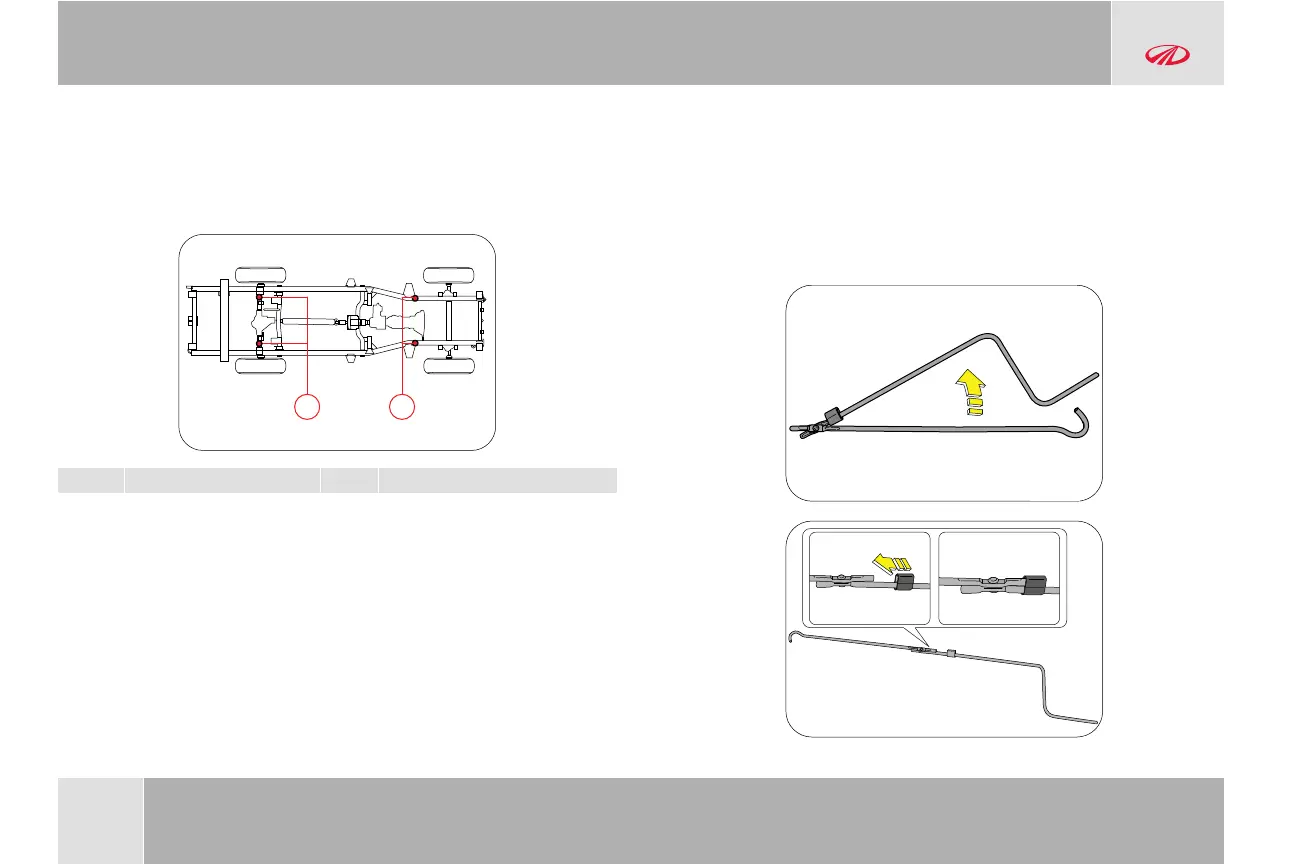

Front jack up point - below chassis side long member just behind the
front wheels.
Rear jack up point -under rear axle.
A
Rear Jacking Points
B
Front Jacking Points
Position the jack at the correct jacking point (under the front
chassis cross member). Make sure the jack is positioned on a level
and solid place. Ensure no one is in the vehicle.
Block the wheel diagonally opposite the flat tire to keep the vehicle
from rolling when it is jacked up. When blocking the wheel, place a
wheel block in front of one of the front wheels or behind one of the
rear wheels.
Open the jack extension as shown and slide the lock to keep the
handle straight. To raise the vehicle, insert the jack handle end
along with the extension into the jack and turn it clockwise with the
jack handle. As the jack touches the vehicle and begins to lift, check
that it is properly positioned. Raise it high enough so that the spare
tire can be installed. Remember you will need more ground
clearance when putting on the spare tire than when removing the
flat tire.
