Maico PILOT TEST User Manual

Operation Manual PILOT TEST
8504660 Rev. 3
37
06/11/2019
THERMAL PRINTER
Type
HM-E300
Display
OLED display
Accessories
USB Cable, Paper (2 rolls), Quick Guide
Connection
USB
Battery
2300 mAh/7.4 V rechargeable Li-ion battery
5 days stand-by
Charger
Output: DC 5 V/1A
Battery: 2300 mAh/7.4 V rechargeable Li-ion battery
Dimension
38.8 mm x 106.3 mm x 61.2 mm
(1.52 in x 4.19 in x 2.41 in)
Weight
475.8 g / 17.8 oz (without paper roll)
Paper
Continuous paper
Paper Width: 80 mm
Paper Thickness: 0.053 mm to 0.100 mm
Paper Roller Diameter: ≤ 50 mm
To be printed on paper roll:
Printing time
<5 seconds per test result
6.2 Connections

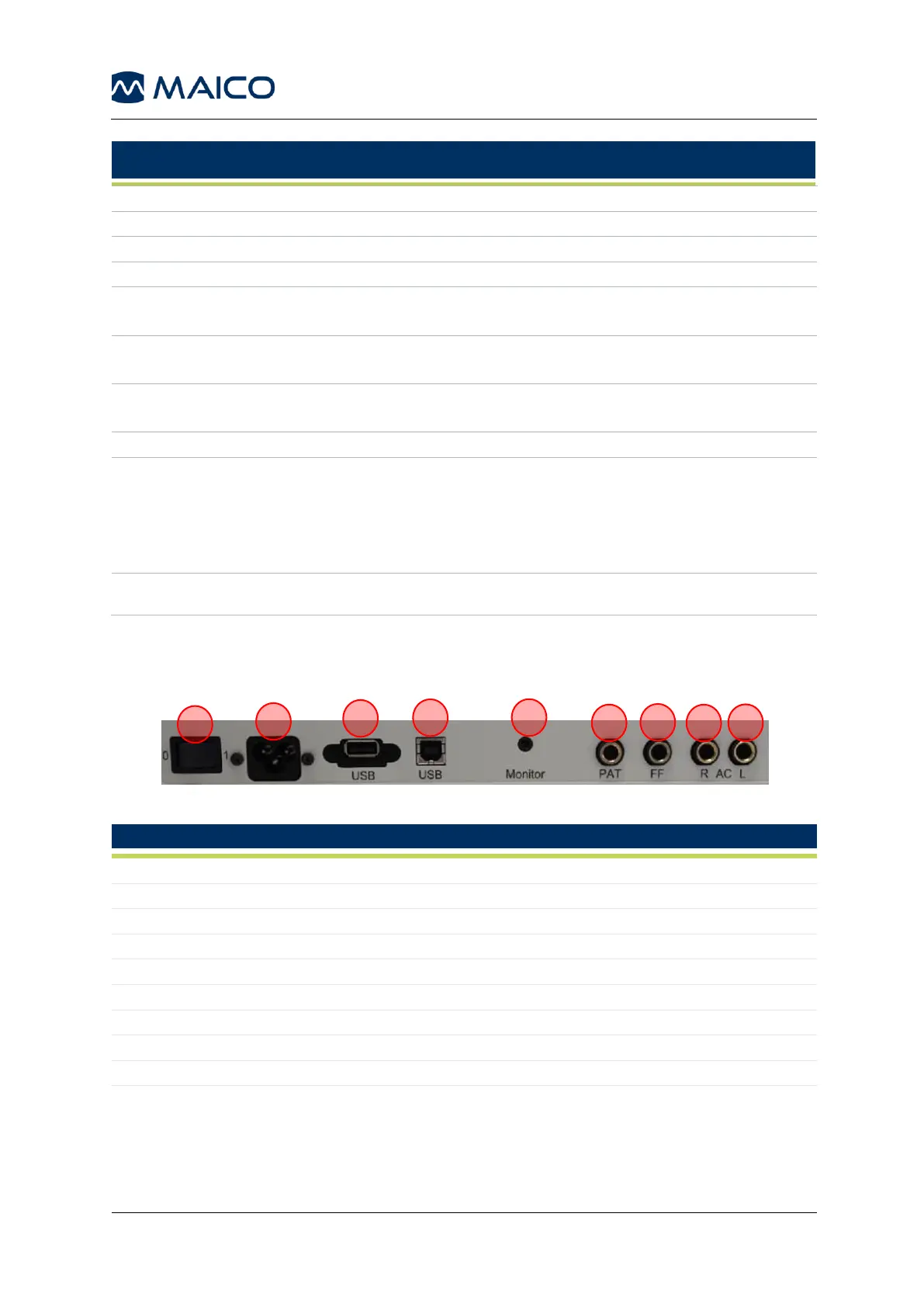

Figure 32
#
CONNECTION SOCKET
SPECIFICATION
1
0/1 (On/Off)
Power
2
Mains
100...240 V~, 50/60 Hz middle = protection earth
3
USB in
USB 1.1
4
USB out
USB 1.1
5
Monitor
ZA= 10 Ω, UA= 35 mV
eff
6
Patient Response Switch
RI= 500 Ω
7
Speaker
ZA= 8 Ω, UA= 3,5 V
eff
8
Phone R (red)
ZA= 8 Ω, UA= 3,5 V
eff
9
Phone L (blue)
ZA= 8 Ω, UA= 3,5 V
eff
2
3
4
4
5
6
7
8
8
9
1
