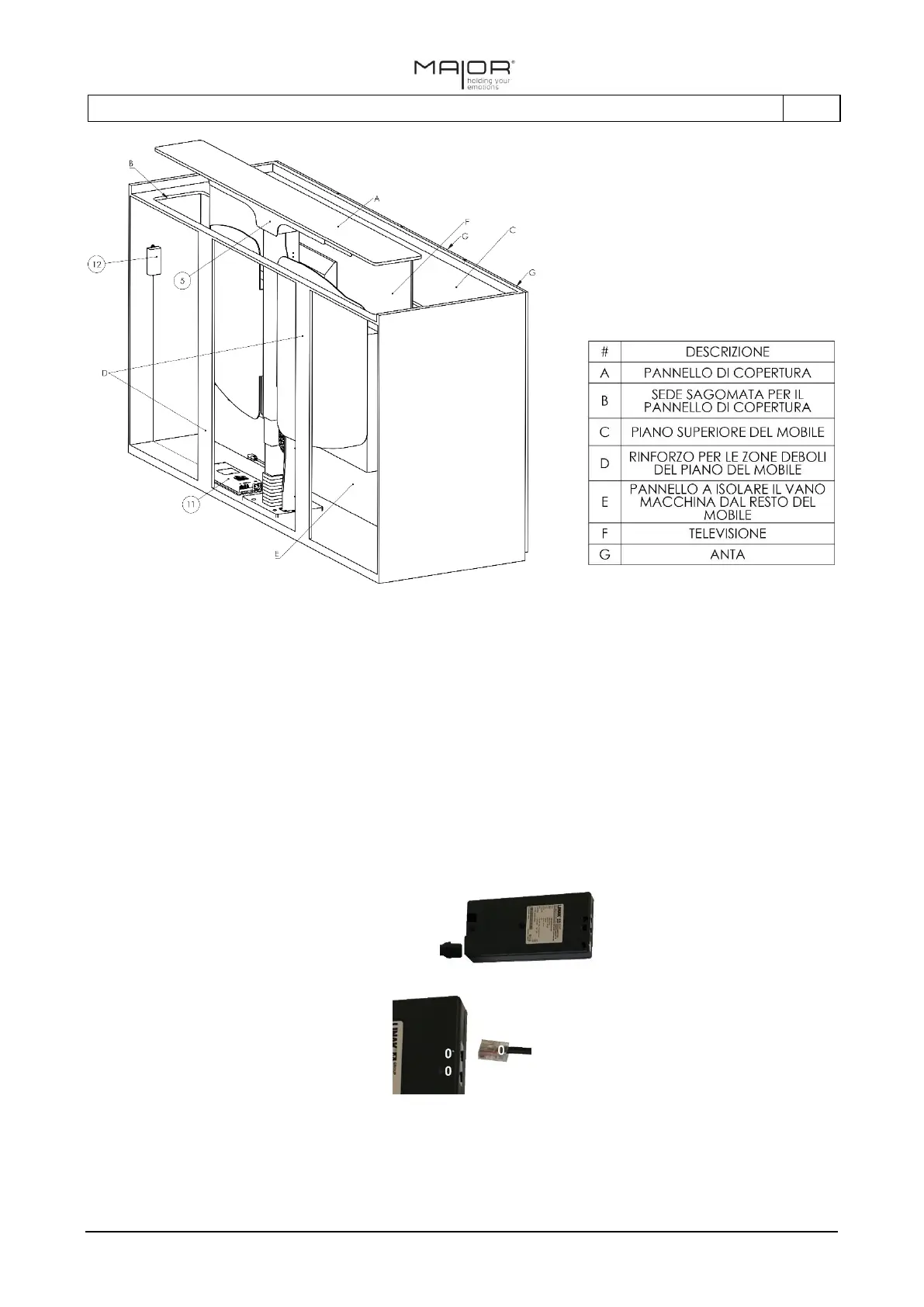

Figure 8: Mobile Example
2.2.2. installation Steps
1. Locate, using the template provided, the exact position that the machine will be within the finished
piece of furniture.
2. Install the threaded inserts (for M6 metric screws) in correspondence with the holes 6 on the
template.
3. Fasten the machine to the base by using all 6 provided screws (UNI EN ISO 10642)
4. Attach to the structure of the cabinet, where appropriate, the control unit ⑪ ⑫ and RF receiver.
(See Figure 8.)
5. Make the appropriate electrical connections between the various electronic components and
between the control unit and the mains. In particular:
- connect the power cable VDE 220V-110V to the control unit
- connect the RJ45 cable supplied with the RF receiver to the control unit. (Plug 0)
- plug the other end of the RJ45 cable to the RF receiver.
