1.2. Package
The machine is attached to a pallet, packed in a wooden crate. The case is then further wrapped in a nylon
film.
The equipment must be transported using means having capacity suitable for the weight to be supported.
During transport the equipment must be protected with waterproof material to prevent seepage and water
deposits on electrical components.
1.2.1. Package Contents
Before installing the machine, check the contents of the crate.
The box contains:
- 1x machine
- 1x Drilling template
- 1x adjustable stand for top panel ⑤
- 2x decorative covers ⑧
- 2x Side cover ⑨
- 1x unit ⑫
- 1x Receiver ⑬
- Push-button 1x
- 1x Ethernet cable "linear" prepared for dry contacts and / or pushbutton (3 meters)
- 1x Instruction Manual and accompanying documents
If you verified the lack of any component, contact your dealer immediately.
1.3. Machine description
1.3.1. Components and knots

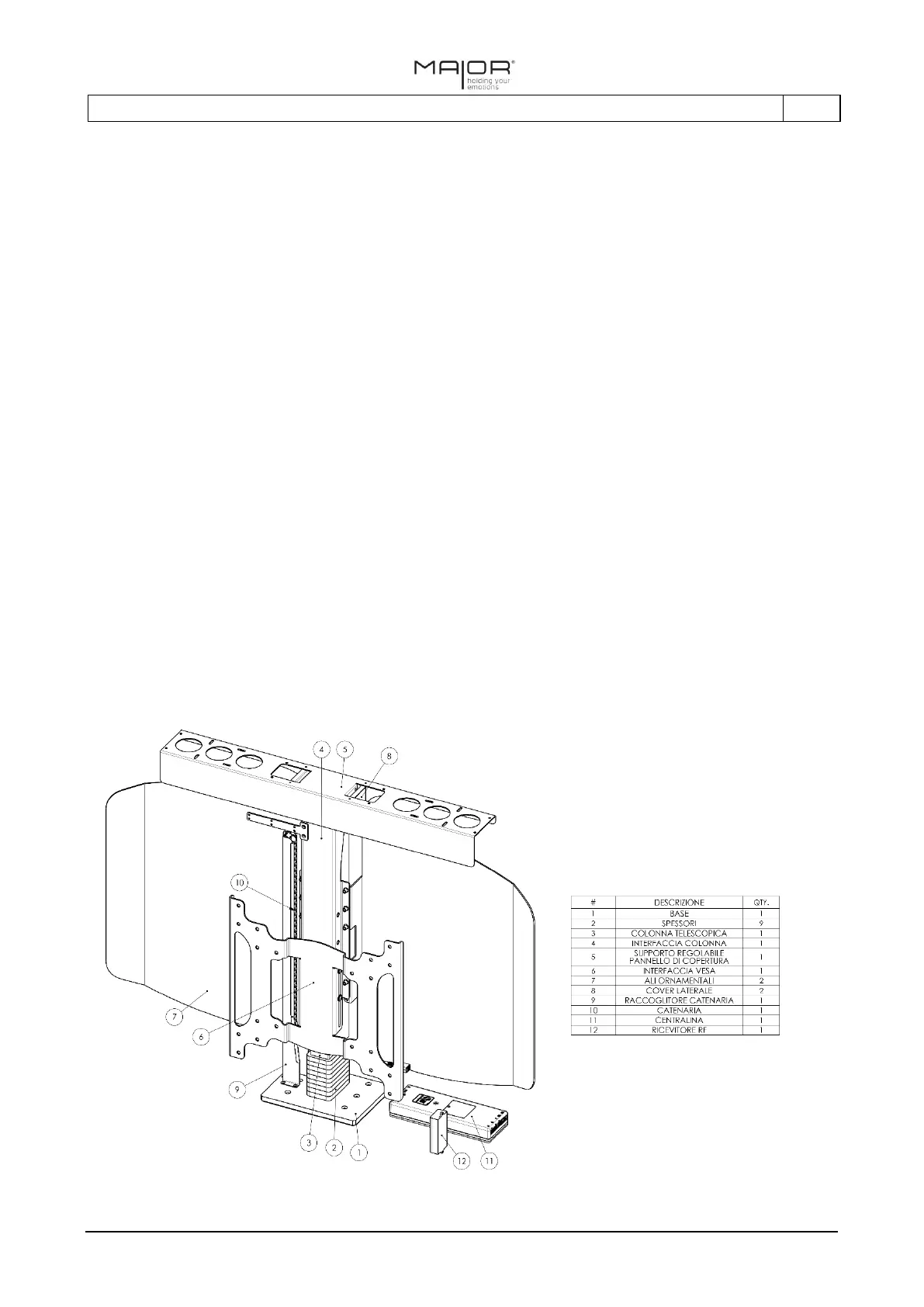

The following graphic identified the main groups and of the machine components.
Refer to it the bollinati numbers (eg. ③) present in the remainder of this manual.
