11. 200kΩ RESISTANCE MEASUREMENTS
1. Set the function switch to the highest 200kΩ position.
2. Insert the black test lead banana plug into the negative COM jack
3. Insert the red test lead banana plug into the positive + jack.
4. Touch the test probe tips across the circuit or part under test. It is best
to disconnect one side of the part under test so the rest of the circuit
will not interfere with the resistance reading.
5. Read the resistance on the display
9

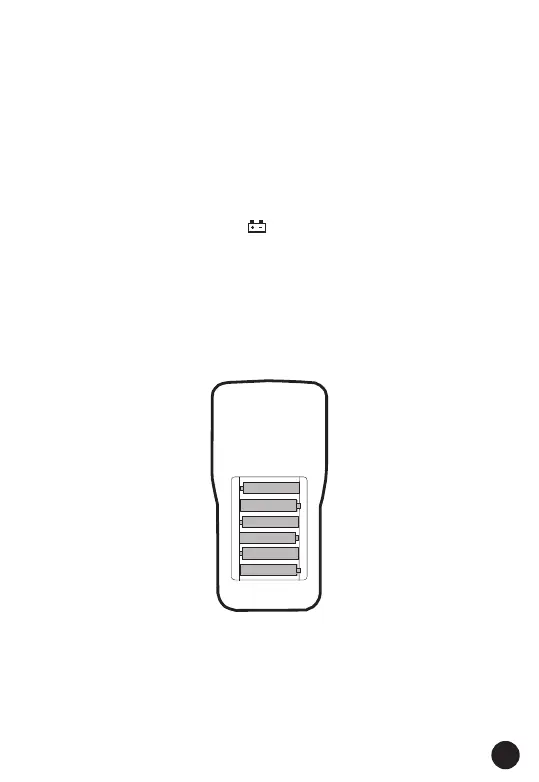

12. BATTERY REPLACEMENT
1. When the low battery symbol appears on the LCD, the six 1.5V 'AA'
batteries must be replaced.
2. Turn the meter off and remove the test leads
3. Unsnap the tilt stand from the rear of the meter
4. Remove the four Phillips head screws holding the battery cover
5. Remove the battery compartment cover
6. Replace the batteries observing polarity
7. Affix the rear cover and secure the screws.
8. Reattach the tilt stand
