Pre-Use Assembly
Important: The spool bank must be relocated and bolted into “working position” use” position prior to
operation.

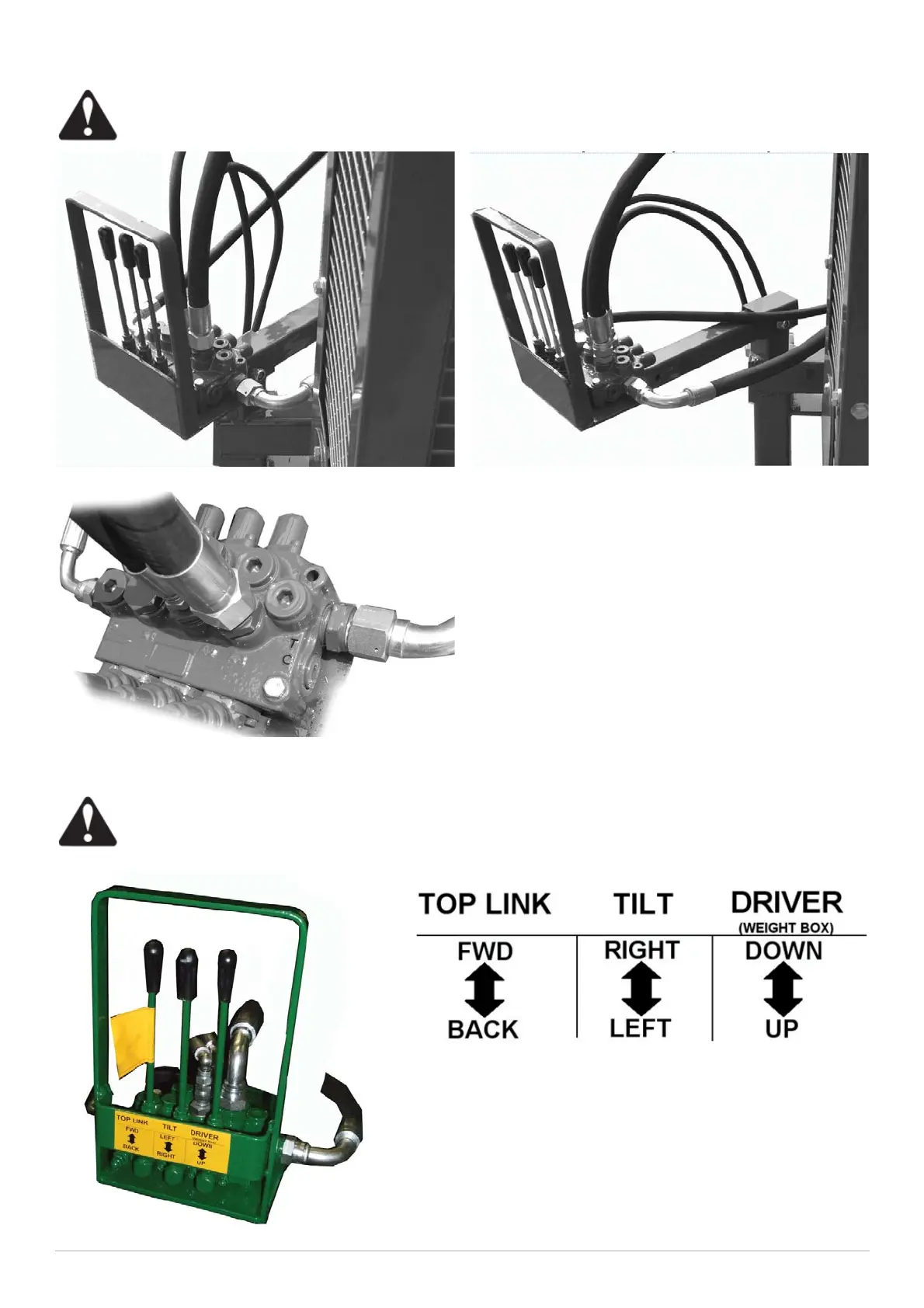

Closed Centre Hydraulics: NOTE: If tractor hydraulics
are closed center type, the spool must be altered to suit
by:
• Remove the bung located beside the return hose
(marked ‘c’)
• Remove the ¾” Return hose from the port marked ‘T’
• Fit the Return hose in the threaded port marked ‘C’
• Use the Bung to Block the port marked ‘C’
Spool Controls
Use the spool controls smoothly. The weight box drops quickly with only a small adjustment on the spool.
Spool Levers:
Operation with Hydraulic Top Link
If the operator connects a hydraulic top link operator must aware
of the quick action of the machine tipping forward.
NOTE: This machine is not fi tted with an hydraulic top link. If
fi tting a hydraulic top link ensure it is fi tted with fl ow restrictors as
to reduce the speed of the machine tipping forward. Consult your
dealer or manufacturer for more information.
