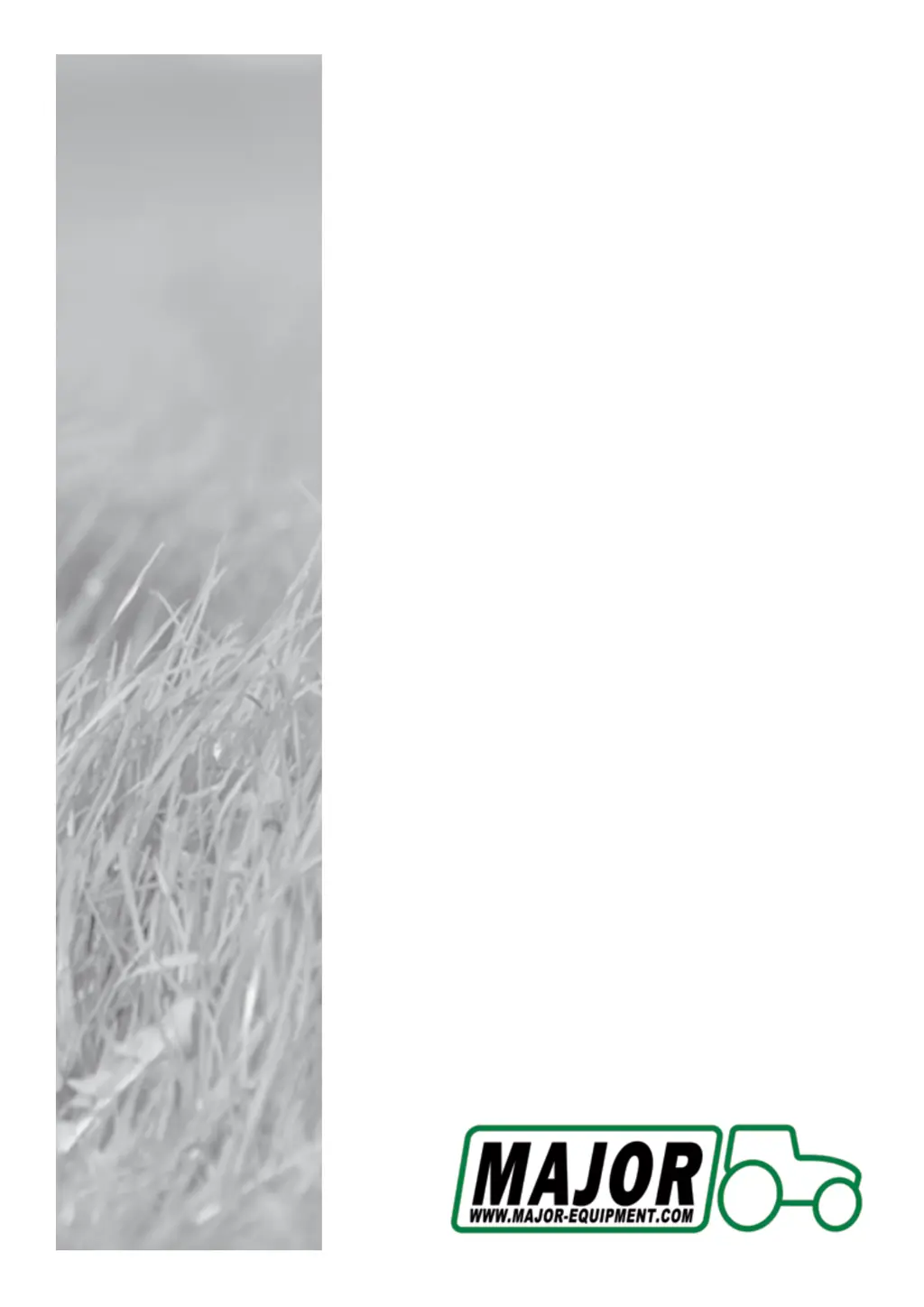

MAJOR RANGE OF
TDR ROLLERMOWERS
TDR 16000
TDR 20000
Operator Manual
& Parts List

Table of Contents

Questions and Answers

  • T
    Travis SmithAug 15, 2025
    What to do if Major TDR 16000 discharges material unevenly?
    • L
      lisadavisAug 16, 2025
      If your Major Lawn Mower discharges material unevenly, leaving bunches along the swath, it could be due to a couple of reasons. First, the material might be too high and too much. To resolve this, reduce your ground speed while maintaining 540rpm at the tractor PTO, or make two passes over the material, raising the mower for the first pass and lowering it to the desired height for the second, cutting at a 90-degree angle to the first pass. Also, if the grass is wet, allow it to dry before mowing and slow down the ground speed of the tractor while keeping the engine running at full PTO rpm. Cutting lower may also help.
  • T
    Troy LeeAug 18, 2025
    What to do if Major TDR 16000 blade is scalping ground?
    • J
      Julie RiveraAug 19, 2025
      If your Major Lawn Mower blade is scalping the ground, it could be because the mower is set too low, so raise the mower and reset the wheels. Alternatively, the field may be ridged, in which case you should cut the field at a different angle. If the field is too wet, stop and wait until it has dried.
  • C
    Christopher MurphyAug 21, 2025
    Why Major Lawn Mower leaves a streak of uncut grass?
    • M
      michaelmccormickAug 21, 2025
      If your Major Lawn Mower leaves a streak of uncut or partially cut grass, several factors could be at play. The blades might be dull or bent, requiring replacement. The carrier RPM could be too low, so ensure you're using the correct PTO speed. If the field conditions are too wet, it's best to halt operation until it dries out. A ground speed that's too fast can also cause this issue, so reduce it by shifting to a lower gear. If the grass is down from previous weather, try mowing in only one direction. Also, check for any build-up of materials under the mower and clean it if necessary. Finally, ensure the blades are mounted correctly, with the cutting edge facing the correct rotation.
  • E
    Edward HarrisAug 25, 2025
    How to fix excessive vibration in Major Lawn Mower?
    • A
      Anne MurrayAug 25, 2025
      If your Major Lawn Mower is experiencing excessive vibration, there are several things you can check: * Tighten any loose gearbox bolts. * Tighten any loose nuts on the blades. * Replace any broken blades in a set. * Ensure that new blades or bolts are not mixed with worn ones; replace blades or bolts in sets. * Phase the driveline, ensuring the implement and tractor yokes are in line, and replace if necessary.
  • W
    William PatelAug 27, 2025
    Why is the gearbox overheating on my Major Lawn Mower?
    • M
      Marie ThompsonAug 27, 2025
      If the gearbox of your Major Lawn Mower is overheating, it could be due to several reasons. First, check the lubricant level and fill it to the proper level if it's low. If the lubricant is the improper type, replace it with the correct one. Also, remove any excessive grass or debris build-up around the gearbox.
  • E
    Erin MillerAug 30, 2025
    Why is my Major TDR 16000 so noisy?
    • C
      Christine ShepardAug 30, 2025
      If your Major Lawn Mower is making excessive noise, several factors could be the cause. Check for worn bearings and replace them if necessary. Ensure the oil level in the gearbox is adequate and add oil if it's low. Inspect for any loose parts and fully tighten all bolts. Verify that the PTO RPM rate is correct and adjust as needed. Replace any bent or missing blades. Check that the PTO shafts are aligned correctly. Also, check the output shaft on gearboxes and the driveline between gearboxes are aligned.
  • M
    Monica MillerSep 2, 2025
    Why do blades wear too fast on Major TDR 16000 Lawn Mower?
    • K
      Kevin RoseSep 2, 2025
      If the blades of your Major Lawn Mower are wearing too fast, it might be because you are cutting in sandy or rocky conditions, or the blades are hitting the ground. To resolve this, increase the cutting height.
  • R
    Richard ZavalaSep 5, 2025
    Why is the gearbox leaking on my Major Lawn Mower?
    • J
      Joel TurnerSep 5, 2025
      If the gearbox on your Major Lawn Mower is leaking, there are several potential causes. It could be due to a damaged oil seal, a bent shaft, or a shaft that is rough in the oil seal area. The oil seal might also be installed incorrectly or not sealing in the housing. Other possible causes include an oil level that is too high, a hole in the gearbox, a damaged gasket, or loose bolts. To address these issues, you may need to replace the seal, shaft, or gasket, use a sealant on the outside diameter of the seal, drain oil to the proper level, replace the gearbox, or tighten the bolts.
  • M
    Maureen GregorySep 8, 2025
    Why does my Major TDR 16000 Lawn Mower require excessive power?
    • N
      Nicholas SharpSep 8, 2025
      If your Major Lawn Mower seems to require excessive power, it could be due to several reasons. You might be advancing into the grass too rapidly, in which case you should reduce your forward travel speed. The mower might be hitting the ground, so raise the mower and reset the wheels. The blades could be worn or dull, so sharpen or replace them. Finally, the tractor might not be large enough, so use a larger horsepower tractor.
  • M
    Michelle MaynardSep 12, 2025
    What to do if Major Lawn Mower will not cut?
    • M
      Margaret RiveraSep 12, 2025
      If your Major Lawn Mower will not cut, it is possible that the shear bolt sheared. Install a new shear bolt to resolve this.

Summary

Product Specifications

Safety

Safety Labels

Explains the meaning and placement of various safety labels on the machine.

Hazards Associated with Operation

Details risks like cutting, pinching, entanglement, and ejected objects during operation.

Safe Operation Practices

Noise Hazards and Hearing Protection

General Operating Procedures

Covers operator familiarization, clothing, and seeking information for safety.

Workstation and Drive System Safety

Details operator position, drive system safety, and PTO engagement.

PTO Shaft and Road Safety

PTO Shaft Safety

Essential safety guidelines for the proper use and maintenance of PTO shafts.

General Safety Regulations

Crucial safety measures for operating the machine, including pre-operation checks.

Operating the Machine

Inspections before Use

Covers essential pre-operation checks, lubrication, and blade inspection.

Hitching to the Tractor

Starting Regulations

Safety checks and procedures for attaching the implement to the tractor.

Remote Control System

Remote Control Operations

Manual Override Procedure

Instructions for manually operating the machine's wings and rear deck.

Adjustments and Maintenance

Roller and Blade Adjustments

PTO Shaft Maintenance

Details guard removal, yoke end greasing, and check chain procedures.

Belt System Maintenance

Belt Adjustment

Belt Removal and Fitting

Taper Bush Procedures

Wheel Nuts and Taper Bush Installation

Storage, Disposal, and Troubleshooting

Troubleshooting Guide

Lists common issues like dull blades, uneven cutting, and gearbox problems with solutions.

Hydraulics and Controls

Blades
