MAK M 20 - Page 142

Piston
Maintenance / Disassembly
A5.05. 02.06.01.02
M20
en / 05.10.2010 IB004756 1/3
02
See also: 01.06.01.nn, 02.04.01.nn, 02.07.01.nn
Spare parts list: B1.05.02.2.2601
Time requirement: 1 Pers./ 0,50 h
Personnel qualification: skilled engine hand
--------------------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
Tools:
Sleeve support W1 2.9216-103
Eye screw M12 W2 1.9080-012
Turning rod W3* 2.9100-380
Disassembly unit W4 2.9216 C
*not shown
Aids:
“Caramba“** deruster
**or equivalent product

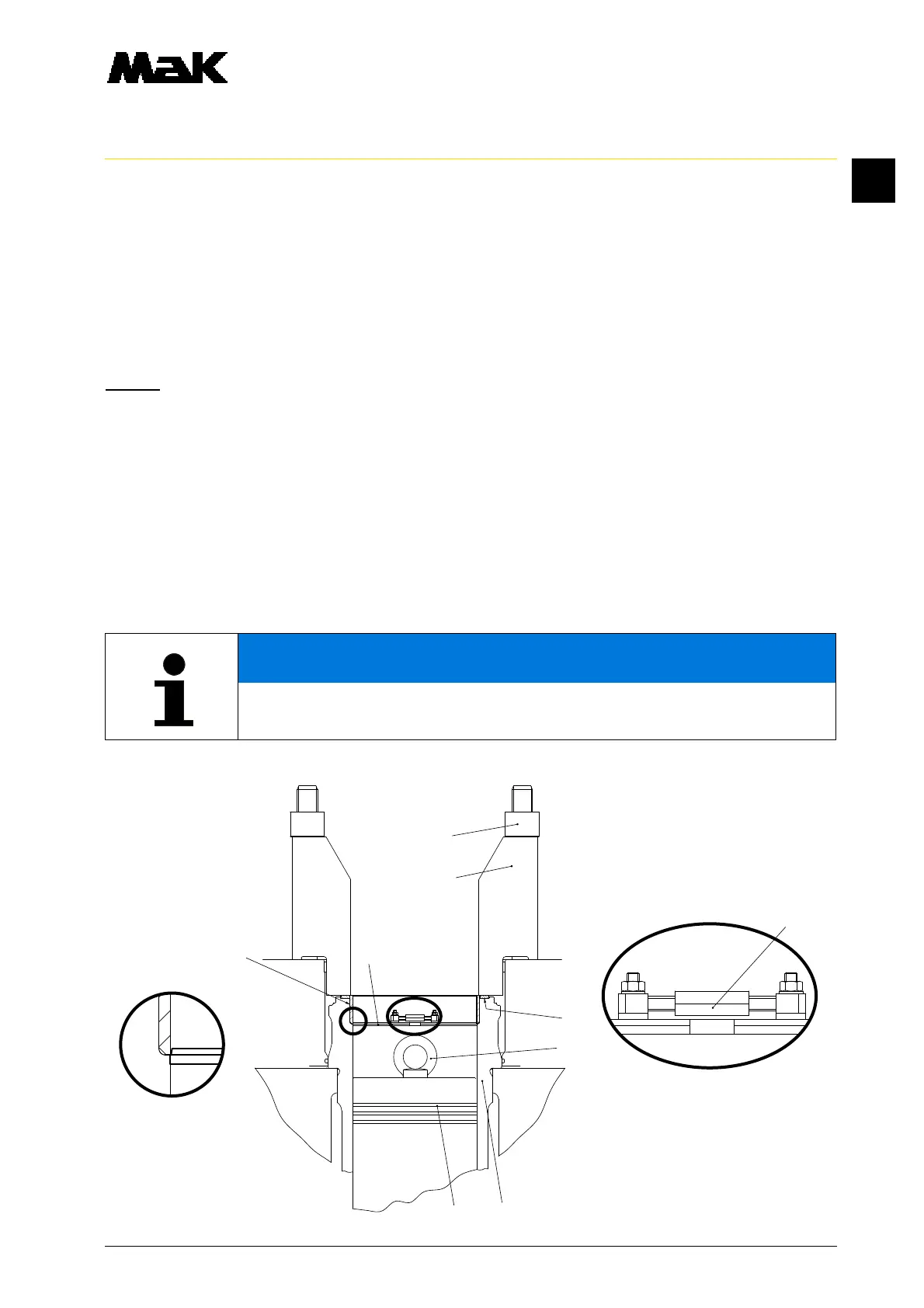

NOTE
To prevent loosening of the cylinder sleeve (4), it should also be secured with the
sleeve supports (W1).
Y
W2
4
1
6
W4
5
Z
Y
Z
2
3
W1
