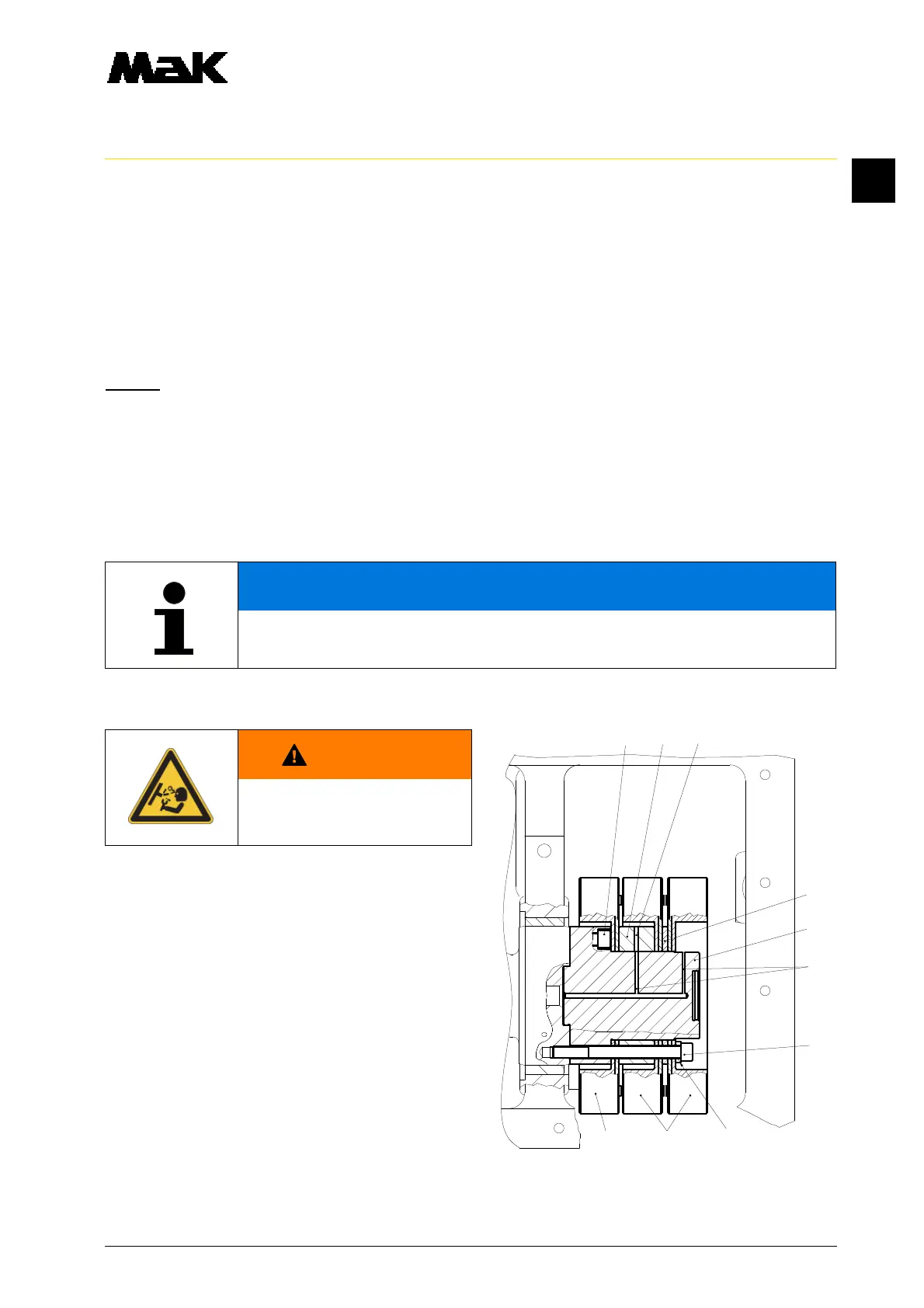

Vibration Damper on Camshaft
Repair / Disassembly and reassembly
A5.05. 04.09.01.02
15000
M20
en / 30.09.2010 IB021607 1/2
04
See also: -
Spare parts list: B1.05.04.2.3140
Time requirement: 1 Pers./ 1,00 h
Personnel qualification: skilled engine hand
--------------------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
Tools:
Torque wrench 20 - 90 Nm 1/2" W1 * 1.9454-020
Hex cap screw drive A/F12 W2 * 1.9039-012
*no illustration
Auxiliary material:
Molykote paste „G-Rapid“ **
**or a product of equivalent standard
Sequence of operations:
1. Disassembly
1.1 Support dampers (1 and 2).
Loosen cylinder head screws (3).Lift off
damper with washers (4 and 5).
1.2 Support cover disk (6). Loosen hexagon
socket head cap screws (7).
Remove cover disk.
NOTE
After 15.000 operating hours, the vibration dampers have to be exchanged against
new ones.
WARNING
Attention, there is a risk of
injury!
Never open a vibration damper
