Pressure Switch
Maintenance / Adjust
A5.05. 11.06.06.02
M20/M25/M32/M43
en / 26.11.2010 IB025583 2/2
11
3. Adjustment of switching point

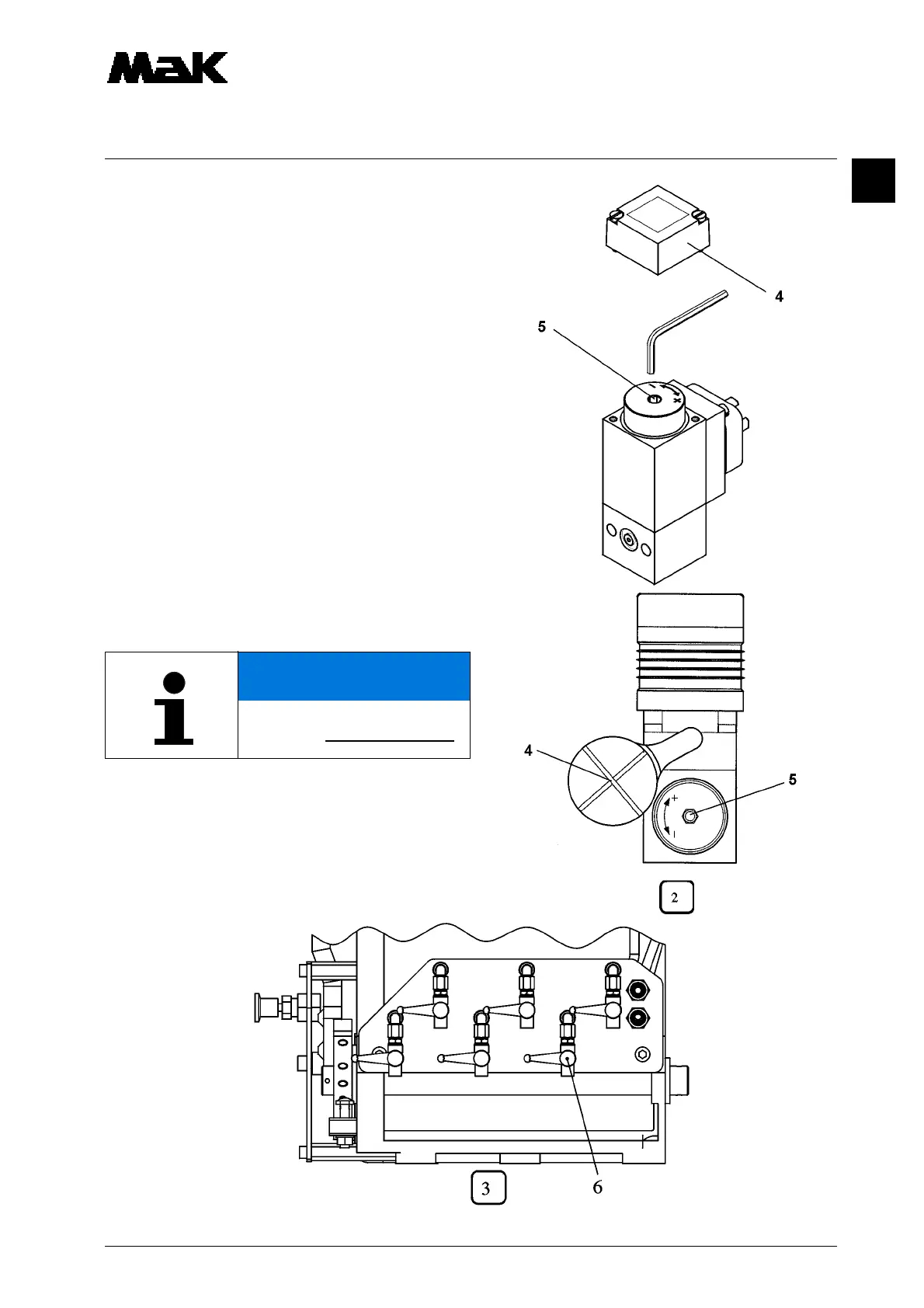

3.1 Remove cover (Fig. 2/4).
3.2 By turning the hexagon socket screw
(5) the switching point can be adjusted
correspondingly.
4. Assembly:
4.1 Mount cover (4).
4.2 Remove pressure calibrating device (W1).
4.3 Clip on plug to the pressure switch.
4.4 Open shut-off valve (Fig. 3/6) of the
corresponding medium to the pressure pipe.
NOTE
Replacement of the complete
switch, see A5.05.11.06.05.nn.
