Valve Rocker Brackets
Maintenance / Disassembly and reassembly
A5.05. 01.02.01.00
M20
en / 30.09.2010 IB001341 2/2
01

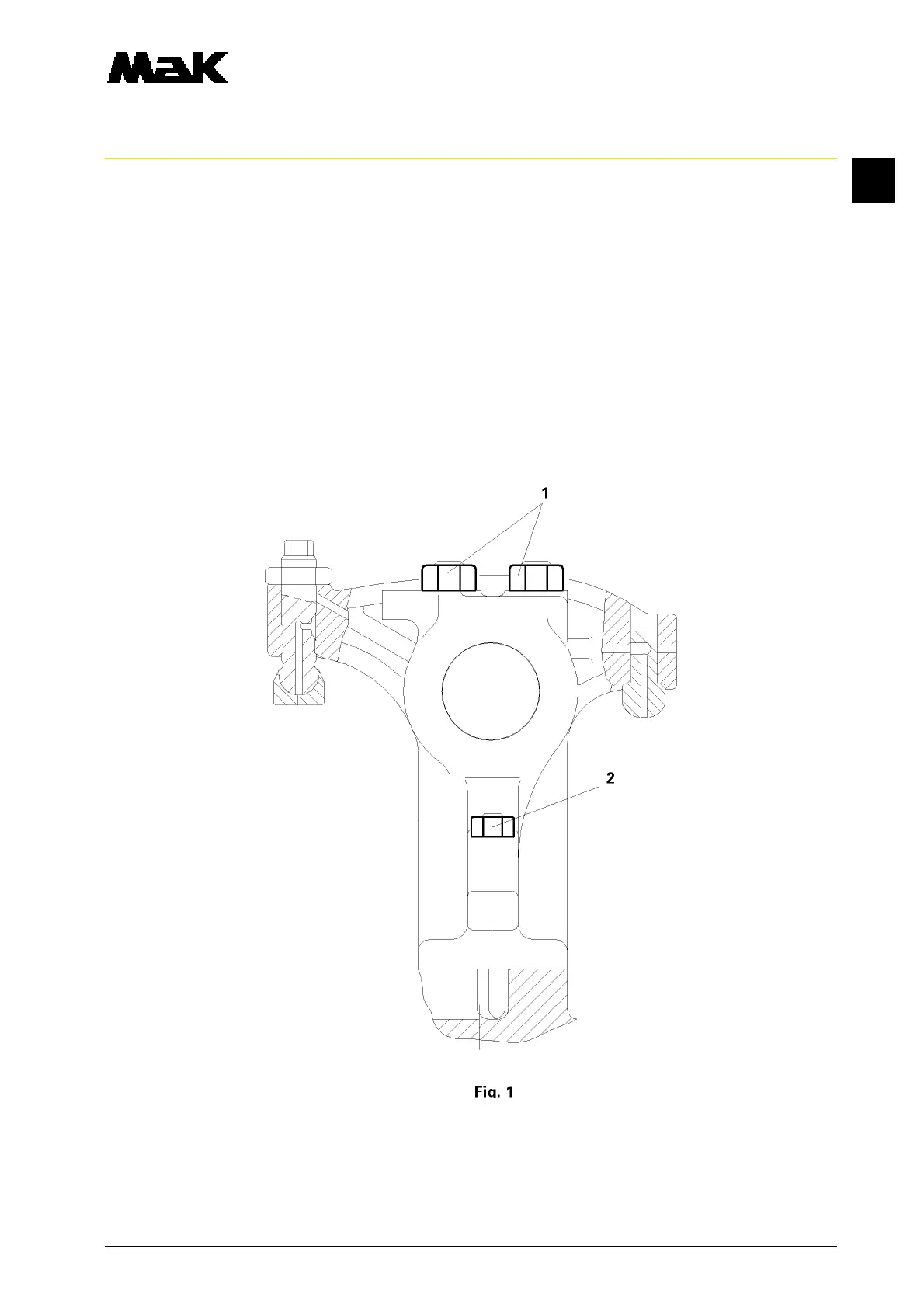

2.4 Grease the thread and nut contact face with Molykote paste “G-Rapid Plus” and tighten the nuts
gradually (1) with a
Torque of 120 Nm
and nuts (2) with a
Torque of 60 Nm.
2.5 Set the valve clearance (01.01.01 nn).
2.6 Perform the oil flow control.
2.7 Fit the cylinder head cover (inspect the gasket).
