Valve Rocker
Maintenance / Disassembly and reassembly
A5.05. 01.02.02.00
30000
M20
en / 30.09.2010 IB021075 3/3
01
6. Reassembly
6.1 Oil surfaces of the bushes of the inlet val-
ve rocker (Fig. 1/3) and exhaust valve rok-
ker (4) and rocker axle and carefully move
the valve rocker onto the axle. Do not tilt
valve rocker.
6.2 Fix the valve rocker with supporting disc
(2) and circlip (1) axially.
6.3 Mount the valve rocker bracket on the cy-
linder head (01.02.01.nn) and carry out
lube oil flow control.

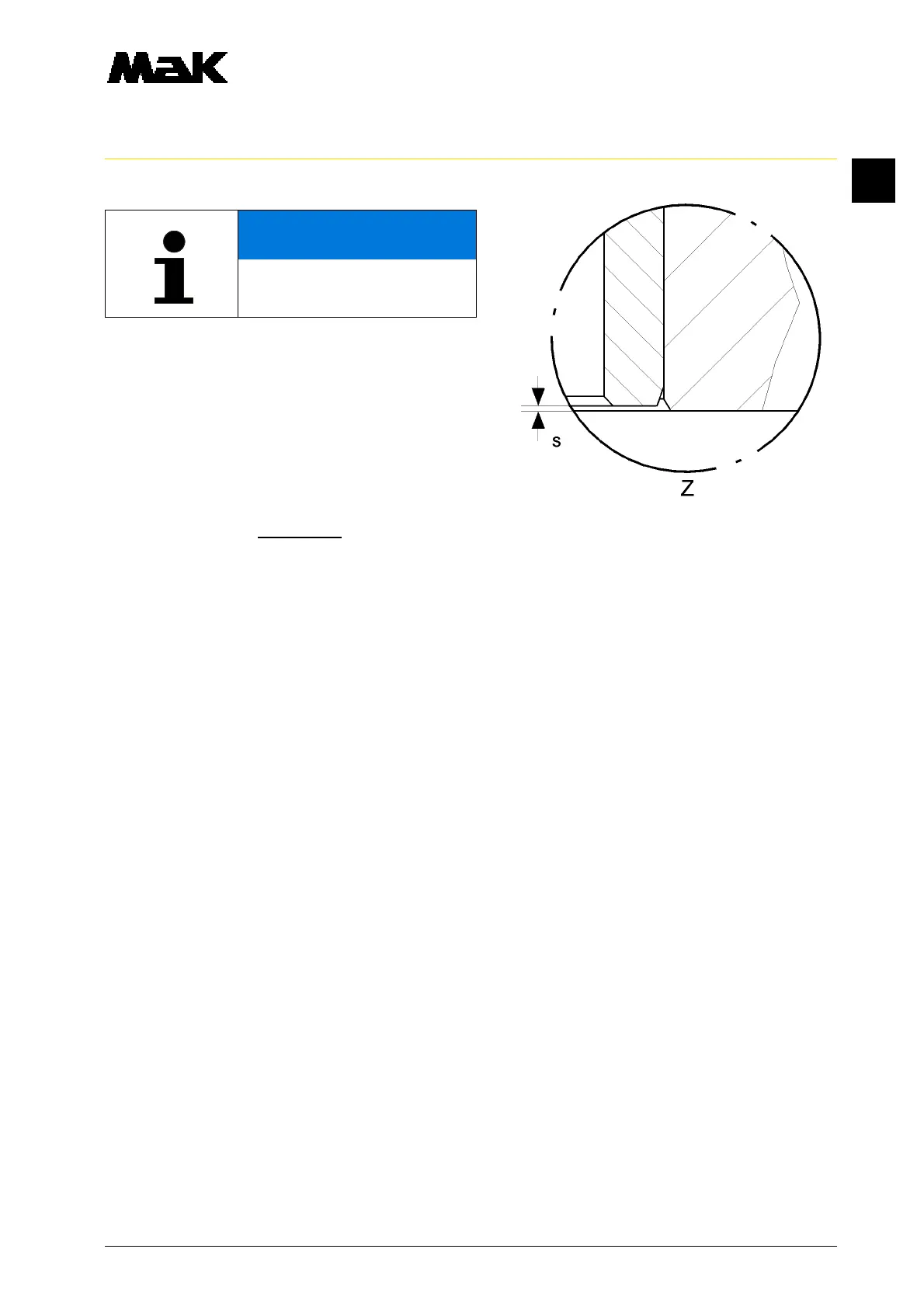

NOTE
Valve rocker axle must be un-
damaged and free of burrs.
