MAK M 20 - Page 59

Media line
Maintenance / Disassembly and reassembly
A5.05. 01.05.50.00
M20
en / 31.05.2010 IB003153 1/3
01
See also:
Spare parts list: B1.05.01.2.2144
Time requirement: 1 Pers./ 0,25 h
Personnel qualification: skilled engine hand
--------------------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
Auxiliary material:
soft green soap*
* or product of equal standard
Sequence of operations:
1. Disassembly

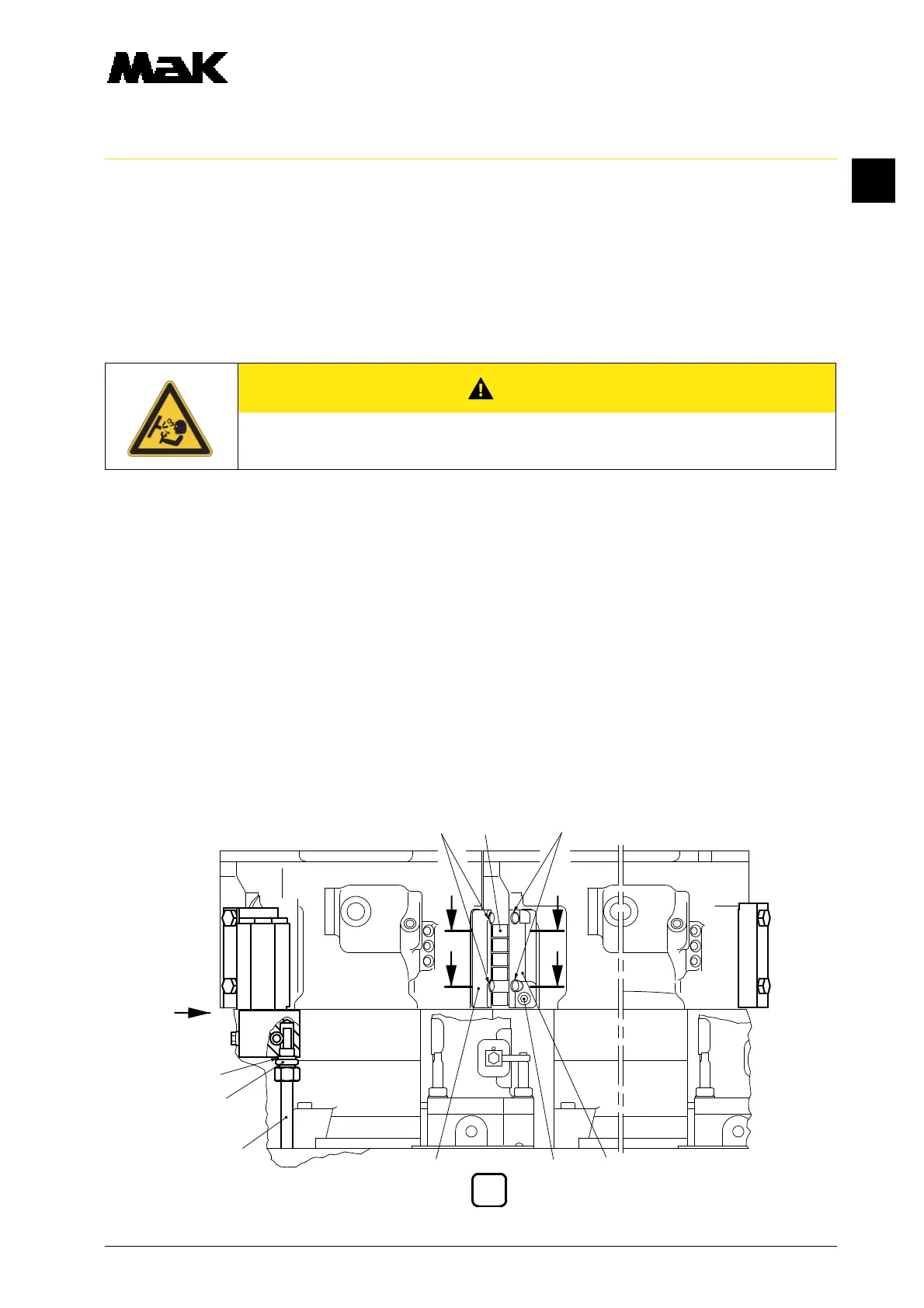

1.1 Disassemble lubricating oil line for the injection pump (fig. 1/1) at the flange (3b) of the media li-
ne.
1.2 Remove cheese head screws (2).
CAUTION
Depressurize system before commencing work.
