Make Mendel RapidBot Mega - Step 2: Y Plate Assembly

MAKE MENDEL Page 13
Step 2: Y Plate

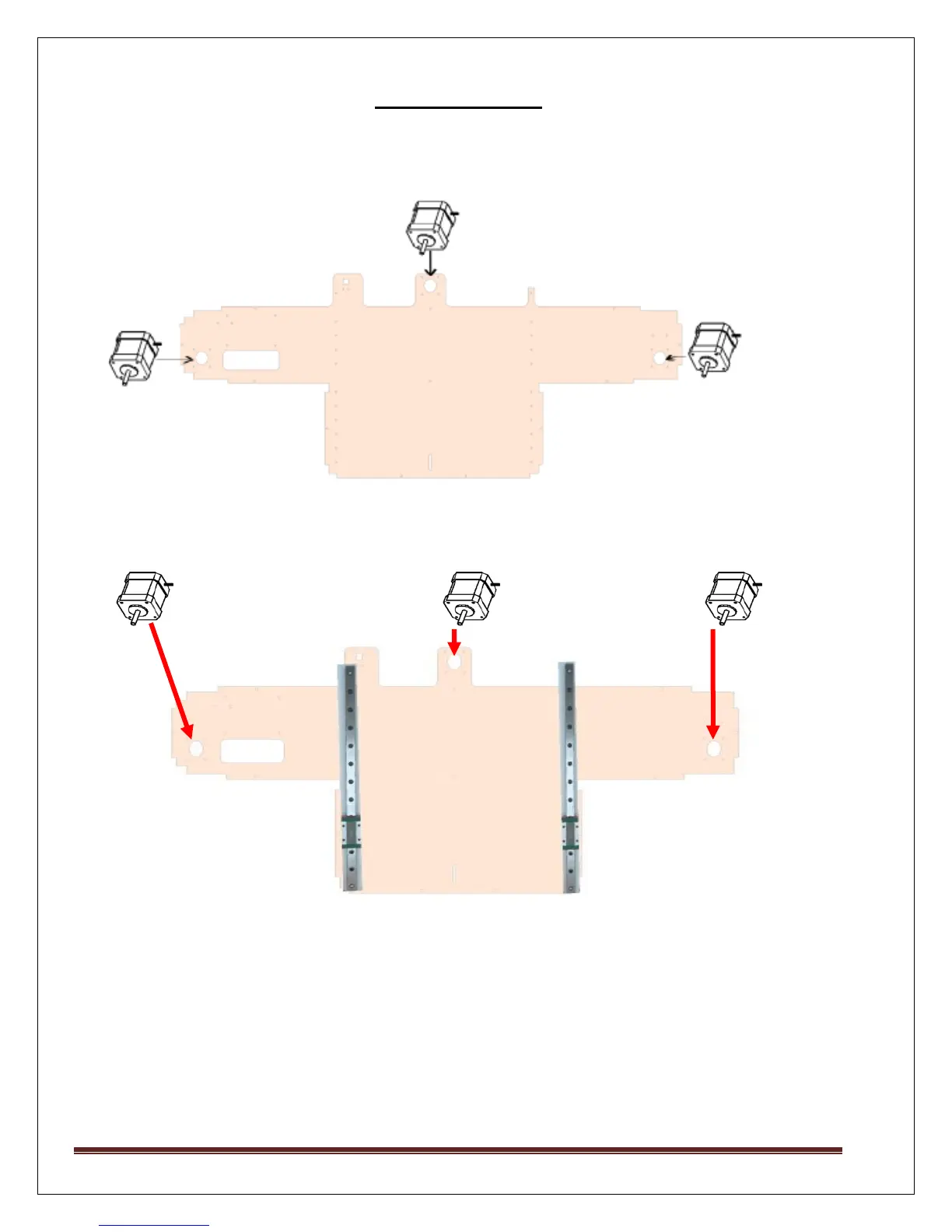

1. Part No: 17 is Y Plate. Fix three Motors (2Z and 1Y) using M3 x 12 Screws.
2. On Y plate place two small size rails along with block. Use M3 x 20 screws at both the corners
of each rail. Use M3 x 15 screws at the middle of each rail alternatively.
