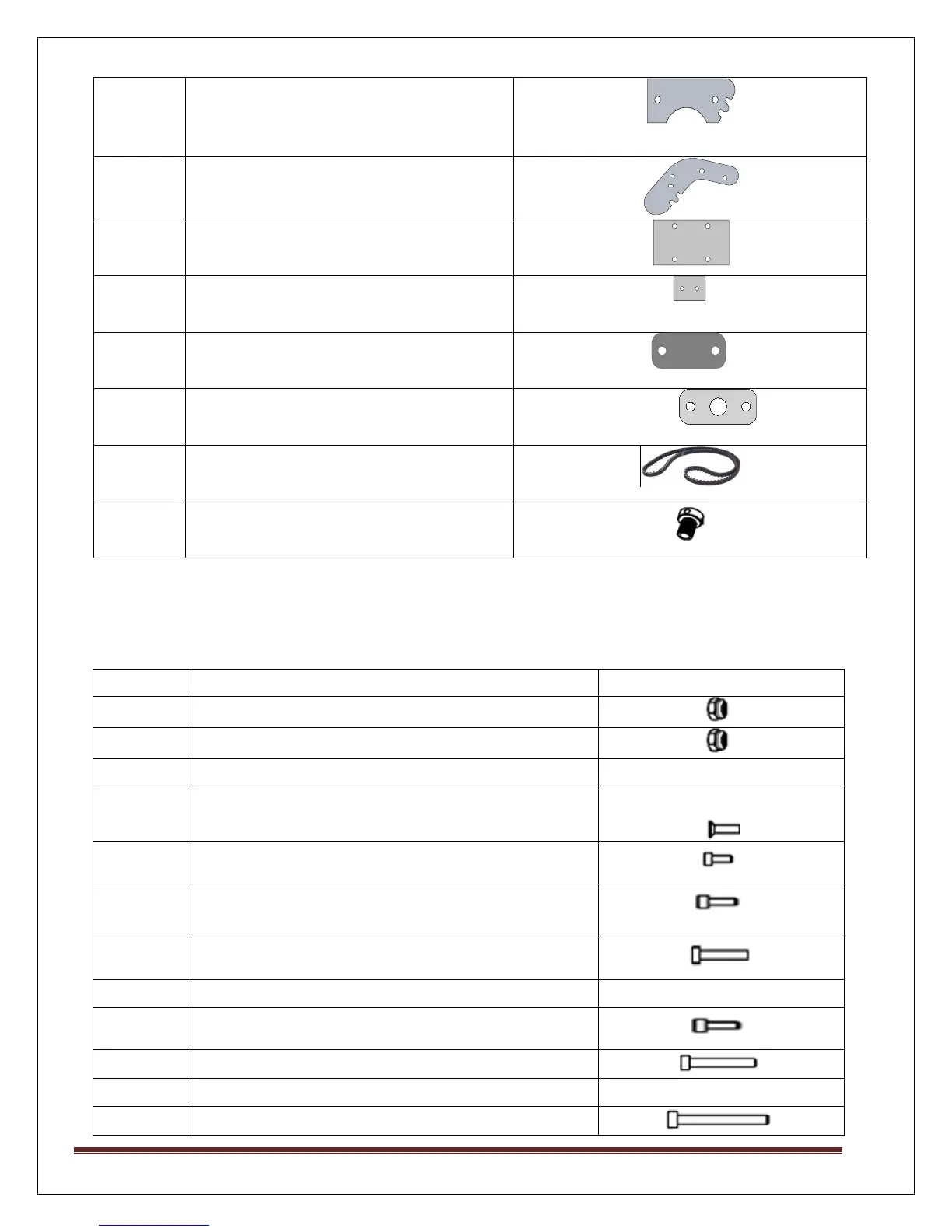

Make Mendel RapidBot Mega - Hardware Components

MAKE MENDEL Page 4
1
Driven Holder
1
Idler Holder
1
Y-Rail Top Plate
1
Acrylic support for Z Mechanical
switch
2
Smooth Rod Cap
2
Cap screw for smooth rod
2
X and Y Belts(GT2-700 mm)
4
Brass Insert piece
HARDWARE
Qty
Part
Drawing
17
M3 Nylock Nut
40
M4 Nylock Nut
10
M2.5 Nut – & Screw Philips
4
M3 X 8 Philips Screw
22
M3 x 12 Socket Cap Screw
5
M3 x 15 Socket Cap Screw
17
M3 x 20 Socket Cap screw
4
M3 x 25 Counter Sink Cap Screw
14
M4 x 20 Socket Cap screw
19
M4 x 25 Socket Cap Screw
2
M4 x 25 Counter sink Cap Screw
2
M4 x 40 Socket Cap Screw
