Make Mendel RapidBot Mega - Belt

MAKE MENDEL Page 14

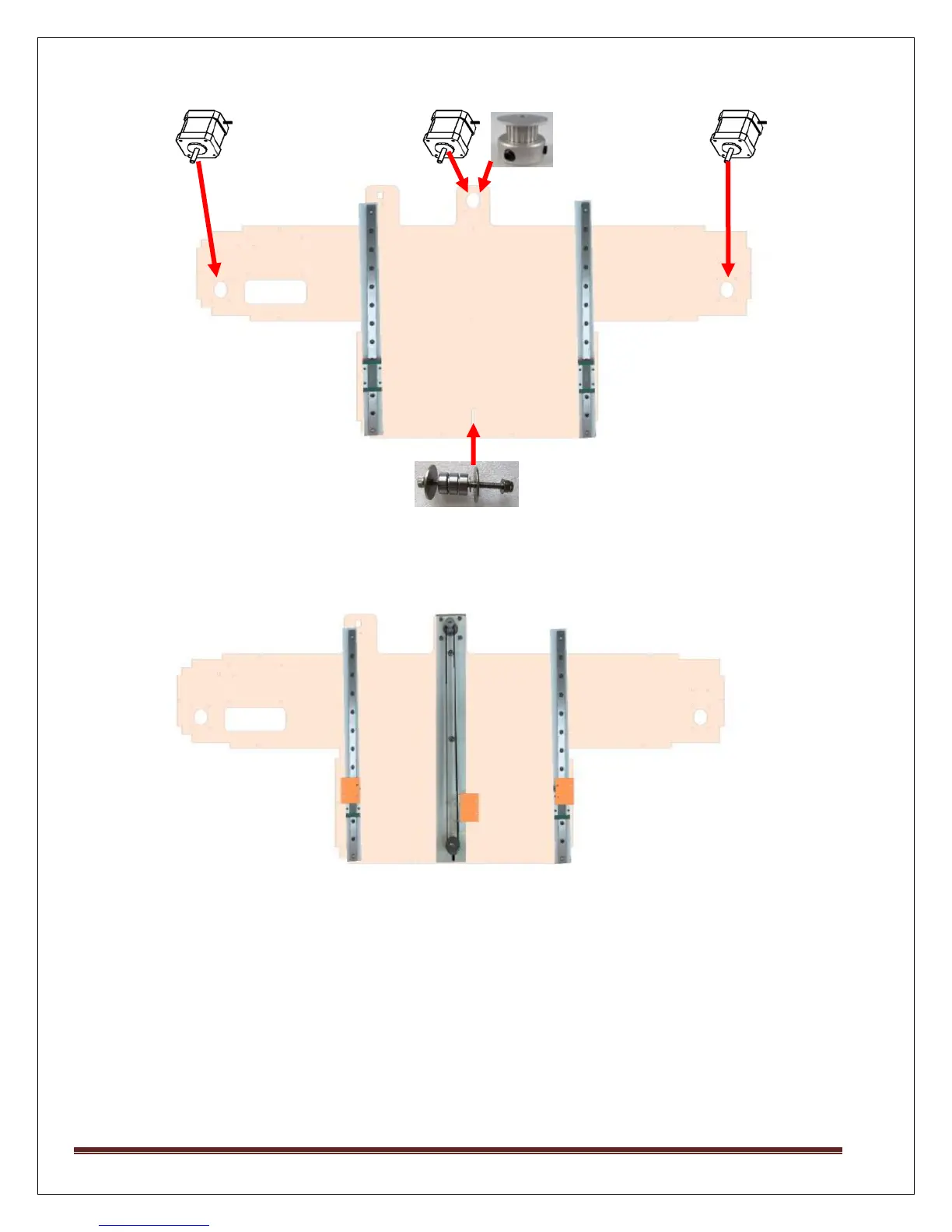

3. Fix GT2 Pulley to the shaft of Y Motor and opposite to it place 624 bearing.
4. On Both the rails place acrylic piece (part no 12 & 14). Attach part no.13 with the GT2 belt
using ties. Fix the GT2 belt between GT2 pulley and 624 bearing.
