Make Mendel RapidBot Mega - Page 15

MAKE MENDEL Page 15

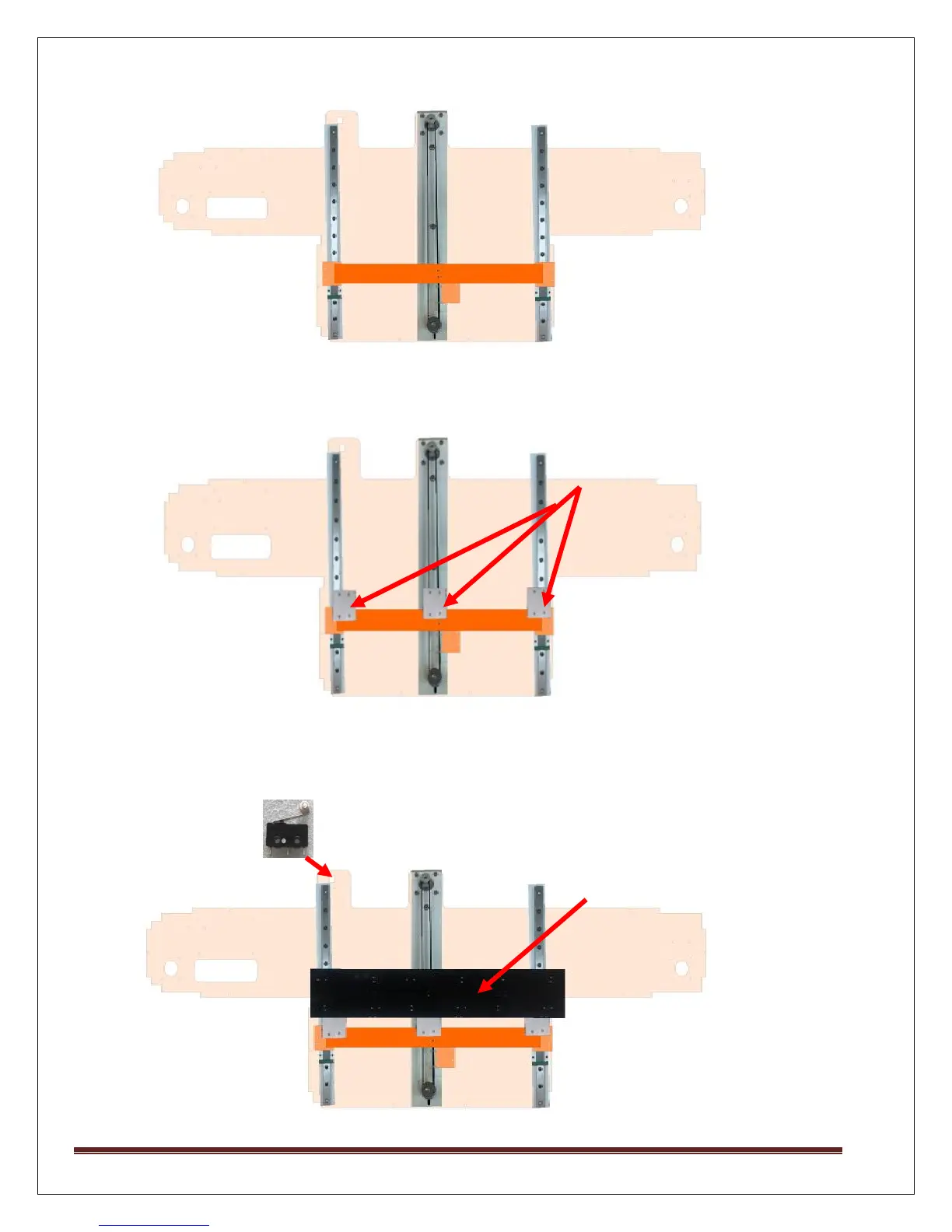

5. Place Part no.6 on part no. 12, 13 & 14.
6. Use PTFE stain relief above part no.6.
7. Place aluminium printbed above PTFE stain relief. Use M2.5 x 20 screws for mechanical
switch to fix. Part no. 23 .
PTFE Stain Relief
Aluminium Printbed
Mechanical
Switch
