MAKE MENDEL Page 16
8. Use M3 x 25 screws at each corner of aluminium printbed to set 1 and set 3. Use M4 x 25
countersink screws to fix set 2.
(Refer image of Step 6. for set 1, 2 & 3).
9. Use Part no. 20, 21 &24 to give support to Y plate at bottom side. Use M4 x 25 screws.

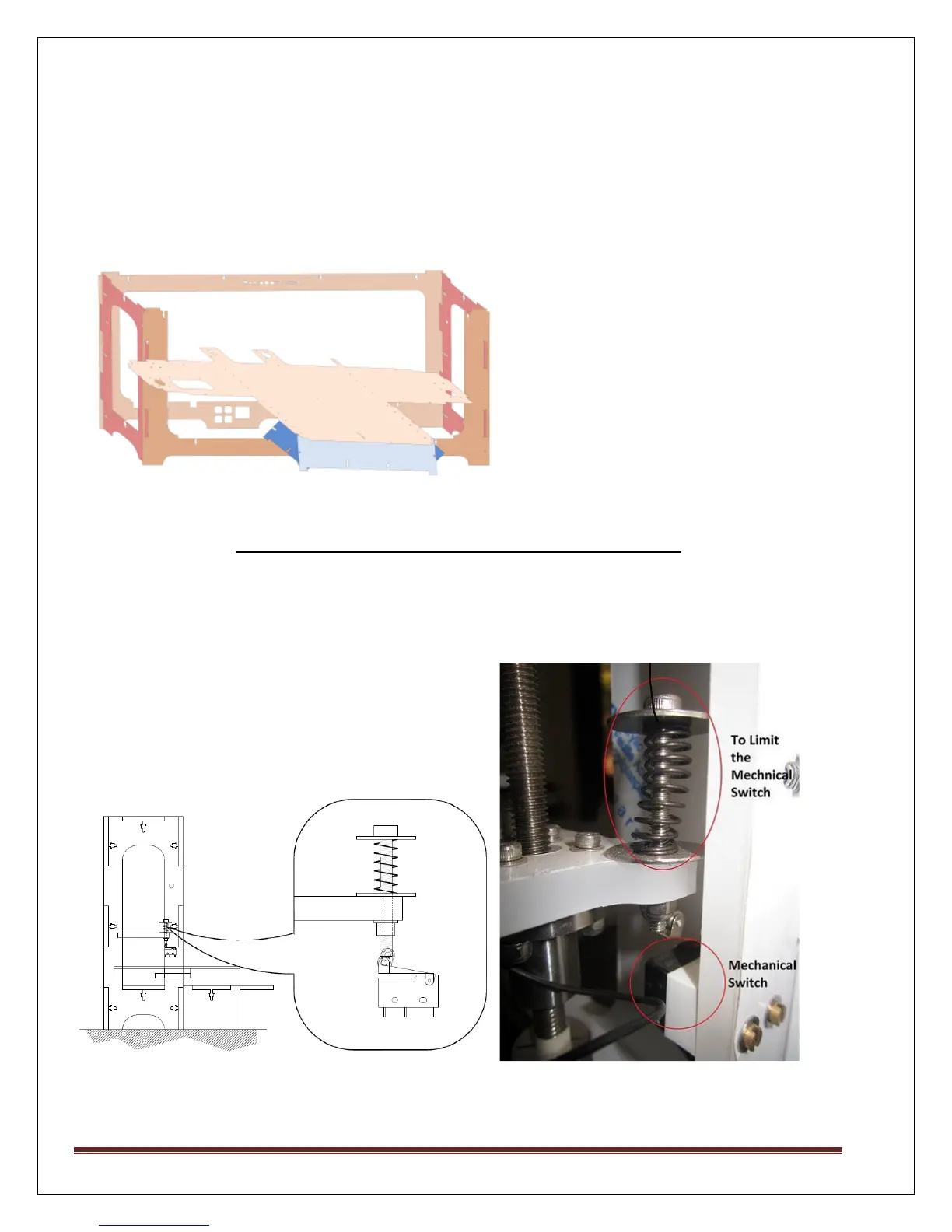

STEP 3: Z Mechanical Switch Assembly
1. Using Acrylic part and Screws given place the mechanical switch Under X
Motor, behind Threaded rod On Left side of the machine.
2. Assemble M4 Nylock, M4x40 Screw, Soft Spring, Washer and place above the
Mechanical switch to limit the switch.
