Step 4: X plate

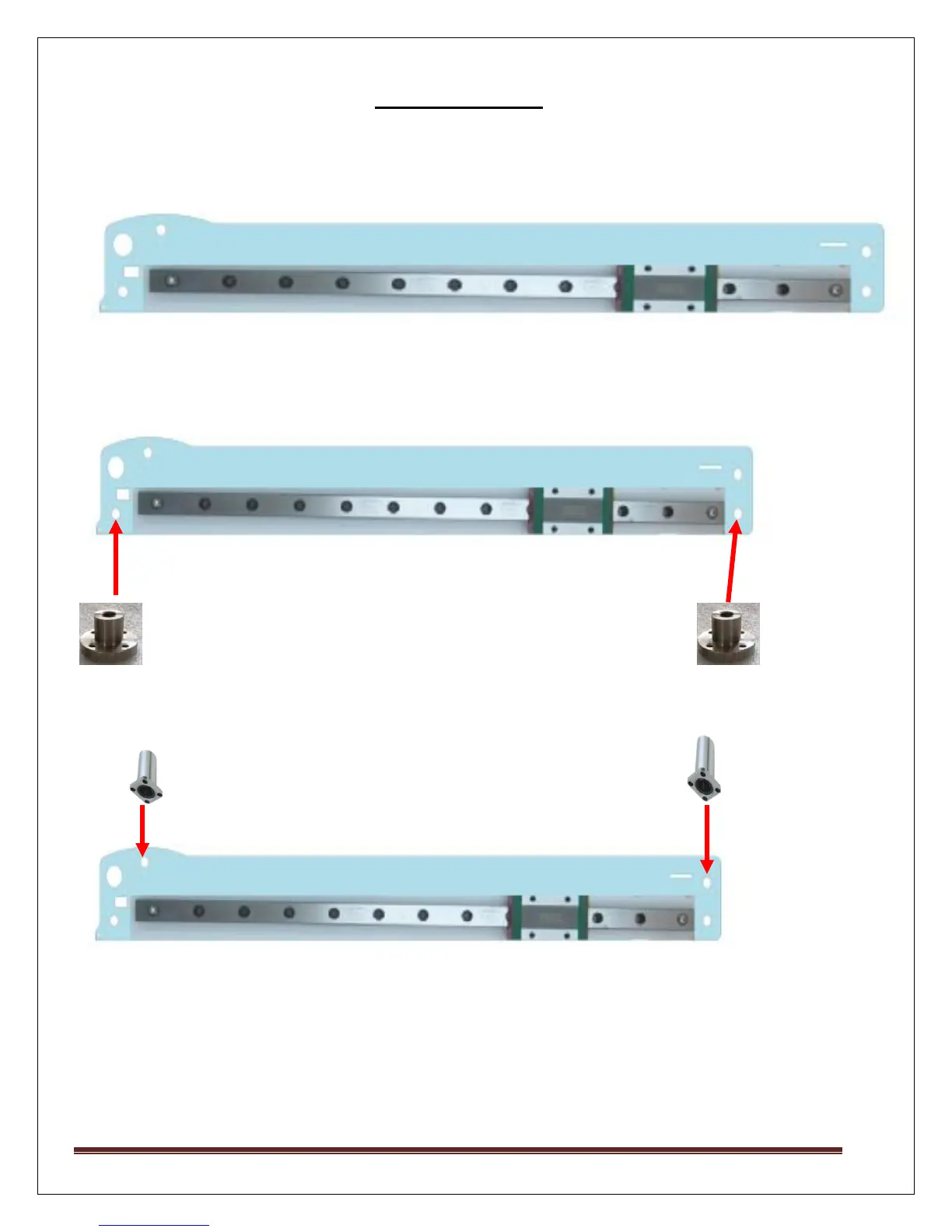

1. Place Larger rail on X plate (Part No.7). Use M3 x 20 screw at the corner of rail Use M3 x 15
screws alternatively in the middle of rail.
2. Use flange nut at both the ends of Rail. Use M3 x 20 screws to fix the Flange nut.
3. Fix 2 flange bearings opposite to flange nut using M3 x 20 screws.
