Make Mendel RapidBot Mega - Page 18

MAKE MENDEL Page 18

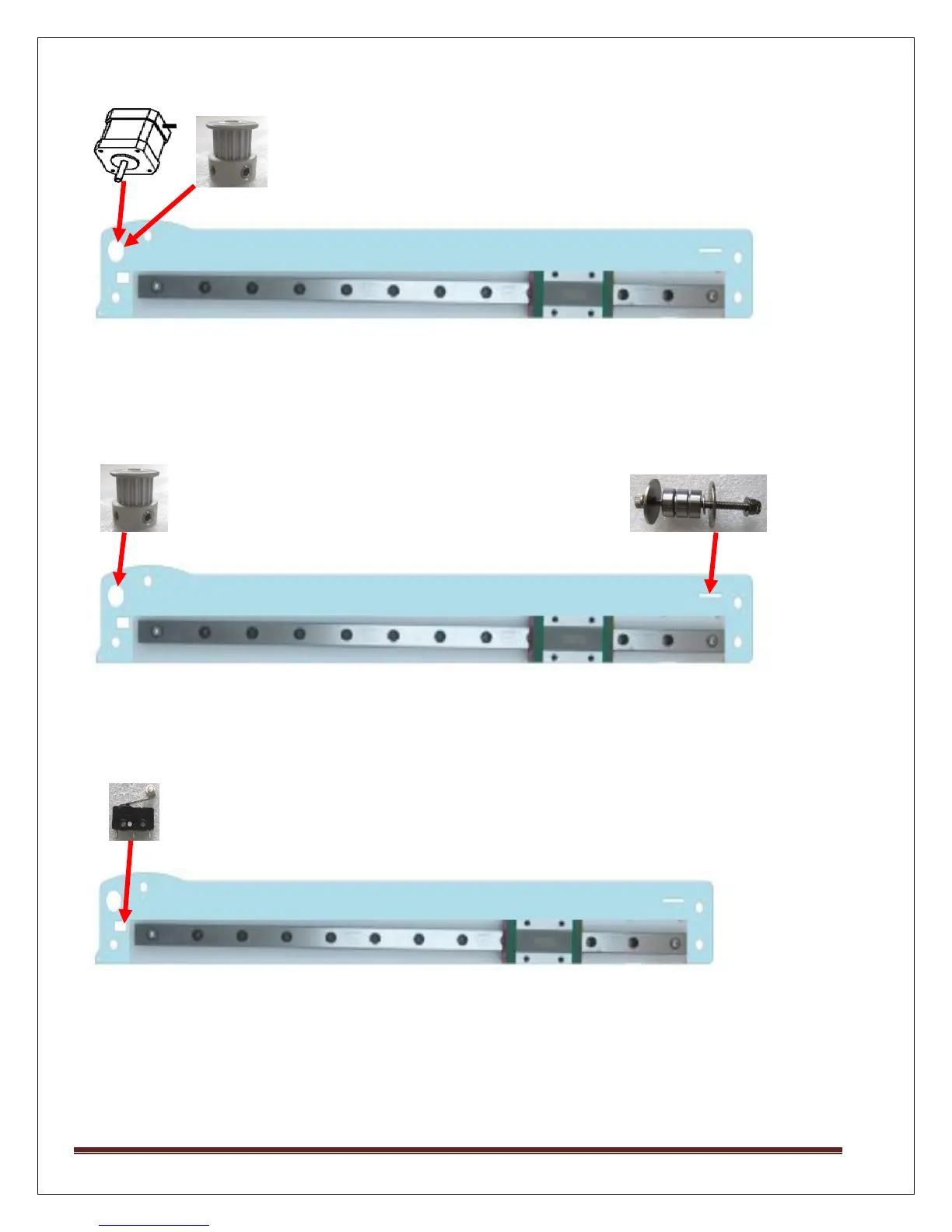

4. Fix X-Motor using M3 x 12 screws. Fix T2.5 Pulley to the motor shaft.
5. Fix 624 bearing next to right flange bearing. Attach T2.5 Belt between T2.5 Pulley and 624
Bearing.
6. Place X mechanical switch using M2.5 x 20 Screws.
