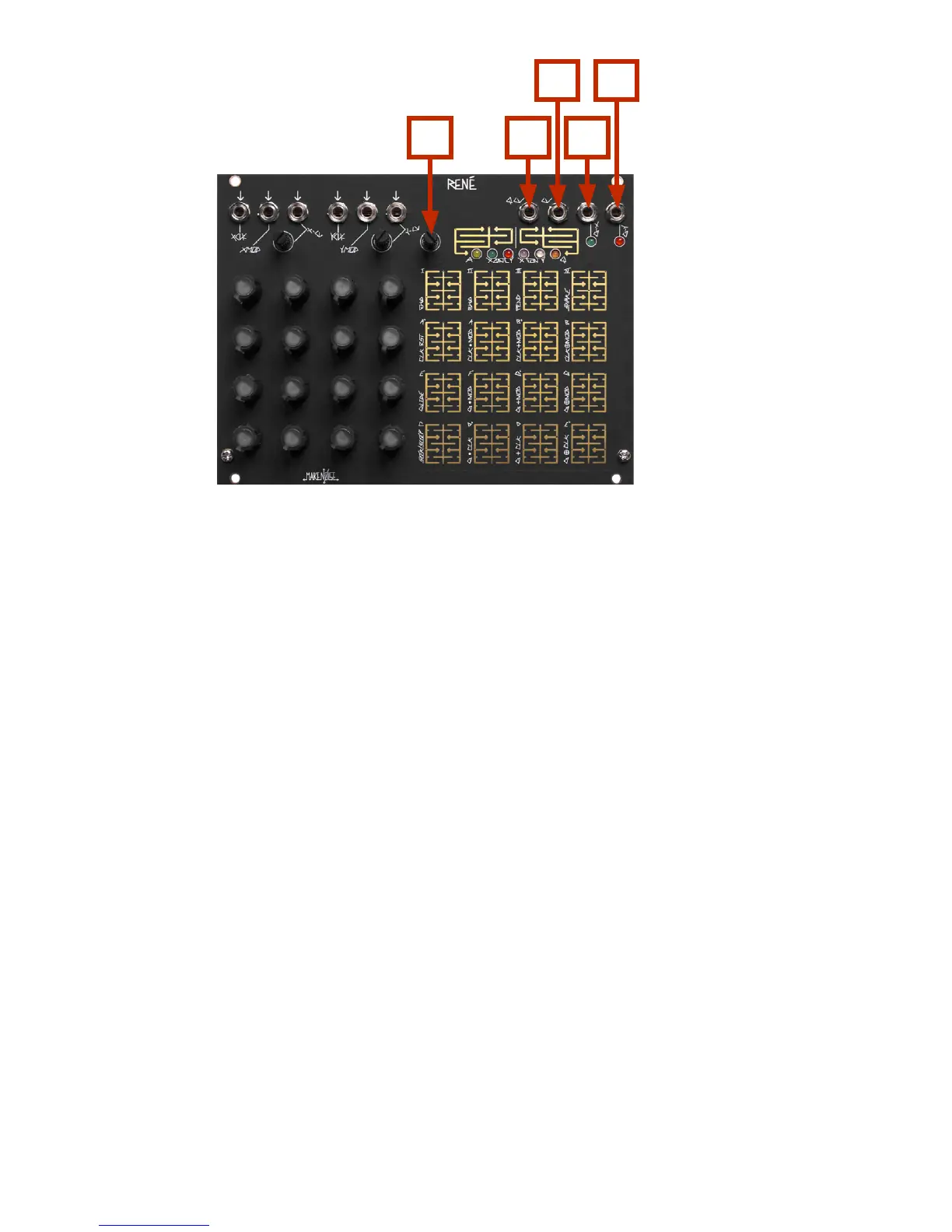

René Panel Controls (cont’d)
Sensivity:
9. Touch Grid sensitivity control. To increase sensitivity, set the position 100% clockwise.
Outputs:
10. QCV: The Quantized Control V
oltage for the currently active location will appear at this output. QCV
may also yield a Stored Quantized Voltage (if selected on Q Page), in which case the
corresponding location potentiometer is no longer “live.” Value: 4 octaves.
11. CV: An unquantized Control Voltage of the currently selected location will appear at this output. At
the CV OUT, the location potentiometers are always “live.” Value: 0 to 4.5V.
12. Gate X: This output reects the ProGraMming on the X-Gate Page. When René arrives at a location,
and the location is set to ON (lighted) at the X-Gate PGM Page, this output goes HI for duration
determined by the XCLK width and any ProGraMmed Logic Operations that Axis Clock or Gate.
When counting SNAKE style, the Gate output is always a skinny pulse (2ms) perfect for ringing
LoPass Gates. Value: 0V or +8V.
13. Gate Y: This output reects the ProGraMming on the Y-Gate Page. When René arrives at a location,
and the location is set to ON (lighted) at the Y-Gate PGM Page, this output goes HI for duration
determined by the YCLK width and any ProGraMmed Logic Operations aecting the Axis Clock or
Gate. When counting SNAKE style, the Gate output is always a skinny pulse (2ms) perfect for
ringing LoPass Gates. Value: 0V or +8V.
