3. Assembly Requirements

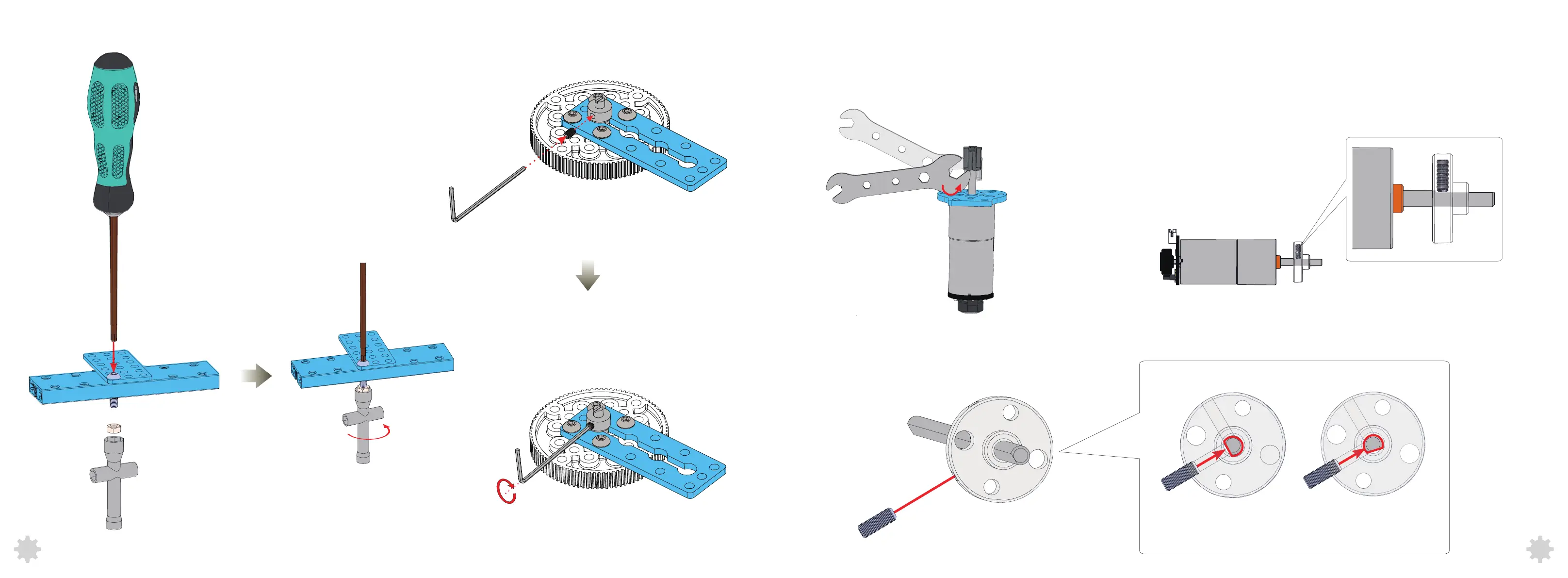

① Disassemble Gear 8T ② Tighten the Headless Set Screw and make sure the screw is pushing against the
D-shape plane
③ Headless Set Screw require alignment with the D-shaped plane
O
X
12 13
