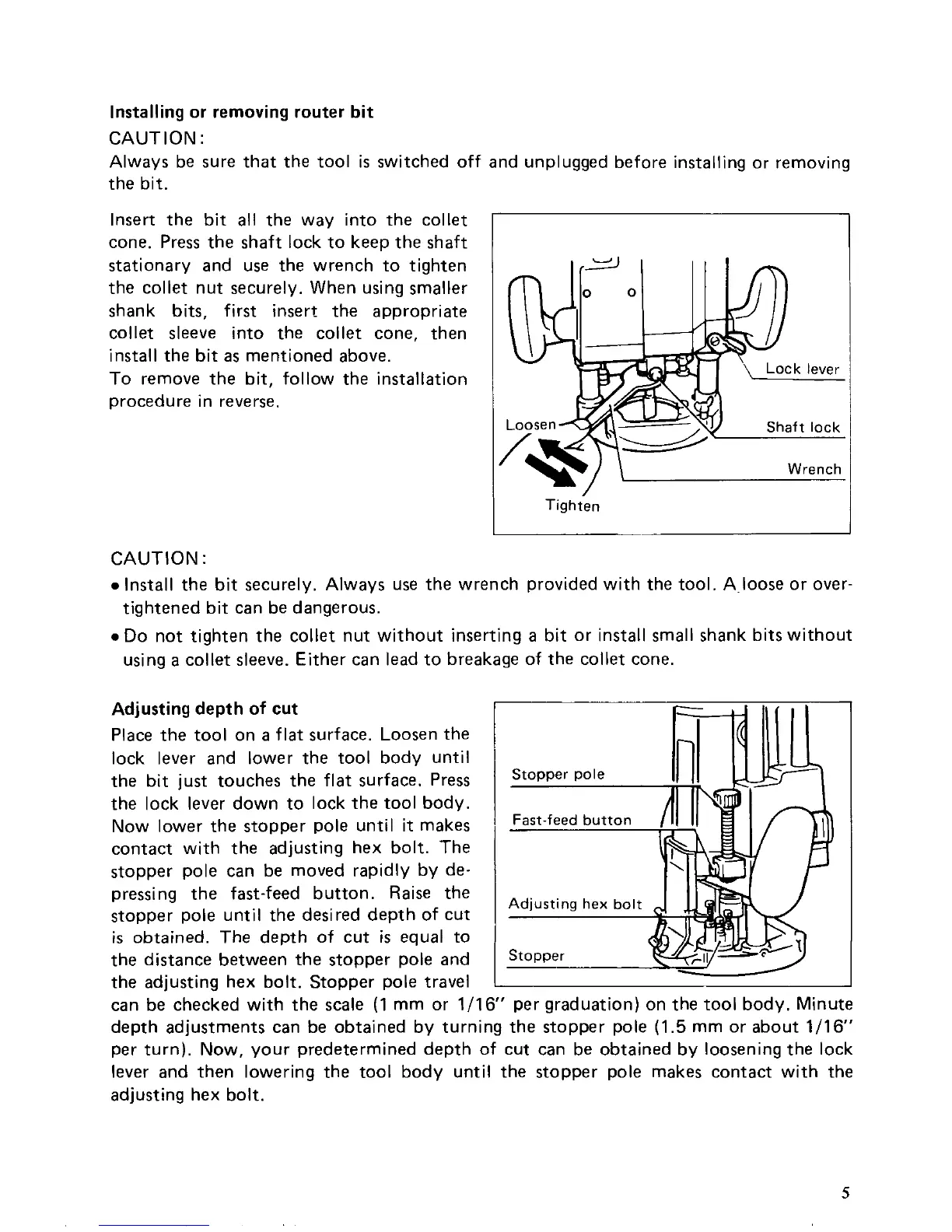

Installing or removing router bit
CAUTION
:
Always be sure that the tool
is
switched off and unplugged before installing or removing
the bit.
Insert the bit
all
the way into the collet
cone. Press the shaft lock to keep the shaft
stationary and use the wrench to tighten
the collet nut securely. When using smaller
shank bits, first insert the appropriate
collet sleeve into the collet cone, then
install the bit
as
mentioned above.
To remove the bit, follow the installation
procedure in reverse.
I
/
Tighten
CAUTION
:
Install the bit securely. Always use the wrench provided with the tool. A.loose or over-
0
Do
not tighten the collet nut without inserting
a
bit or install small shank bits without
tightened bit can be dangerous.
using
a
collet
sleeve.
Either can lead to breakage of the collet cone.
Adjusting depth
of
cut
Place
the tool on
a
flat surface. Loosen the
lock lever and lower the tool body until
the bit just touches the flat surface. Press
the lock lever down to lock the tool body.
Now lower the stopper pole until it makes
contact with the adjusting hex bolt. The
stopper pole can be moved rapidly by de-
pressing the fast-feed button. Raise the
stopper pole until the desired depth
of
cut
is
obtained. The depth of cut
is
equal
to
the distance between the stopper pole and
the adjusting hex bolt. Stopper pole travel
can be checked with the scale
(1
mm or
1/16’
per graduation) on the tool body. Minute
depth adjustments can be obtained by turning the stopper pole
(1.5
mm or about
1/16’
per turn). Now, your predetermined depth of cut can be obtained by loosening the lock
lever and then lowering the tool body until the stopper pole makes contact with the
adjusting hex bolt.
