10

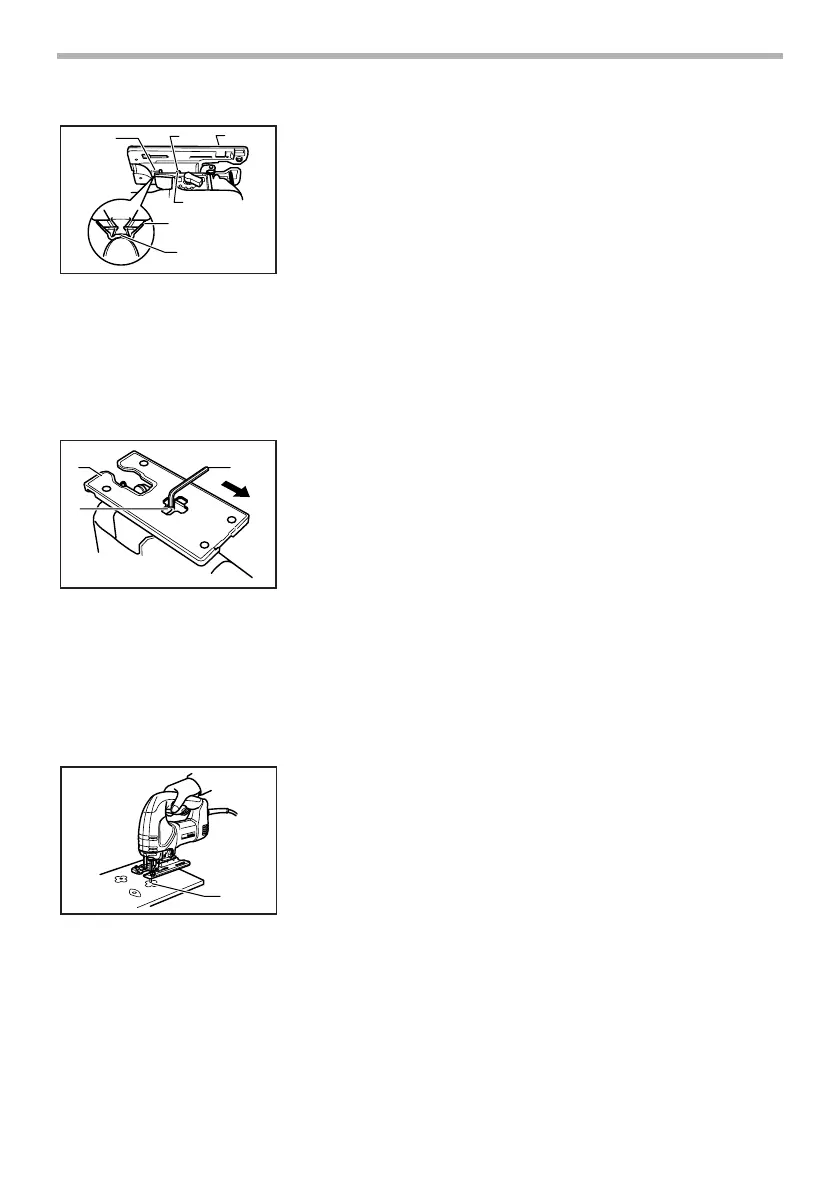

Tilt the base until the desired bevel angle is obtained. The V-
notch of the gear housing indicates the bevel angle by gradu-
ations. Then tighten the bolt firmly to secure the base.
Front flush cuts
Loosen the bolt on the back of the tool base with the hex
wrench, then move the tool base all the way back. Then
tighten the bolt to secure the tool base.
Cutouts
Cutouts can be made with either of two methods A or B.
A) Boring a starting hole:
For internal cutouts without a lead-in cut from an edge,
pre-drill a starting hole 12 mm (1/2”) or more in diameter.
Insert the blade into this hole to start your cut.
1. Graduations
2. Bevel slot
3. Base
4. V-notch
5. Bolt
6. Gear housing
1
23
4
6
5
001916
1. Base
2. Bolt
3. Hex wrench
1
2
3
001917
1. Starting hole
1
001918
