Makita 4350T Technical Information

P 13 / 14

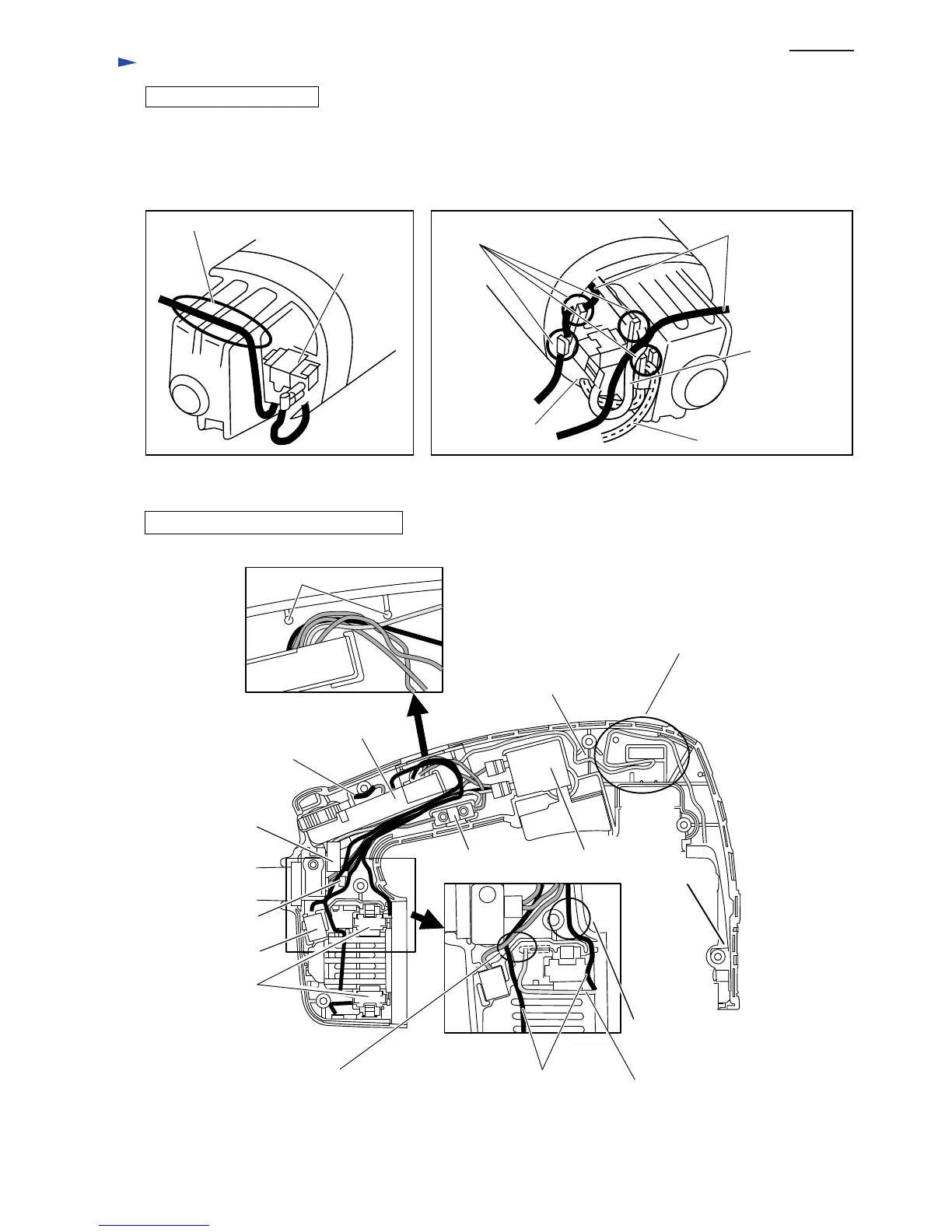

Wiring
Route Field lead wires (black and white) and Earth lead wire (transparent)
for Noise suppressor as illustrated in Figs. D-2 and D-3.
Put each lead wire into Lead wire holders.
Do not slack the lead wire from rear side of Motor housing to inside of Handle.
Lead wire holders of Motor housing
Rear side of Motor housing
Lead wire holders of
Motor housing
Brush holder
Pins
Route Lead wires to the inside of Pins
Put LED lead wire into
lead wire holder.
Controller (if used)
Switch
Pick-up coil
Brush holder
Put Controller lead wire
(brief sized one) with tube
in this space. (if used)
Noise suppressor
(if used)
Closed end splice
2-SD
Put the slack of LED lead wire
in this space.
Earth lead wire
(transparent): if used
Installation hole
for Earth lead wire
Field lead wires (black)
Field lead wire
(white)
Fig. D-2
Fig. D-3
Inside of Handle for model with Controller
Route Lead wire
between boss and wall.
Terminal
black (if used)
LED (if used)
Field lead wire (white)Field lead wire (black)Route Lead wires
between rib and wall

Makita 4350T Specifications

General

Power Source	Corded Electric
Input Power	720 W
Stroke Length	26 mm
Cutting Capacity (Wood)	135 mm
Cutting Capacity (Steel)	10 mm
Variable Speed	Yes
Cutting Capacity (Aluminum)	20 mm
Orbital Settings	4
Type	Jigsaw
Bevel Capacity	0-45 degrees
