Makita 4350T Technical Information

P 12 / 14

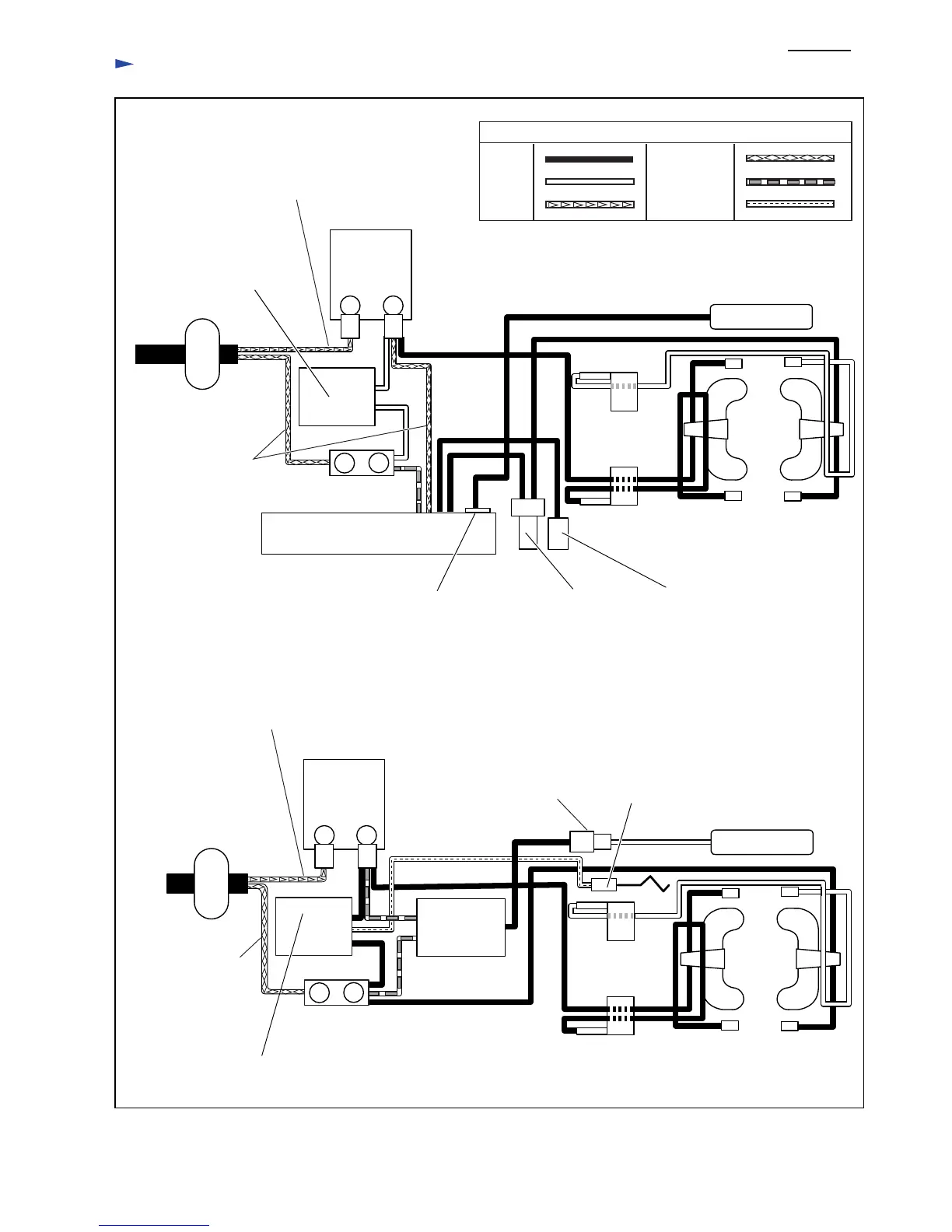

Models with controller
Fig. D-1
Models without controller
LED (if used)
LED (if used)
Switch
Pick-up coilConnector
Connector
Earth terminal
for Noise suppressor
Field
Field
Circuit diagram
Noise suppressor (if used)
Controller
Terminal block
Terminal block
Black
White
Transparent
Blue
Brown
Red
Color index of lead wires' sheath
Brush holder
Brush holder
Brush holder
Brush holder
For some countries,
black colored lead wire
is used instead of brown.
For some countries,
white colored lead
wire is used instead of blue.
For some countries,
white colored lead
wire is used instead
of blue.
Switch
For some countries,
black colored lead wire
is used instead of brown.
Noise suppressor (if used)
Note: Some noise suppressors have only two lead wires. Their lead wires' color is white.
Closed
end splice
2-SD
Power circuit
(if used)
