Makita 4350T Technical Information

Repair
P 8 / 14

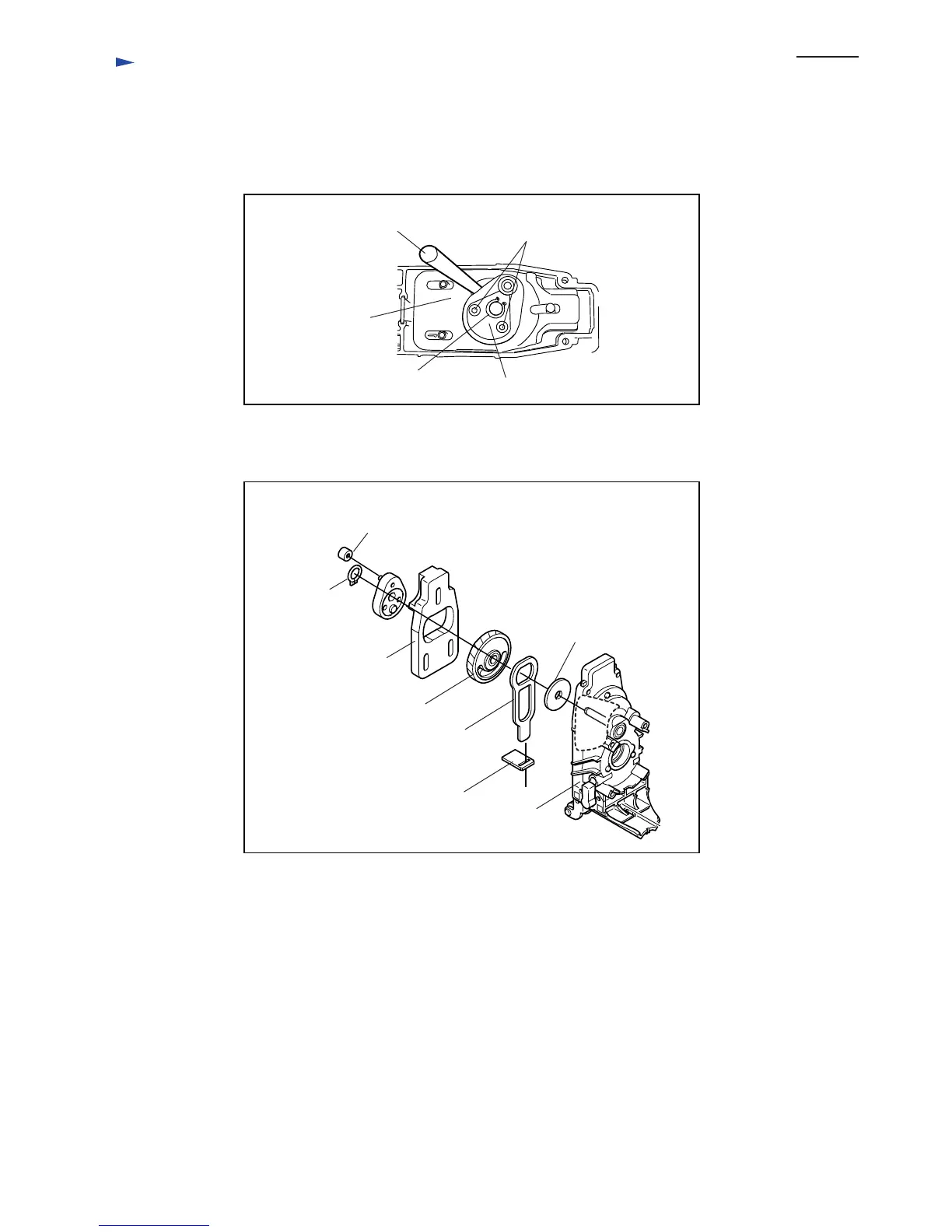

[9] Disassembling parts in Gear housing
3. Disassemble Retaining S-8 using 1R291. Then, the inner parts are disassembled from Gear housing as illustrated in Fig.25.
2 pcs. of M4x12
hex socket head bolts
Crank complete
Balance plate
1R235
Retaining ring S-8
Retaining
ring S-8
Push plate
Seal plate
Needle bearing 407
Note: Be careful not to lose Need bearing 407 when disassembling.
Flat washer 8
Gear housing
Balance plate
Gear complete
1. Do the disassembling steps of Gear housing cover as illustrated in Fig. 6.
2. While Locking Crank complete with 1R235, remove two M4x12 Hex socket head bolts. (Fig. 24)
Note: Two M4x12 Hex. socket head bolts are adhesive bolts. It is recommended to unscrew them with impact driver.
Fig. 24
Fig. 25
