Makita 4350T Technical Information

Repair
P 9 / 14

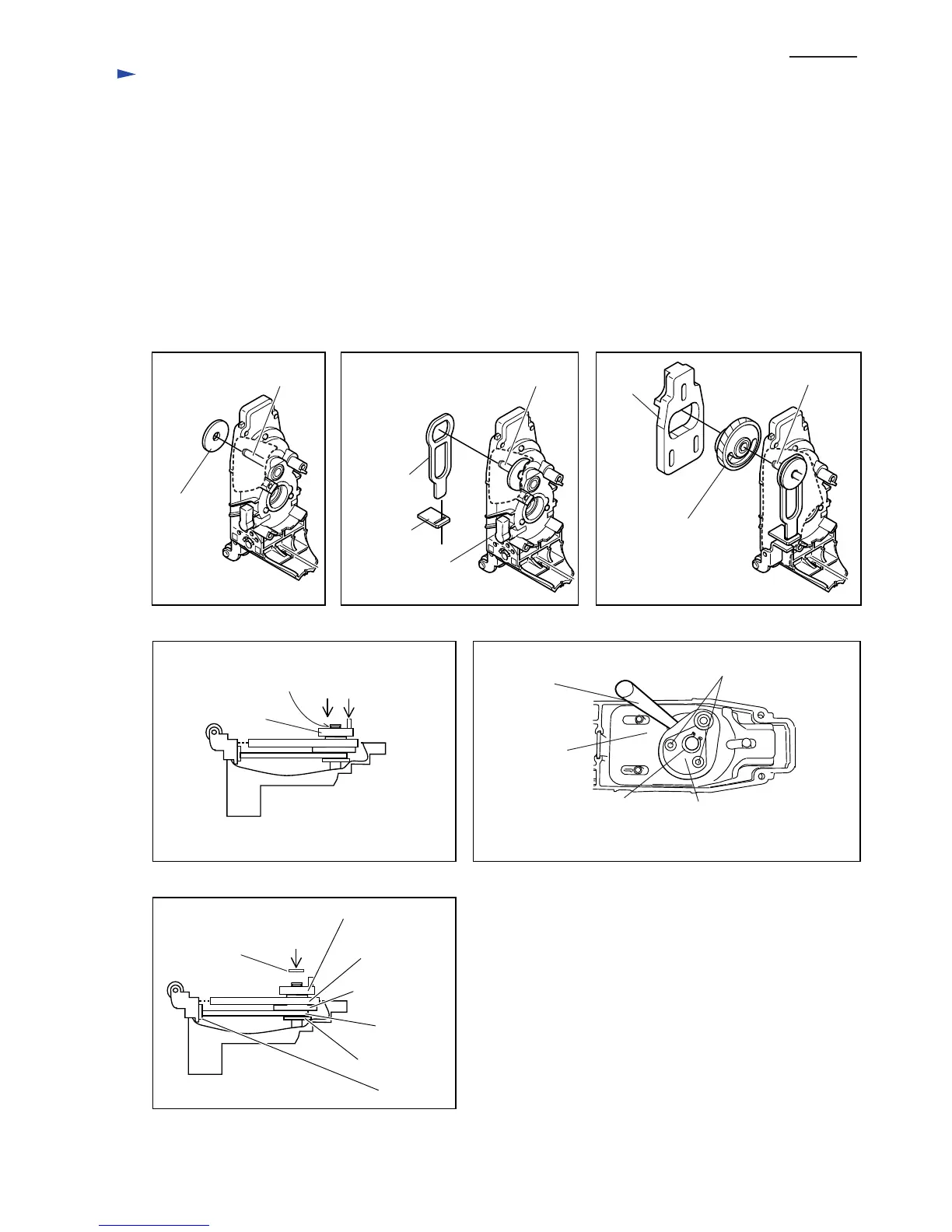

[10] Assembling parts in Gear housing
1. Pass the shaft of Gear housing through Flat washer 8. (Fig. 26)
2. After assembling Seal plate to Push plate, pass the shaft of Gear housing through Push plate with Seal plate. (Fig. 27)
3. Lubricate the parts with referring to [1] Lubrication in page 2.
4. Pass the shaft of Gear housing through Gear complete and Balance plate. (Fig. 28)
5. Assemble Crank complete to Gear housing. Push down Crank complete while turning it until the groove on
shaft of Gear housing can be seen. (Fig. 29)
6. While locking crank complete with 1R235, fasten Crank complete with two M4x12 Hex socket head bolts with
adhesive. (Fig. 30)
7. Install Retaining ring S-8 to the groove on the shaft of Gear housing using 1R291 to secure the components. (Fig. 31)
Note: Do not fasten Crank complete with the used M4x12 Hex socket head bolts. Use new M4x12 Hex socket head bolts
with adhesive. The fastening torque of these bolts has to be 2.4 - 3.5 N.m.
Flat
washer 8
Gear housing
Push plate
Seal plate
Gear complete
Balance
plate
Fig. 29 Fig. 30
Press down Crank complete until the groove
on the shaft of Gear housing can be seen.
Crank complete
M4x12 Hex socket head bolts
Crank complete
Balance plate
Retaining ring S-8
1R235
Retaining ring S-8
Flat washer 8
Push plate
Seal plate
Balance plate
Gear complete
Crank complete
Shaft of Gear housing
Groove on the shaft of Gear housing
for Retaining ring S-8
Fig. 26
Fig. 31
Fig. 27 Fig. 28
Shaft of Gear housingShaft of Gear housing
