< 4 > Disassembling gear section
< 5 > Assembling gear section

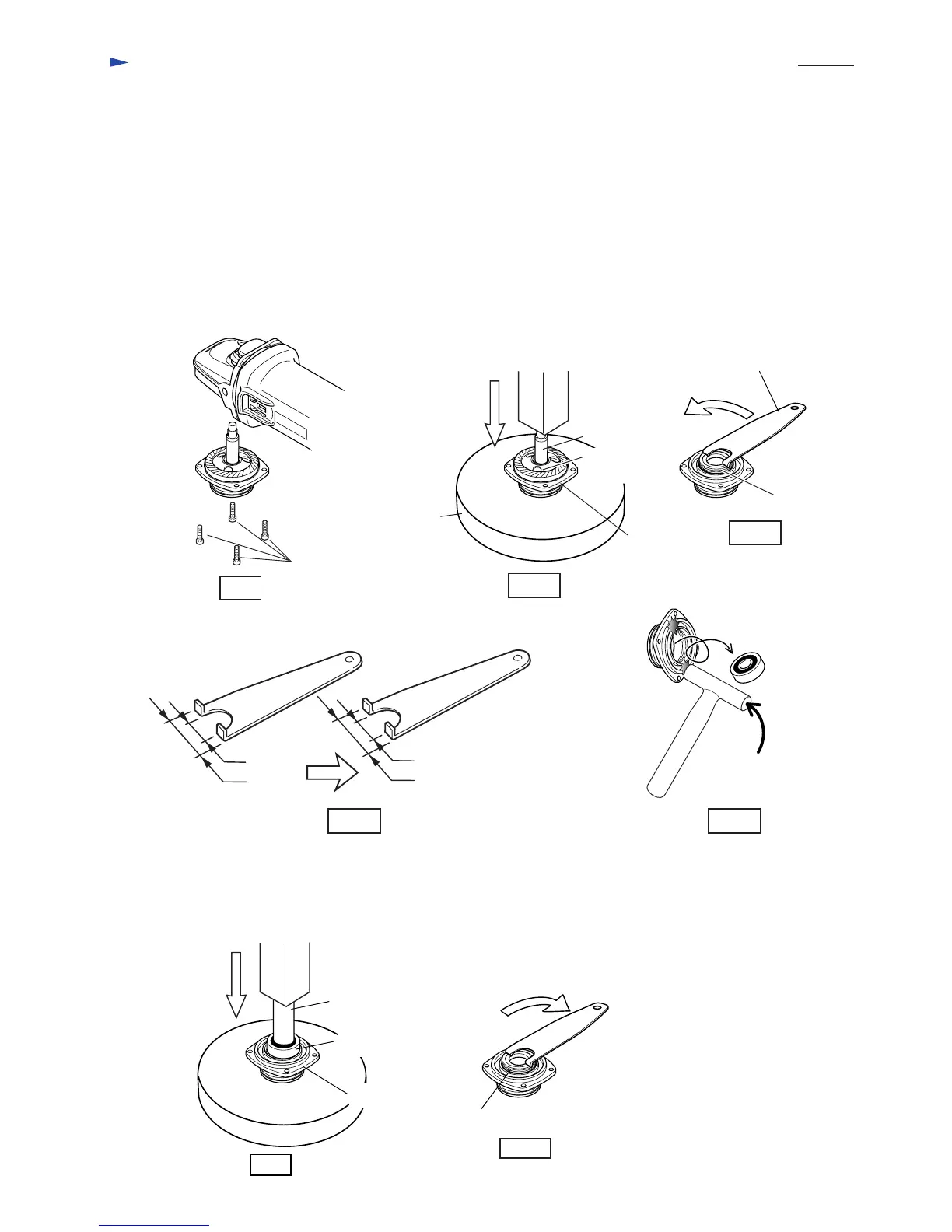

(1) Separate gear section by unscrewing 4 pcs. of hex socket head bolts M4 x 16 as illustrated in Fig 3.
(1) Assemble ball bearing 6201DDW to bearing box by pressing with arbor press as illustrated in Fig. 4.
(2) Assemble bearing retainer to bearing box by turning clockwise as illustrated in Fig. 4A.
(2) Put gear section on No.1R217 "Ring 22". And disassemble spindle from spiral bevel gear 35 by pressing
with arbor press as illustrate in Fig. 3A.
(3) Disassemble bearing retainer by turning anti-clockwise as illustrate in Fig. 3B.
(4) Disassemble ball bearing 6201DDW by slightly hitting the edge of bearing box with plastic hammer
as illustrate in Fig. 3D.
Hex socket head bolt M4 x 16
(with adhesive)
Fig 3
Fig 3A
Fig 3B
1R217 Ring 22
Spindle
Spiral bevel
gear 35
Bearing retainer
Wrench for bearing retainer
Bearing box
< Note >
For disassembling bearing retainer, remodel No.1R043 "Wrench for bearing retainer" by expanding the distance
between the spikes from 20mm to 21 or 22mm as illustrated in Fig. 3C.
20mm
32mm
21 - 22mm
32mm
Fig. 3C Fig. 3D
Ball bearing
6201DDW
Round bar for arbor
Bearing box
Fig. 4
Fig. 4A
Bearing retainer
It is recommended to unscrew hex socket head bolts M4 x 16 with impact driver,
because they are adhesive bolts.
