Makita 9566C Technical Information

Repair
P 8 / 10

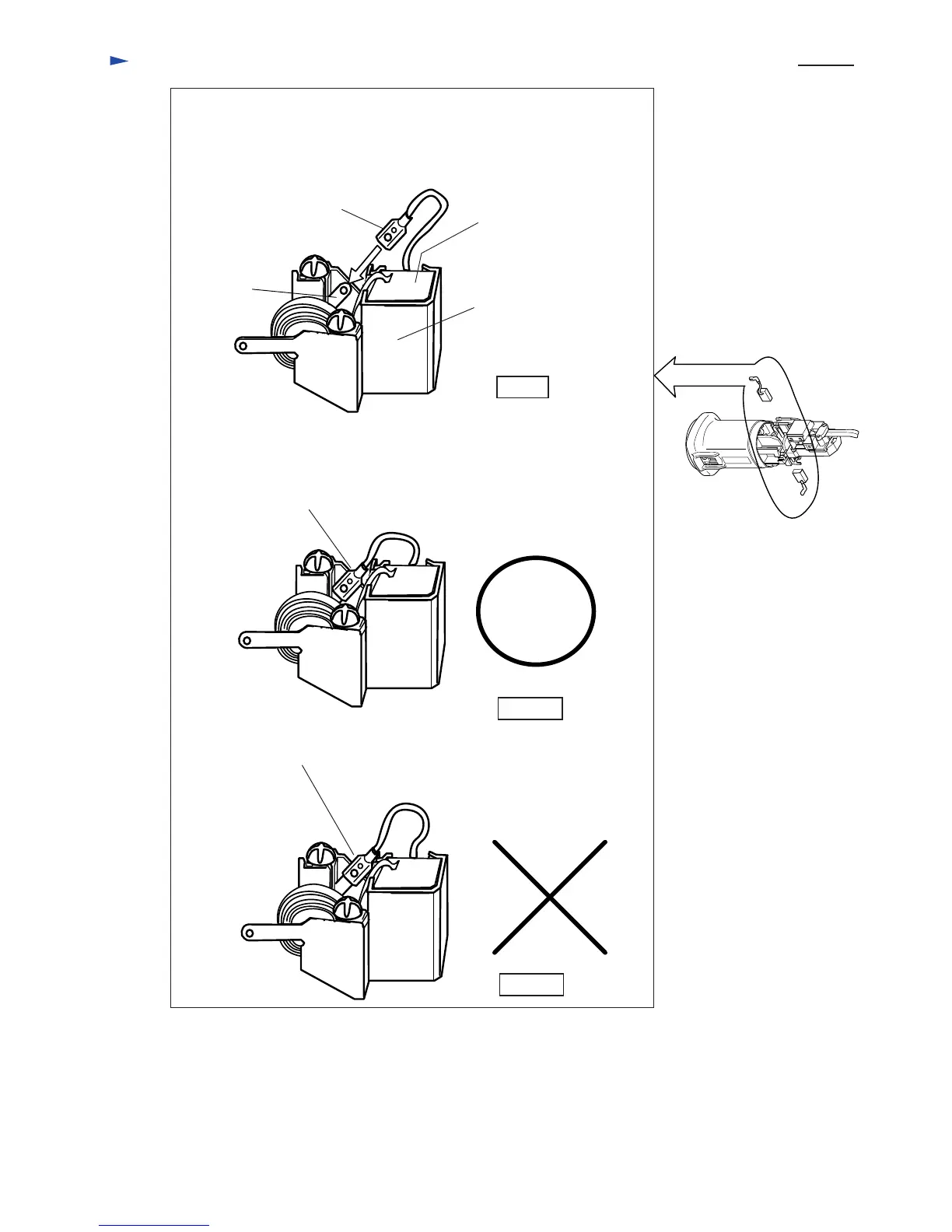

< 6 > Attaching carbon brush
Connect the receptacle of carbon brush with the terminal of brush holder
by pushing in the direction of the arrow, as illustrated in Fig. 5.
Terminal of
brush holder
Receptacle of carbon brush
Carbon brush
Brush holder
Push the receptacle of carbon brush until it stops as illustrated in Fig. 4A.
Incompletely attached receptacle
of carbon brush
Completely attached receptacle
of carbon brush
Fig. 5
Fig. 5A
Fig. 5B
