Makita DCS6421 - Denomination of Components

17
24
2
13
25
14 15
16 17
18 19
3 41
6
7
23
5
8
9
1126
202122
12
10

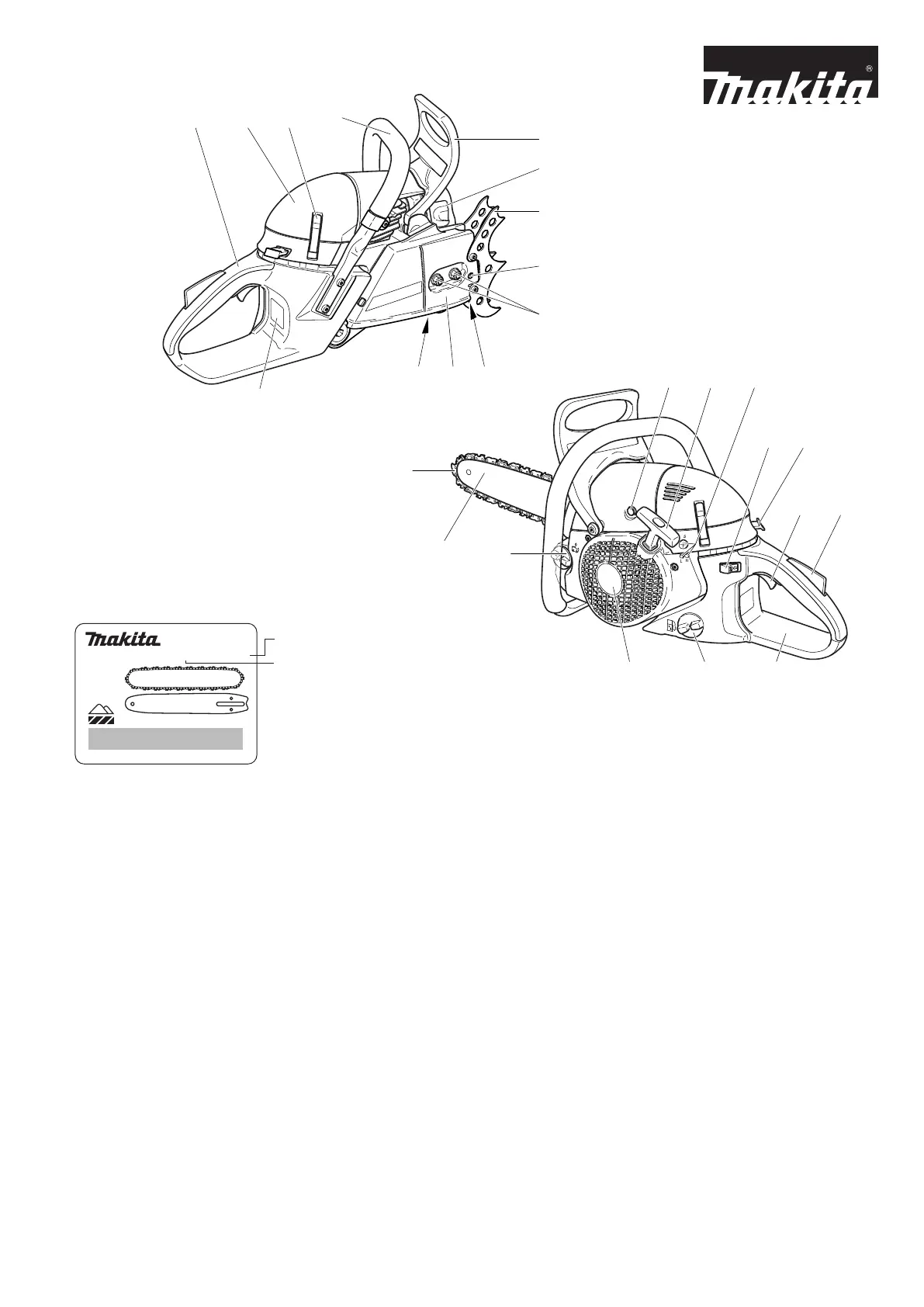

Denomination of components
1 Handle
2 Filter cover
3 Filter hood clip
4 Tubular handle
5 Hand guard (release for chain brake)
6 Mufer with spark arrester screen
7 Spike bar
(toothed stop for holding saw steady against wood)
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Identication plate
13 Decompression valve (option)
14 Starter grip
15 Adjusting screws "S-L-H" for carburetor
16 I/STOP-switch
17 Choke lever
18 Throttle lever
19 Throttle stopper
20 Hand guard
21 Fuel tank cap
22 Fan housing with starting assembly
23 Oil tank cap
24 Guide bar
25 Chain
26 Adjusting screw for oil pump (bottom side)
Indicate when ordering spare parts!
Identicationplate
Serial no.
Year of manufacture
DCS7900
24" (600mm) 0706 123456
445.060.655
038.100.650 Typ 038
528.099.684
22045 Hamburg, Germany
