Makita DFL083F Series User Manual

10 ENGLISH

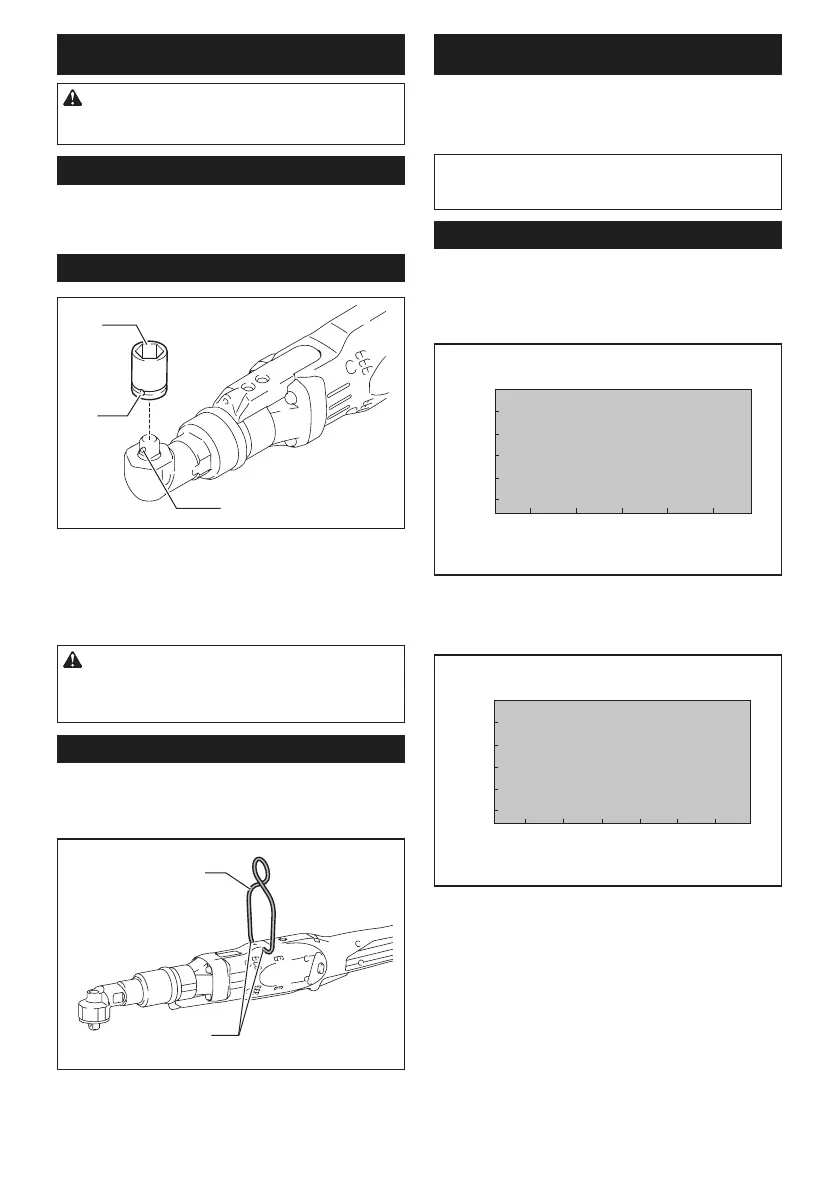

ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Selecting correct socket
There are different types of sockets for some models
depending on applications. Choose and install a correct
socket for your application.
Installing or removing socket
1
3
2
►1. Socket 2. Hole 3. Pin
To install the socket, push it onto the square drive of the
tool with one hand by depressing a pin on the square
drive with another hand until it locks into place. To
remove the socket, simply pull it off depressing the pin
on the square drive.
CAUTION: Before operation, make sure that
the socket is properly locked onto the square
drive. Incomplete attachment of the socket may
cause injury.
Installing hook
Optional accessory
The hook is useful to hang the tool. Install the hook to
the holes on the tool body.
1
2
►1. Hook 2. Hole
OPERATION
Holdthetoolrmlyandplacethesocketoverthebolt
or nut. Then switch the tool on. When the clutch cuts
in, the motor will stop automatically. Then release the
switch trigger.
NOTE: Hold the tool with its square drive pointed
straight at the bolt or nut, or the bolt or nut will be
damaged.
Limits of fastening capacity
Use the tool within the limits of fastening capacity. If you
use the tool beyond the limits, the clutch does not work.
And the tool cannot deliver enough fastening torque.
For model DFL083F
2837
4 5 6
360°
300°
240°
180°
120°
60°
30°
1
3
2
N•m
1. Range of fastening capacity 2. Rotation angle
3. Torque
For model DFL125F
51
2
61
17
8 9
10
360°
300°
240°
180°
120°
60°
30°
1
3
2
N•m
1. Range of fastening capacity 2. Rotation angle
3. Torque
