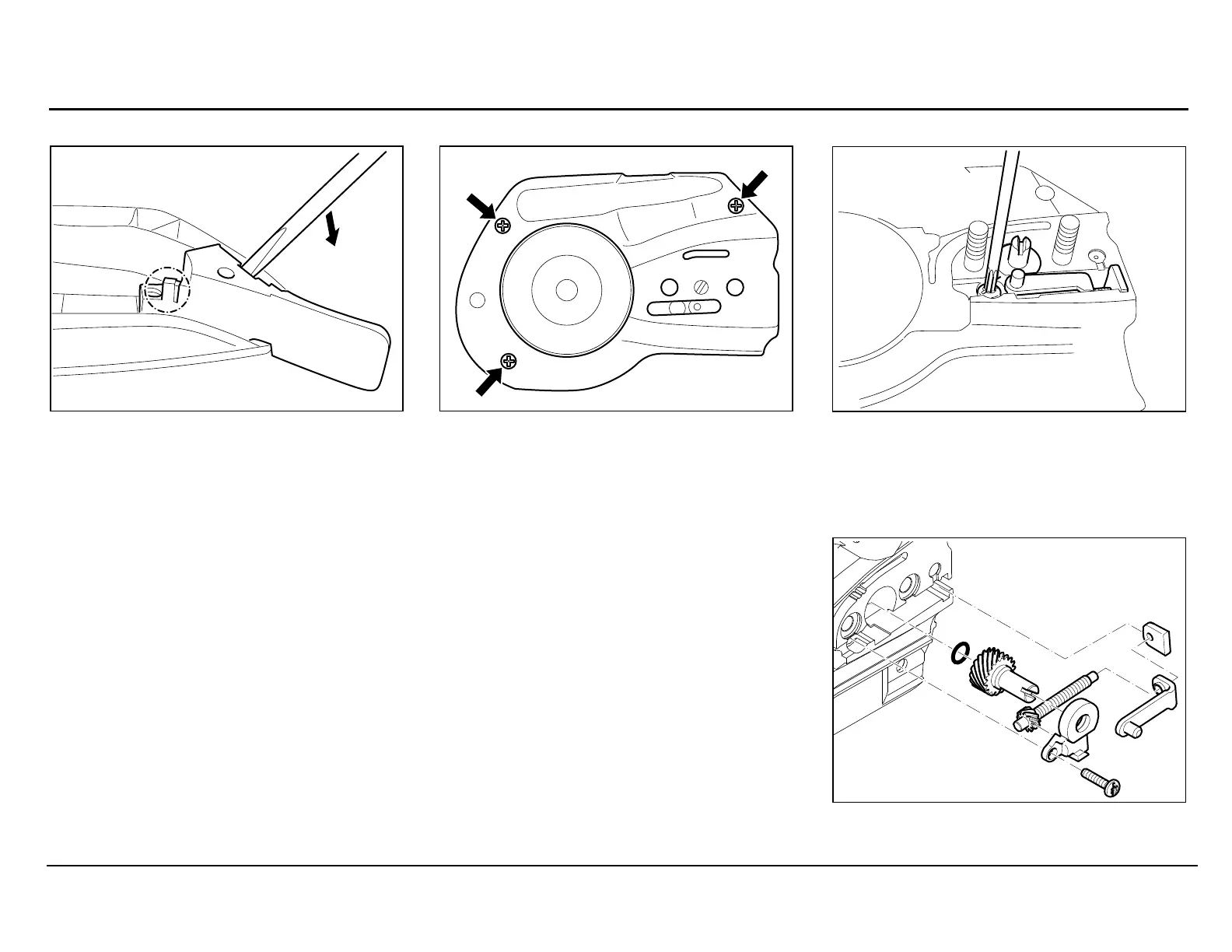

Chip deflector in the sprocket guard
CAUTION: To prevent cuts, wear protective
gloves!
Remove the sprocket guard, bar, and chain.
Use the combination wrench to disengage the
chip deflector, and remove it.
Note for changing the type of chain: If using
a 3/8" saw chain, be sure to first cut out the
the marked portion of the chip deflector 1!
Before converting to a.325” chain it will be
necessary to install a new chip deflector
(957.213.220).
CAUTION: Before removing the cover
plate, first set off the chain brake!
Chain tensioner
Unscrew 3 bolts and remove the cover.
Chain tensioner function
An angled worm drive converts the turns of
the adjustment screw to forward or backward
motion of the tensioning pin.
Grease the spindle and worm gear with multi-
purpose grease (944.360.000).
Unscrew screw and pull chain tensioner up
and out.
Assembly
