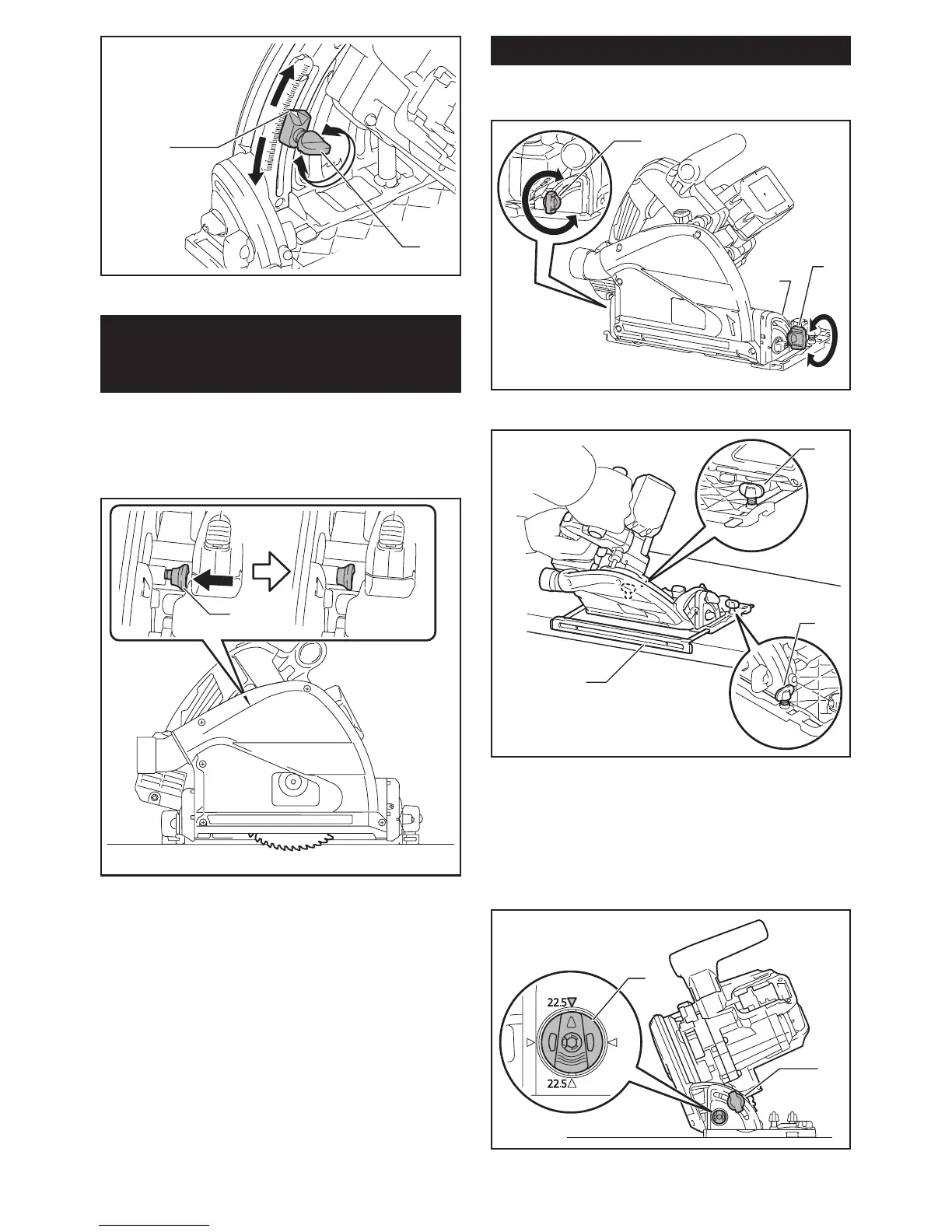

►1. Blade lower limit stopper 2. Clamping screw
Quick stop button for 2 to 3 mm
depth of cut when using guide rail
(optional accessory)
Thistoolhasthequickstopbuttonfor2to3mmdepth
of cut on the gear housing aside the rear handle when
usingguiderail.Thisisusedwhenavoidingsplinteron
the workpiece in the cut. Make a pass of the 2 to 3 mm
rstcutandthenmakeanotherpassofusualcut.
1
►1. Quick stop button
Toobtainthe2to3mmdepthofcut,pushinthequick
stopbuttontowardthesawblade.Thisisconvenientfor
avoiding splinter on the workpiece.
Toreleasethedepthofcutfromthispositionforfree
depthofcut,justpullthebuttonback.
Bevel cutting
Loosen the clamping screws. Set for the desired angle by
tilting accordingly, then tighten the clamping screws securely.
1
1
2
►1. Clamping screw 2. Bevel scale plate
2
1
2
► 1.Subbase(Optionalaccessory)2. Clamping screw
Positive stopper
Thepositivestopperisusefulforsettingthedesignatedangle
quickly.Turnthepositivestoppersothatthearrowonitpoints
22.5°.Loosentheclampingscrewsinfrontandback.Thentiltthe
blade until it stops and secure the base with the clamping screws.
1
2
►1. Positive stopper 2. Clamping screw

Makita DSP600 Specifications

General

Blade Diameter	165 mm
Max Cutting Capacity at 45°	40 mm
No Load Speed	2, 500 - 6, 300 RPM
Voltage	18V
Power Source	Battery
Max Cutting Capacity at 0°	56 mm
Max Cutting Capacity at 48°	38 mm
Bevel Capacity	48°
