Makita ELM3320 User Manual

14 ENGLISH

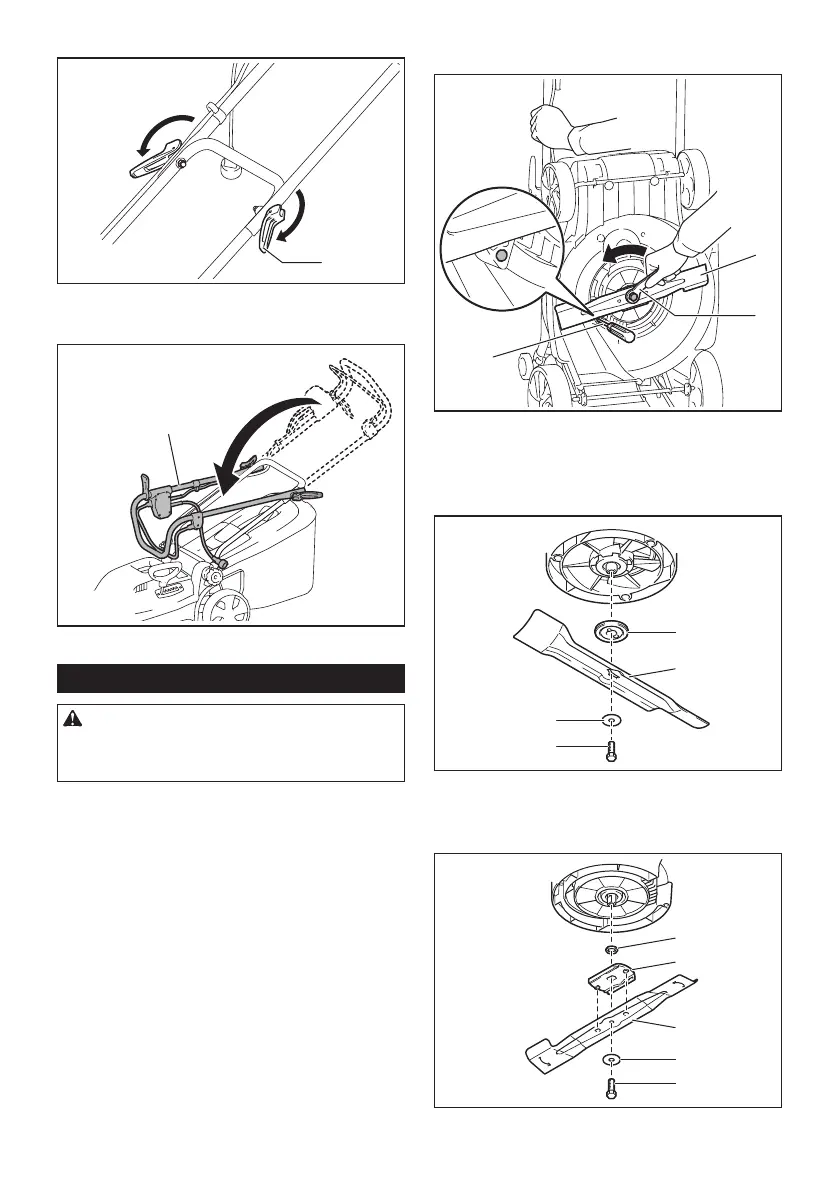

1. Open the levers while holding the upper handle.
1
►1. Lever
2. Fold the upper handle.
1
►1. Upper handle
Replacing the mower blade
CAUTION: Do not use any wrench other than
the standard hex wrench when replacing the
mower blade. Using a different wrench may lead to
over-tighteningorlooseness,whichmaycauseinjury.
1. Unplug the extension cord and stand up the
machine. (Refer to the instructions for storing.)
2.
Insert the pin into the hole, and then hold the handle with
one hand and loosen the bolt with the wrench counterclockwise.
1
2
3
►1. Blade 2. Wrench 3. Pin
3. Remove the mower blade.
For ELM3320
Remove the bolt, washer, mower blade, and bracket in order.
1
2
3
4
►1. Bracket 2. Mower blade 3. Washer 4. Bolt
For ELM3720/ELM4120
Remove the bolt, washer, mower blade, bracket, and spacer in order.
5
4
2
3
1
► 1. Spacer 2. Bracket 3. Mower blade 4. Washer 5. Bolt

Makita ELM3320 Specifications

General

Type	Walk behind lawn mower
Easy to use	Yes
Cutting width	33 mm
Grass catcher	No
Product color	Black, Turquoise
Maximum lawn area	400 m²
Mulching function	-
Handle(s) features	Adjustable
Maximum cutting height	55 mm
Minimum cutting height	20 mm
Number of height positions	3
Power source	AC

Weight and Dimensions

Depth	1230 mm
Width	380 mm
Height	1110 mm
