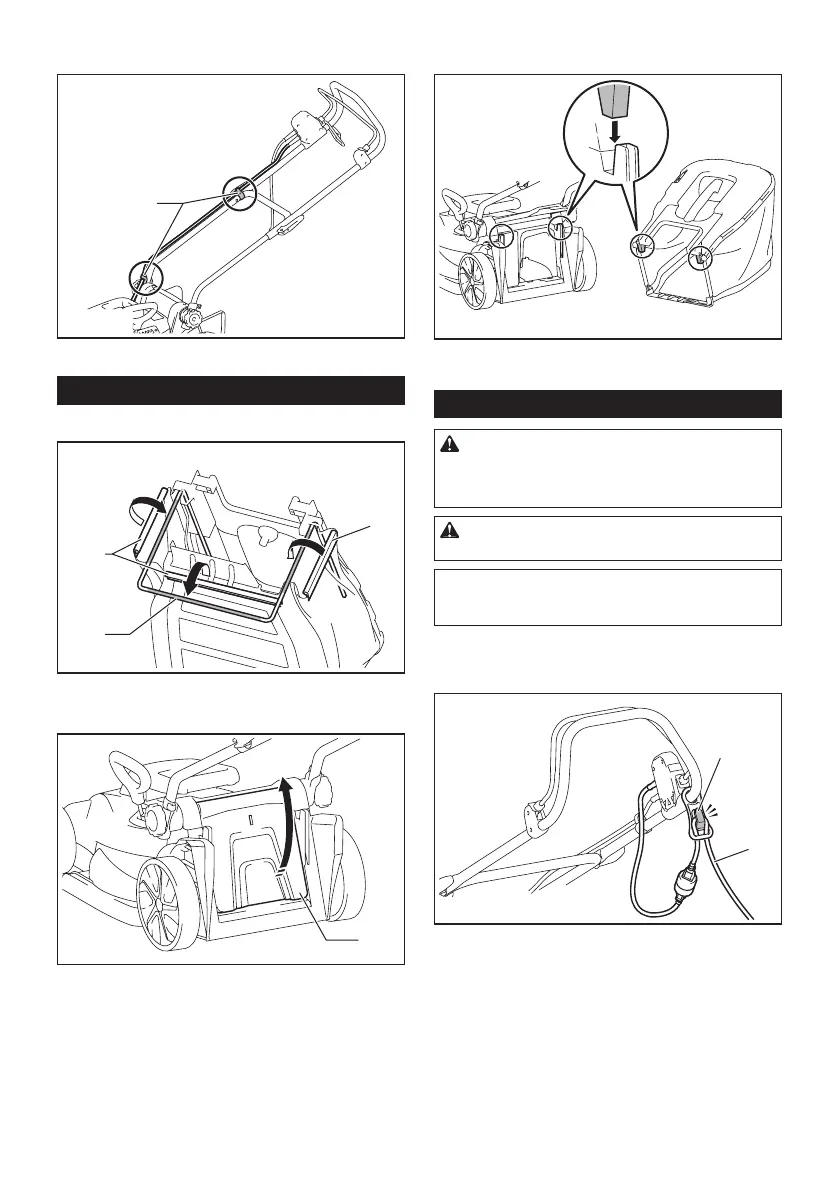

6 ENGLISH
7. Secure the cords with the clamps as shown in the
gure.
1
►1. Clamp
Installing the grass basket
1. Attach the pipes of the grass basket to the frame.
1
1
2
►1. Pipe 2. Frame
2. Open the rear cover.
1
►1. Rear cover
3. Hook the grass basket onto the rear side of the
machine.
To remove the grass basket, perform the installation
procedure in reverse.
Connecting extension cord
WARNING: When connecting the extension
cord to the power plug of the machine, make sure
that the switch lever is released and the cord is
unplugged from the power supply.
WARNING: Do not connect or disconnect the
extension cord with wet hands.
NOTICE: When connecting the extension cord to
the power plug of the machine, be sure to insert it
fully into the socket.
When connecting the extension cord, hook it over the
hookonthehandleasshownintheguretoprevent
inadvertent unplugging by excessive strain on the plug.
1
2
►1. Hook 2. Extension cord
