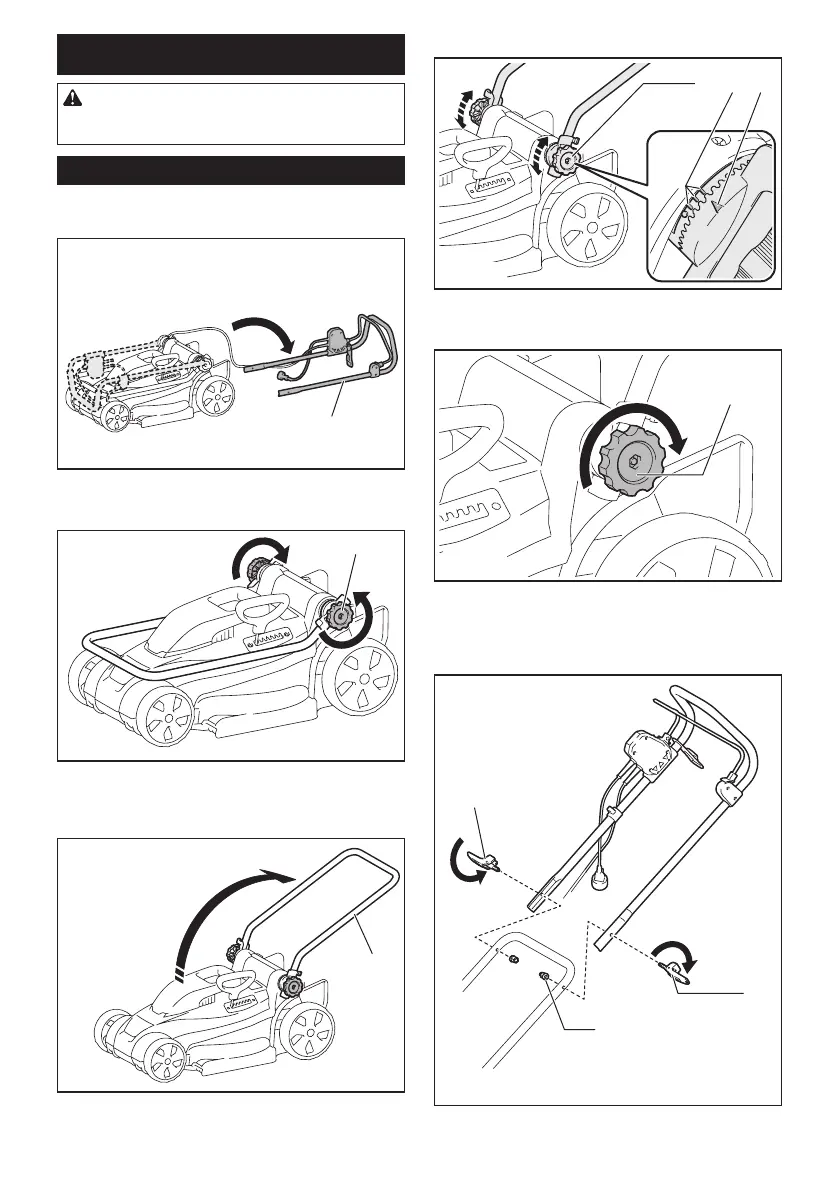

5 ENGLISH
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.
Assembling the handle
1. Unload the upper handle from the main unit of the
machine.
1
►1. Upper handle
2. Loosen the thumb nuts.
1
►1. Thumb nut
3. Widen the handle outside a little, and then raise
the handle.
1
►1. Handle
4.
Adjustthehandleheightbyaligningthearrowwiththemark.
321
►1. Thumb nut 2. Mark 3. Arrow
5. Tighten the thumb nuts.
1
►1. Thumb nut
6. Attach the upper handle by inserting the levers
from the outside of the handle, and then tighten the nuts
with the wrench to secure the handle.
1
1
2
►1. Lever 2. Nut

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Makita ELM3320 and is the answer not in the manual?

Makita ELM3320 Specifications

General IconGeneral
TypeWalk behind lawn mower
Easy to useYes
Cutting width33 mm
Grass catcherNo
Product colorBlack, Turquoise
Maximum lawn area400 m²
Mulching function-
Handle(s) featuresAdjustable
Maximum cutting height55 mm
Minimum cutting height20 mm
Number of height positions3
Power sourceAC
Weight and Dimensions IconWeight and Dimensions
Depth1230 mm
Width380 mm
Height1110 mm
