Repair

[3] -3. Spiral bevel gear [large one], Ball bearings 696ZZ/ 6201DDW

ASSEMBLING

DISASSEMBLING

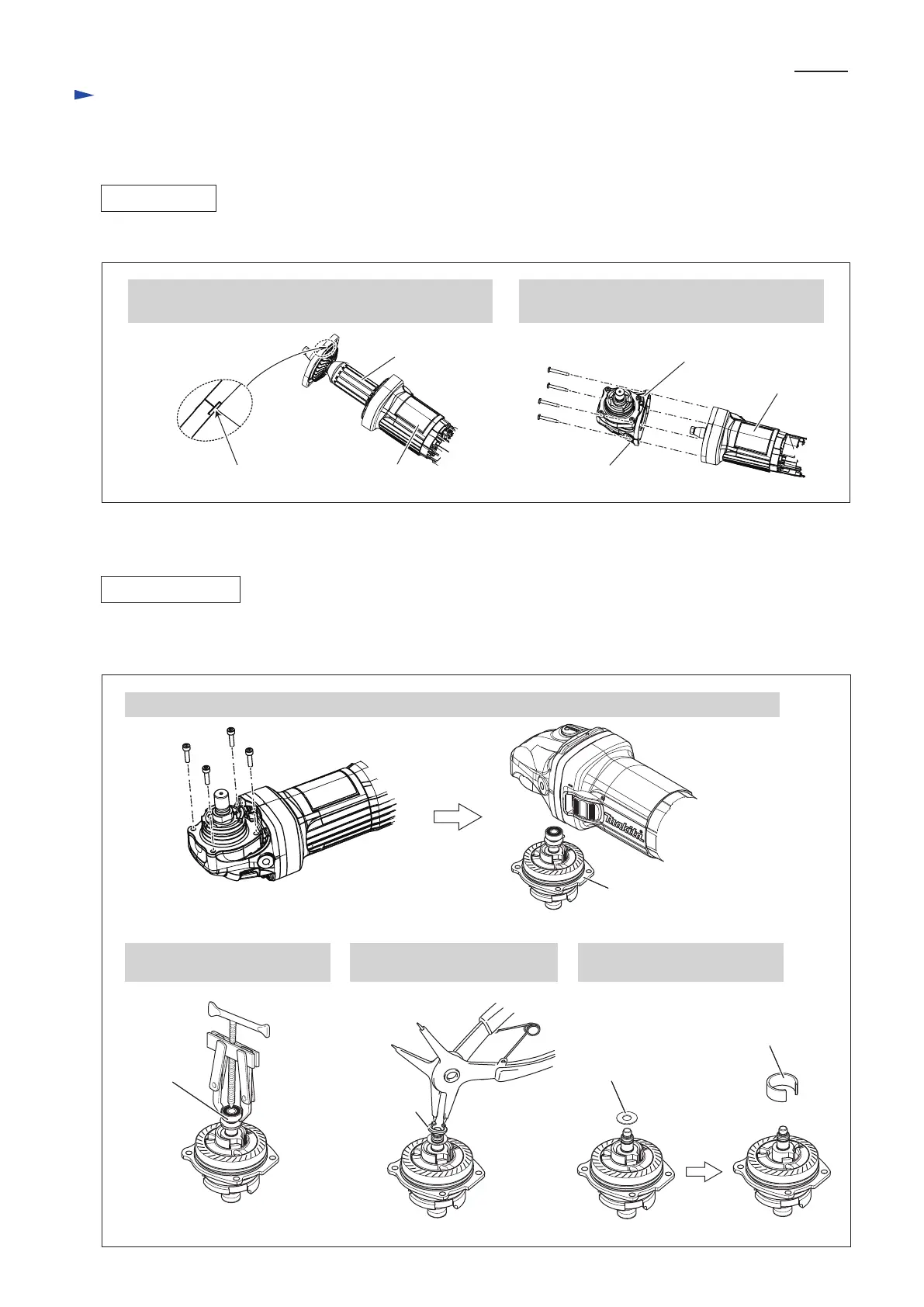

(3) Assemble Gear housing cover with Armature and Gear housing to Motor housing as drawn in Fig. 5.

Note: The gear and the ball bearings can be replaced without disassembling the motor section.

(1) Remove Ball bearing 696ZZ, Retaining ring S-9, Flat washer 10 and C-type plate from Spindle as drawn in Fig. 6.

Fig. 5

Fig. 6

Armature

Notch on Gear housing cover

Name plate

1. Removing four M4x16 Hex socket head bolts, then separate Bearing box section from Gear housing.

1. Assemble Gear housing cover together with Armature

while facing its notch to the same side as Name plate.

2. Assemble Gear housing while facing Spindle

to the same side as the notch and Name plate.

Name plate

Gear housing

Spindle

Bearing box

section

2. Remove Ball bearing 696ZZ

with 1R269.

3. Remove Retaining ring S-9

with 1R291.

4. Remove Flat washer 10.

Then, remove C-type plate.

Ball bearing

696ZZ

Retaining

ring S-9

Flat washer 10

C-type plate.

[3] DISASSEMBLY/ASSEMBLY

[3] -2. Armature, Spiral bevel gear [small one] (cont.)

Makita GA4042C Technical Information
